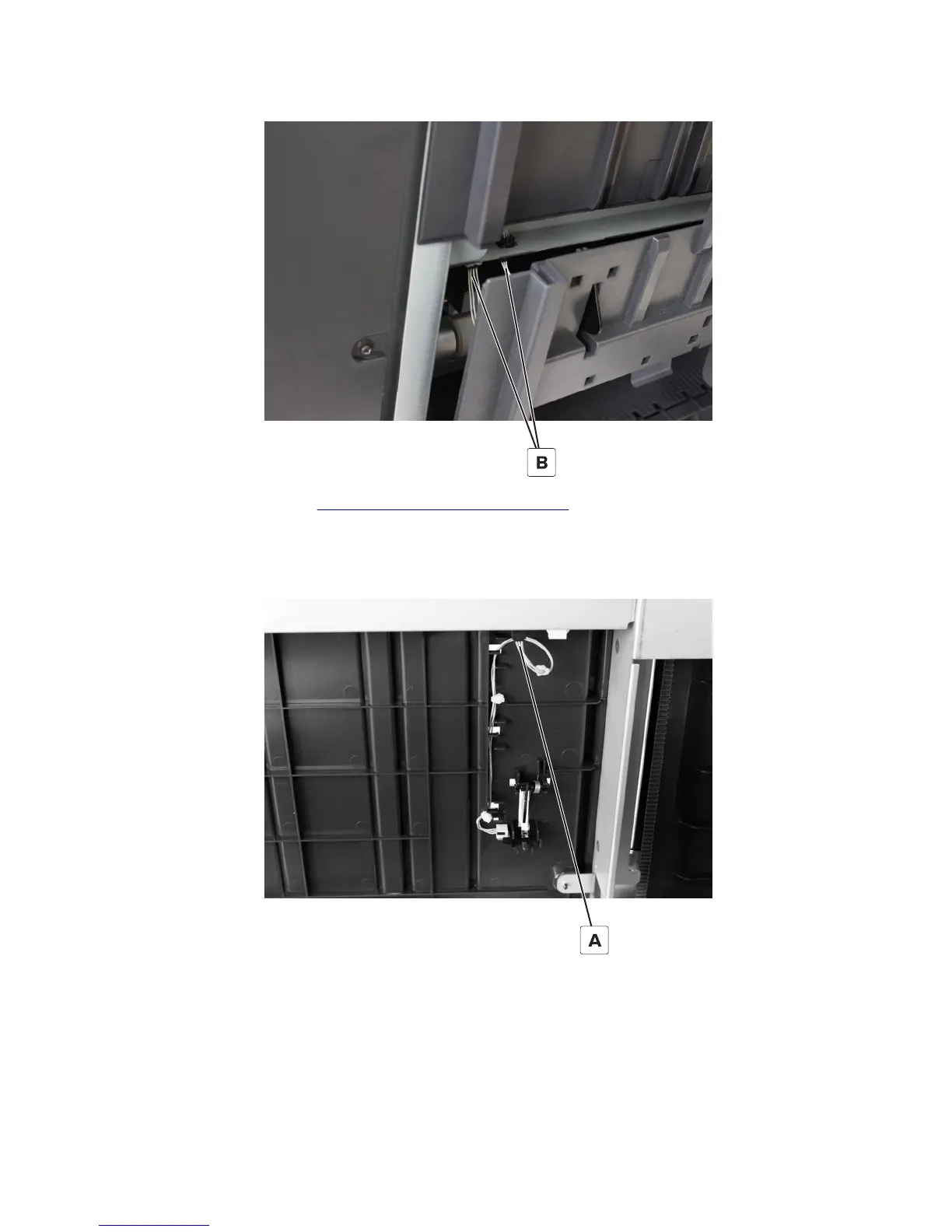

4 Disconnect the two cables (B), and then remove the cover.
5 Remove the HPBF bin bail. See “HPBF bin bail removal” on page 333.
SHPF lower left cover removal
1
From behind the lower left cover, disconnect the cable (A).
4021, 7421
Repair information
345
