Lexmark MS911 - Page 454

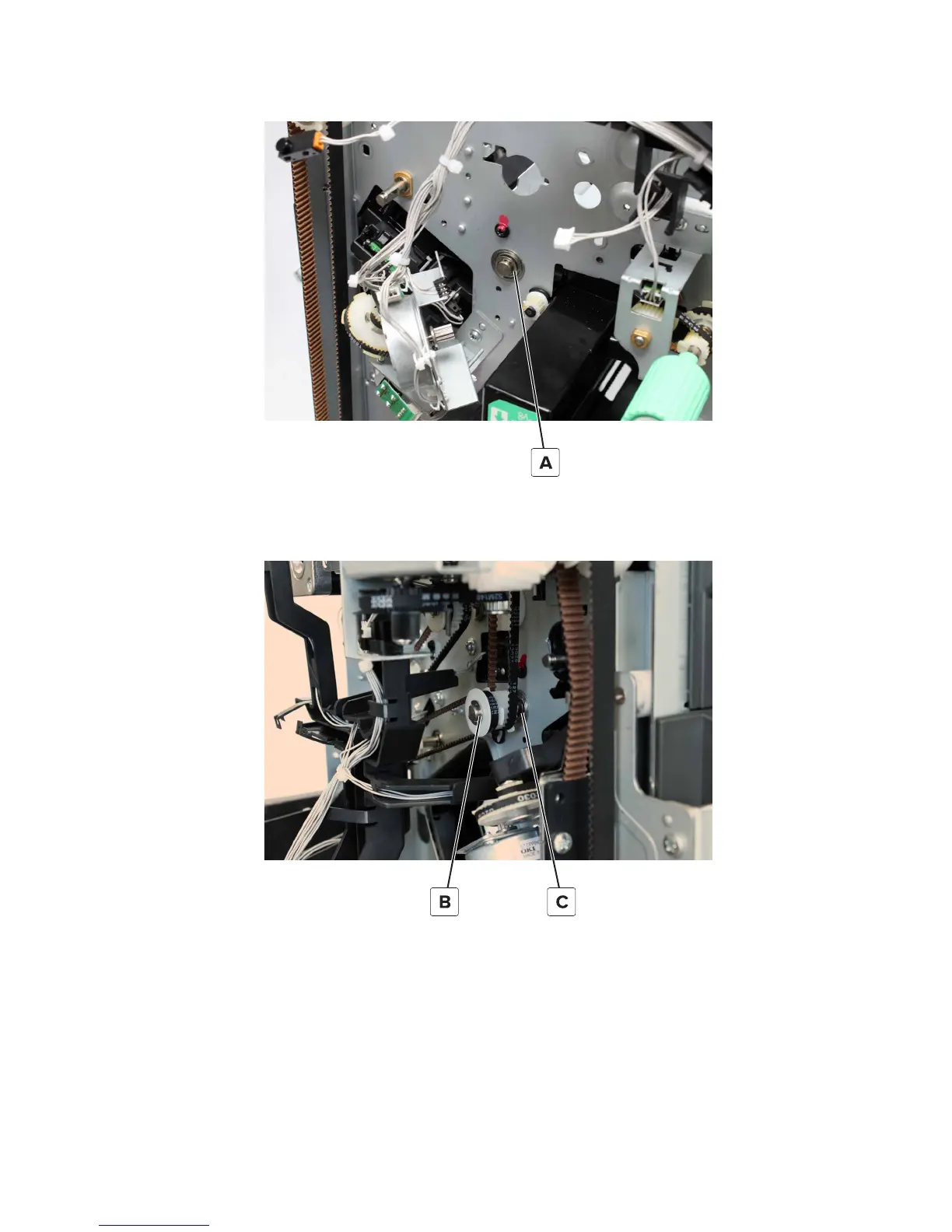

12 Remove the clip (A), and then remove the bearing.
13 Remove the clip (B), and then remove the washer, belt, and gear.
14 Remove the clip (C), and then remove the bearing.
15 Remove the roller.
4021, 7421
Repair information
454
