3 Remove the right cover. See “Booklet maker right cover removal” on page 457.
4 Remove the aligner assembly. See “Booklet maker aligner assembly removal” on page 496.
5 Remove the aligner. See “Booklet maker aligner removal” on page 498.
6 Remove the aligner paper guide, middle. See “Booklet maker aligner middle paper guide removal” on page 499.

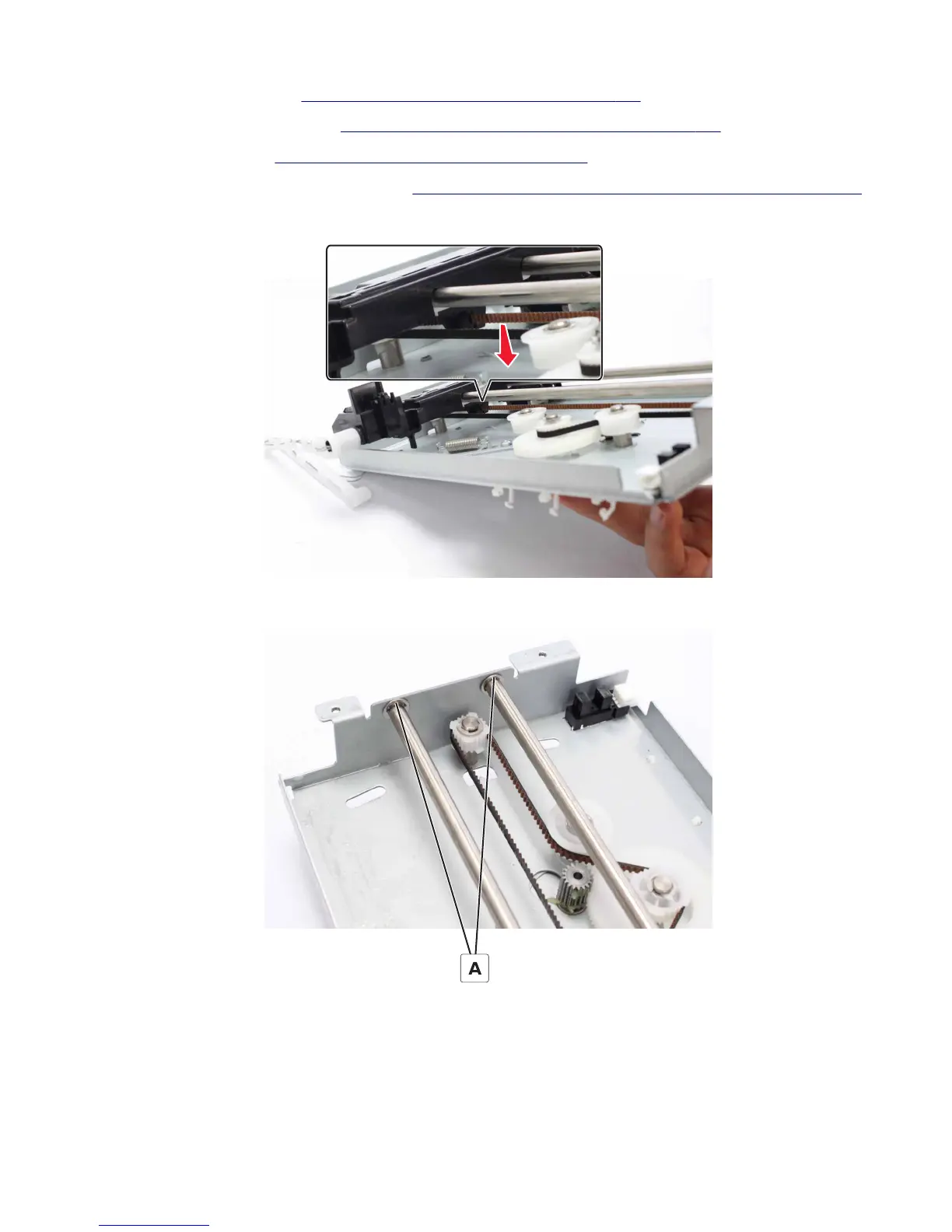

7 Release the belt from the holder.
8 Remove the two clips (A), and then remove the two shafts.
4021, 7421
Repair information
502
