Lexmark MS911 - Page 649

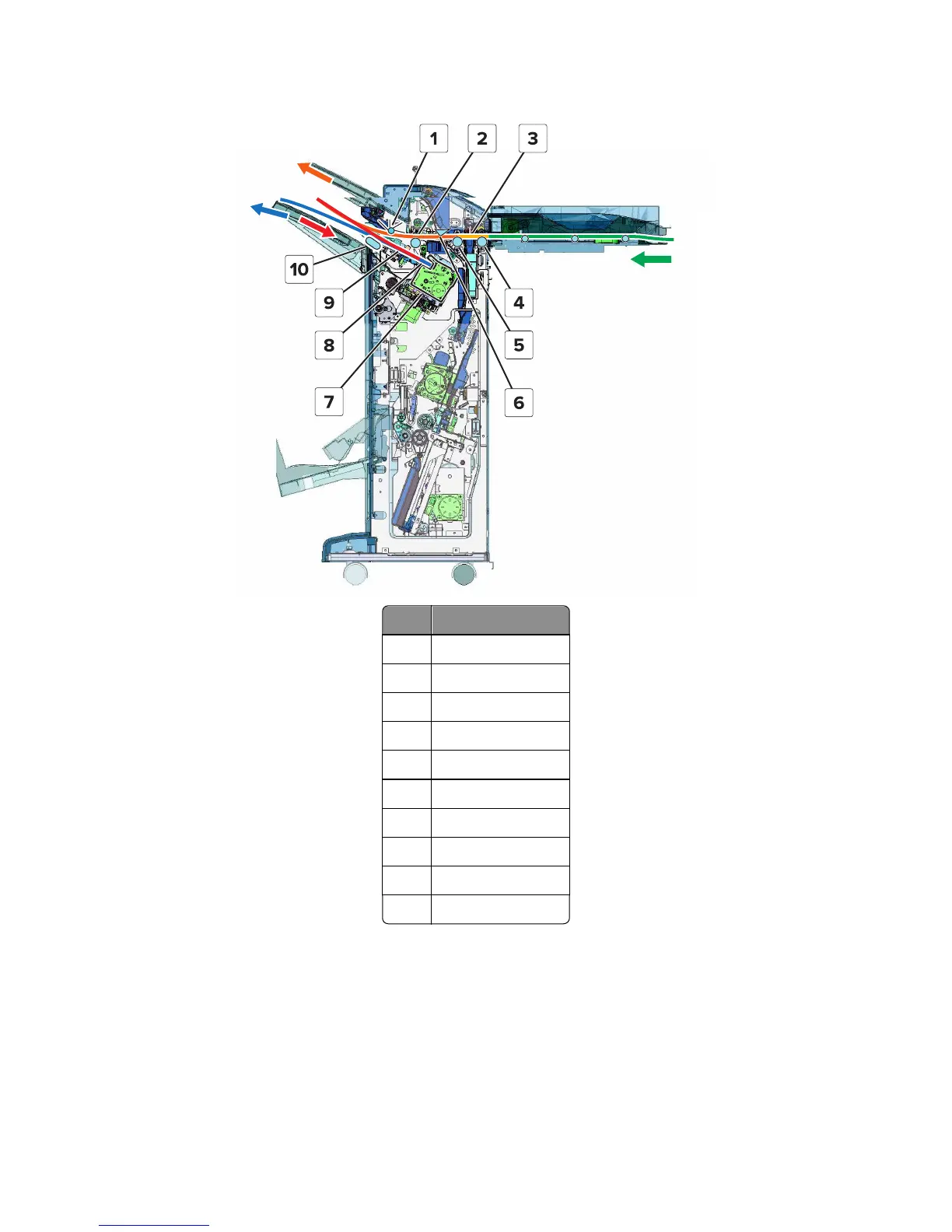

Elevator bin exit section paper path
# Part
1 Paddles
2 Compiler feed roller
3 Punch unit
4 Entrance roller
5 Diverter feed roller
6 Diverter
7 Staple unit
8 Stapling operation
9 Tamper section
10 Aligner roller
Elevator bin exit section paper feed
The diverter swings up to guide the paper to the compiler feed roller. The motor (SHPF transport) drives the diverter
feed roller to feed the paper over the compiler section and to the elevator bin.
4021, 7421
Appendix C: Theory of operation
649
