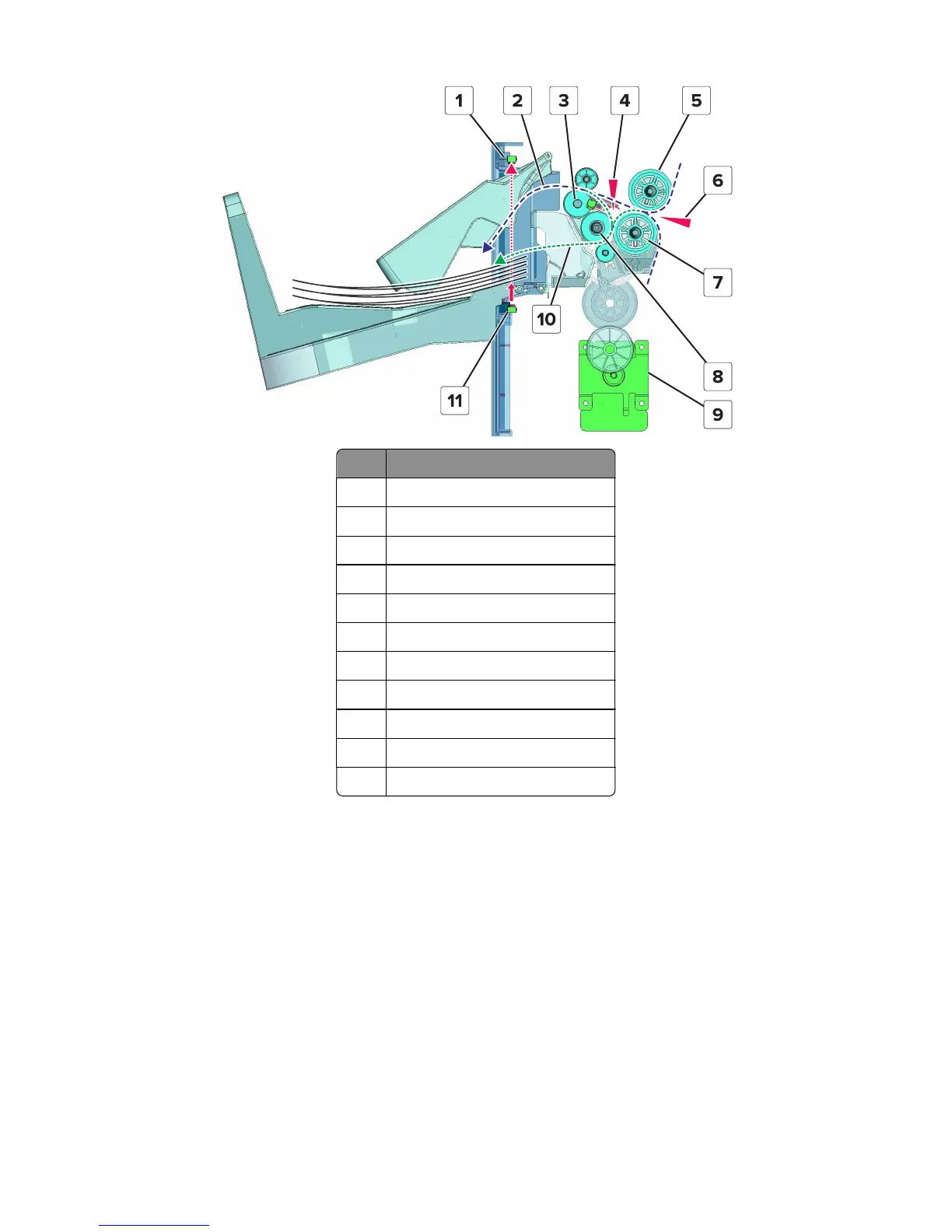

# Part

1 Sensor (HPBF bin empty, receive)

2 Bifold job

3 Booklet maker exit roller

4 Trifold knife

5 Bifold top roller

6 Bifold knife

7 Bifold bottom roller

8 Trifold roller

9 Motor (bifold roller)

10 Trifold job

11 Sensor (HPBF bin empty, transmit)
