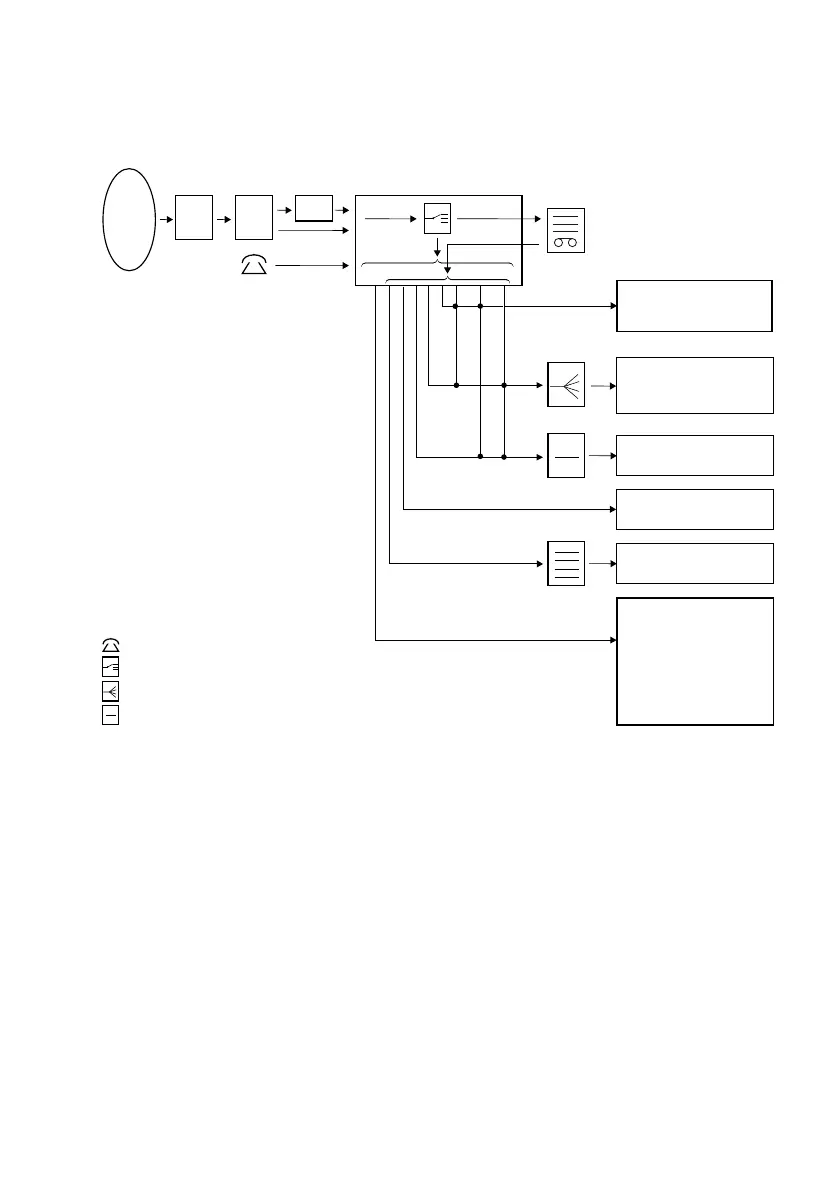

Fig. 58 Destinations of the call distribution element
Alternative Destinations
A call distribution element can be linked with two other call distribution elements for the
routing to alternative destinations:
• One of the call distribution elements is used for the routing to alternative destina-
tions if a call at the original destination is not answered.
• The other call distribution element is used for the routing to alternative destinations
if the original destination is busy.
200
ACD Server
Operator consoles
Key telephones
- Internal users
- Operator consoles
- General bell
- Internal users
- PISN users
- Integrated mobile phones
ACD
Transfer
UG+KT
US+KT
US+UG
KT
UG
User
KT line
User group
Changeover switches
User
Call Distribution
Element
Direct dialling plan
Trunk groups
Network interface
Net-
work
Queue with
announcement
- PSTN overow
- Voice mail
- Mobile/ext. phone integration
- Modem
- IP Remote maintenance (SRM)
- Conference bridge
