Call routing
242
System functions and features as of R4.1
syd-0570/1.2 – R4.1 – 08.2016
[1] One and the same trunk group cannot contain both analogue and digital network interfaces.

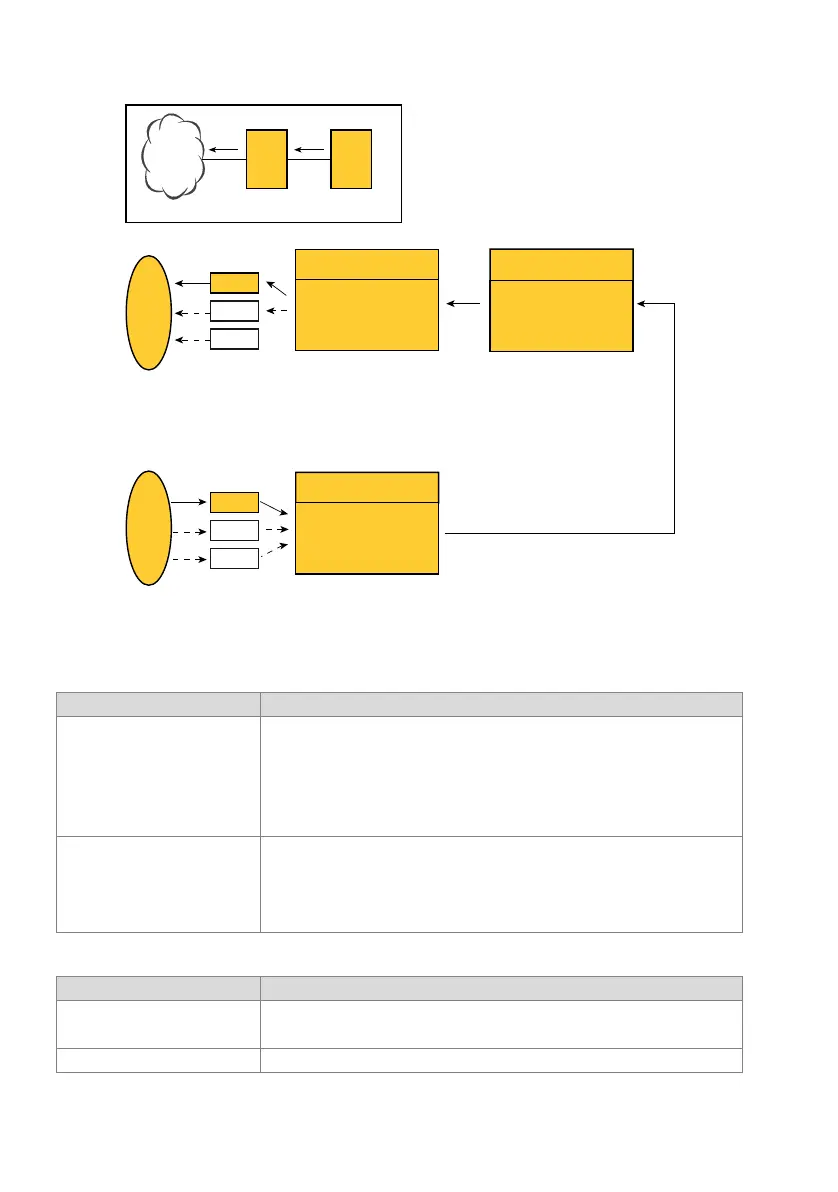

Fig. 118 Transit routing from private leased-line network → public network with NPI = E.164
Tab. 67 Settings for PINX 2 routing parameters
Tab. 68 Settings for PINX 1 routing parameters
Parameter Parameter value
Route 1:
• Trunk group 1 (reference number of one or more trunk group(s))
• Numbering plan identifier (NPI) E.164
• Type of number (TON) Unknown
• Send access code –
Trunk group 1:
• Network interfaces Network interfaces of this trunk group
• Network type Private
• Protocol PSS1 (QSIG)
Parameter Parameter value
Basic setup PISN:
• Transit route: 1 (route reference number for transit calls to the public network)
Route 1:
PINX 1
PINX 1
PINX 2
333 33 33
(E.164)
333 33 33
(E.164)
Network inter-
faces
-> Transit route 1
Route 1
<-Trunk group 1
<- Network interfaces
Trunk group 2 (PSS1)
Trunk group 1 (DSS1)
[1]
PISN
Ex-
change
FXO
BRI-T
PRI
BRI-T
PRI
S
extern
