Mitel 430 - Page 257

Data service
257
System functions and features as of R4.1
syd-0570/1.2 – R4.1 – 08.2016
Tab. 75 Routing parameter settings
Routing to a data-service individual destination
If in the data-service destination table Individual destination is activated as the destina-
tion for a data service type, the call is routed to the destination entered under Data ser-
vice destination table.

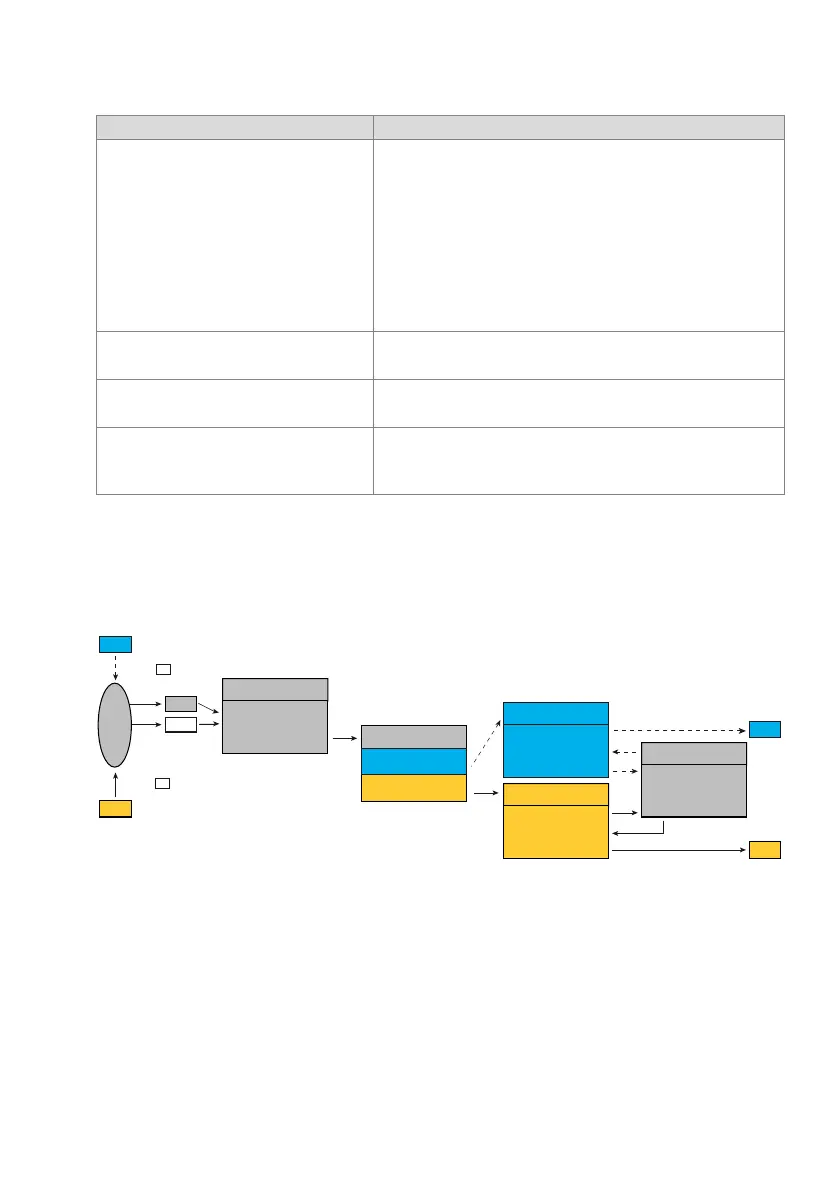

Fig. 128 Incoming data-service routing from the public network with direct dialling to a data-service
individual destination
Parameter Parameter value
Trunk group 1:
• Network interfaces Network interfaces in this trunk group
• Max. incoming calls Number of calls allowed simultaneously
• Maximum simultaneous connections Number of connections allowed simultaneously
• Network type Public
• Protocol DSS1
• DDI plan 1
• Call Distribution Element 1 (relevant only if there is no suitable DD number)
Direct dialling plan 1:
• Direct dialling number 20 2 (reference number of a call distribution element)
Call distribution element 2:
• Data-service destination table 2 (reference number of the data-service destination table)
Data-service destination table 2:
• Data service Fax 4 220 (phone number of the data-service destination, Fax 4 in the
example)
222 22 10
222 22 20
PC
PC
PC
PC
220
210
2.
2.
3.
3.
1.
1.
DD destination table 2
Call distribution
element 2
Call distribution
element 1
Direct dialling plan 1
Trunk group 1 (DSS1)
Ex-
change
BRI-T
PRI
-> Direct dialling plan 1
DDI no. 10
-> Call distribution element 1
DDI no. 20
-> Call distribution element 2
-> DD individual destina-
tion
-> DD destination table 2
User 210
->
DD destination table 2
-> DD individual destina-
tion
User 220
Transparent B-channel
-> DD individual
destination
