Mitel 430 - Page 258

Data service
258
System functions and features as of R4.1
syd-0570/1.2 – R4.1 – 08.2016
Tab. 76 Routing parameter settings
The call is also routed to this destination if no data-service destination table is allocated
in the call distribution element:

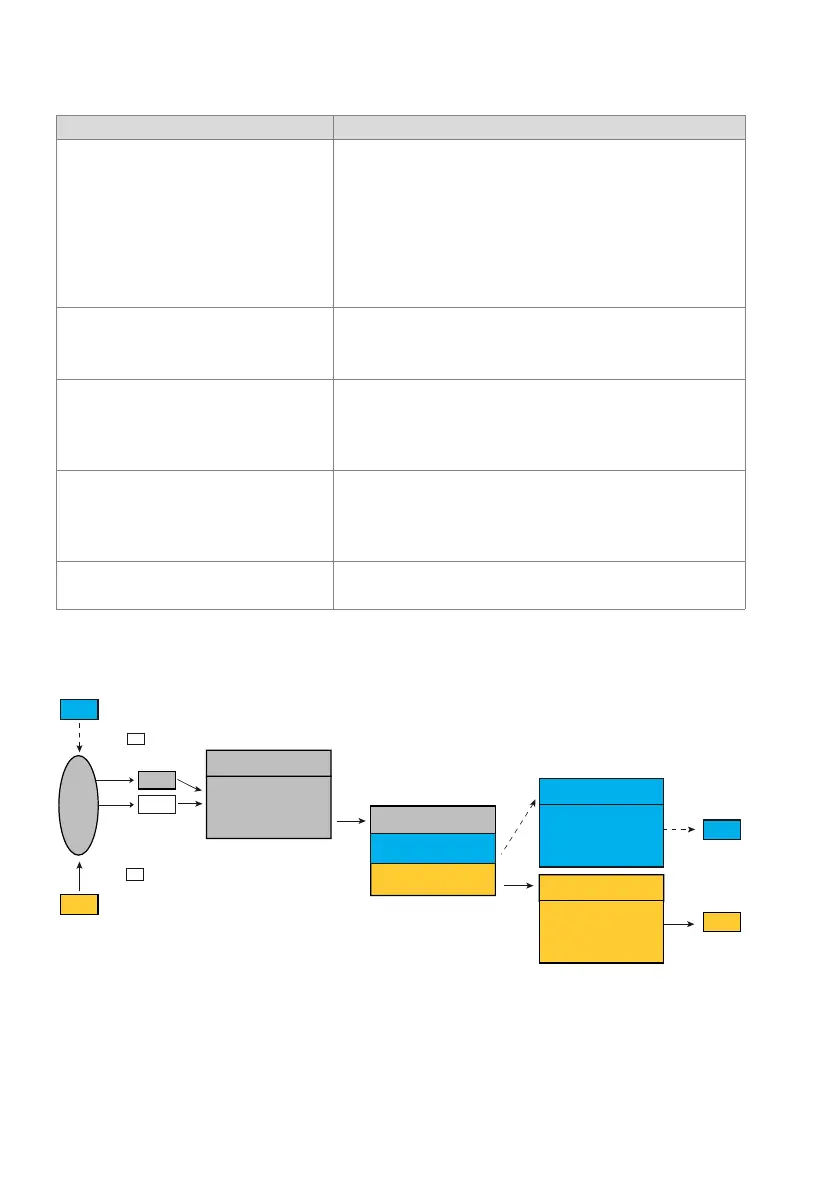

Fig. 129 Incoming data-service routing from the public network with direct dialling to a data-service
individual destination but without entry in a data-service destination table
Parameter Parameter value
Trunk group 1:
• Network interfaces Network interfaces in this trunk group
• Max. incoming calls Number of calls allowed simultaneously
• Maximum simultaneous connections Number of connections allowed simultaneously
• Network type Public
• Protocol DSS1
• DDI plan 1
Direct dialling plan 1:
• Direct dialling number 10 1 (reference number of a call distribution element)
• Direct dialling number 20 2 (reference number of a call distribution element)
Call distribution element 1:
• Data-service destination table 2 (reference number of the data-service destination table)
• Data-service individual destination 210 (phone number of the data-service individual destination, in this
instance PC 210)
Call distribution element 2:
• Data-service destination table 2 (reference number of the data-service destination table)
• Data-service individual destination 220 (phone number of the data-service individual destination, in this
instance PC 220)
Data-service destination table 2:
• Data service type B channel transparent Data-service individual destination (of the call distribution elements)
222 22 10
222 22 20
PC
PC
PC
PC
220
210
Direct dialling plan 1
Trunk group 1 (DSS1)
Ex-
change
BRI-T
PRI
-> Direct dialling plan 1
DDI no. 10
-> Call distribution element 1
DDI no. 20
-> Call distribution element 2
-> DD individual destina-
tion
-> DD destination table 2
User 210
Call distribution
element 2
Call distribution
element 1
-> DD destination table 2
-> DD individual destina-
tion
User 220
