6.1.1.2 Site to Site with "Full Tunnel" enabled

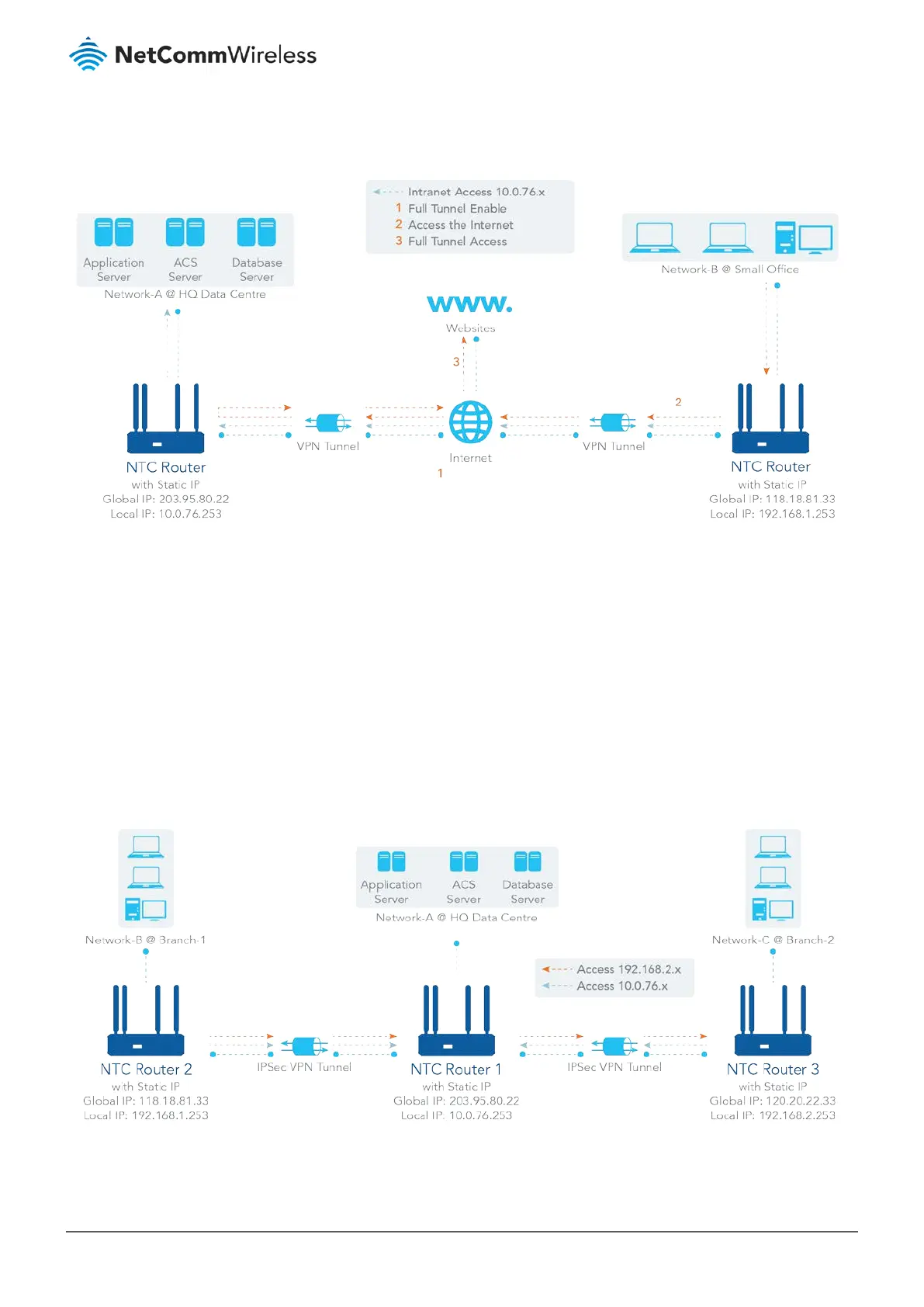

Figure 233 – Site to Site with Full Tunnel enabled
In a "Site to Site" scenario, client hosts at the remote site can access the enterprise resources on the Intranet of the HQ
gateway via an established IPSec tunnel, as described above. However, Internet access requests from the remote site still go
through its regular WAN connection. If you want all packets from the remote site to be routed via this IPSec tunnel, including
HQ server access and Internet access, you can enable the “Full Tunnel" setting. As a result, every time users access the
Internet or the HQ server, all traffic is routed through the secure IPSec tunnel and routed by the Security Gateway in the
control centre.
6.1.1.3 Site to Site with "Hub and Spoke" mechanism
Figure 234 – Site to Site with Hub and Spoke mechanism
