7.1.2.1 Scenario - Managing deployed gateways through an ACS Server

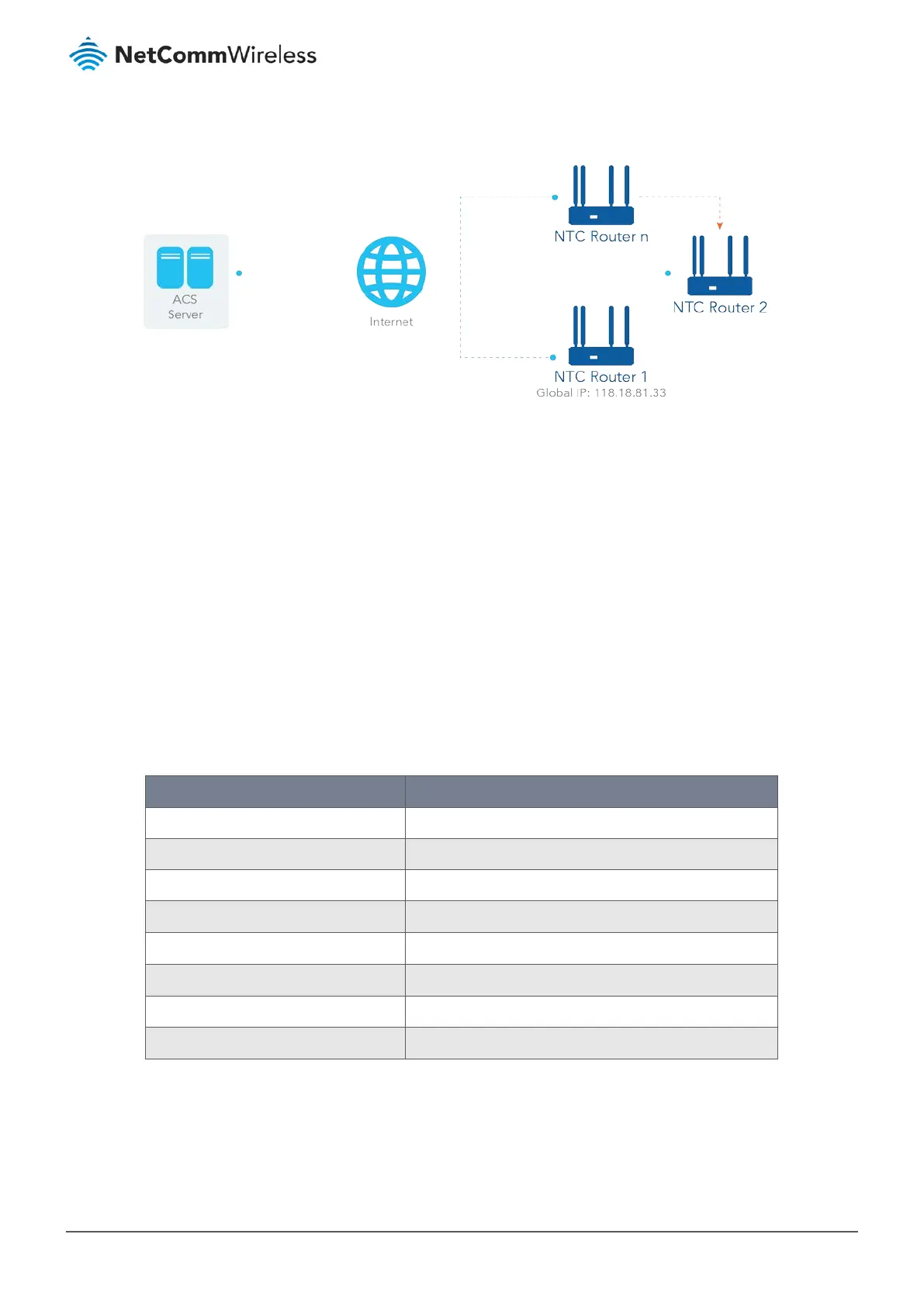

Figure 312 – Managing deployed gateways through an ACS Server
Scenario Application Timing
When the enterprise data centre wants to use an ACS server to manage remote routers geographically distributed elsewhere
in the world, the routers in all branch offices must have an embedded TR-069 agent to communicate with the ACS server so
that the ACS server can configure, upgrade firmware and monitor these gateways and their corresponding Intranets.
Scenario Description
The ACS server can configure, upgrade the firmware and monitor these routers. Remote gateways contact the ACS server for
jobs to do in each time period. The ACS server can ask the gateways to execute some urgent jobs.
Parameter Setup Example
The following tables list the parameter configuration as an example for Router 1 in the above diagram with "TR-069"
enabled. Use default values for those parameters that are not mentioned in the tables.
Configuration Path
[TR-069]-[Configuration]
TR-069
■ Enable
ACS URL http://qantc.acslite.com/cpe.php
ACS User Name
ACSUserName
ACS Password
ACSPassword
ConnectionRequest Port
8099
ConnectionRequest User Name
ConnReqUserName
ConnectionRequest Password
ConnReqPassword
Inform
■ Enable Interval 900
Scenario Operation Procedure
In the diagram above, the ACS server can manage multiple gateways on the Internet. “Router 1" is one of them and has
118.18.81.33 IP address for its WAN-1 interface.
