3.3.1.3 WDS Hybrid Mode
WDS Hybrid mode includes both WDS and AP Router mode. WDS Hybrid mode can act as an access point for its WiFi Intranet
and a WiFi bridge for its wired and WiFi Intranets at the same time. This mode allows you to build up a large wireless network
in a large space like airports, hotels or school campus.
Figure 109 – WiFi Configuration - WDS Hybrid Mode

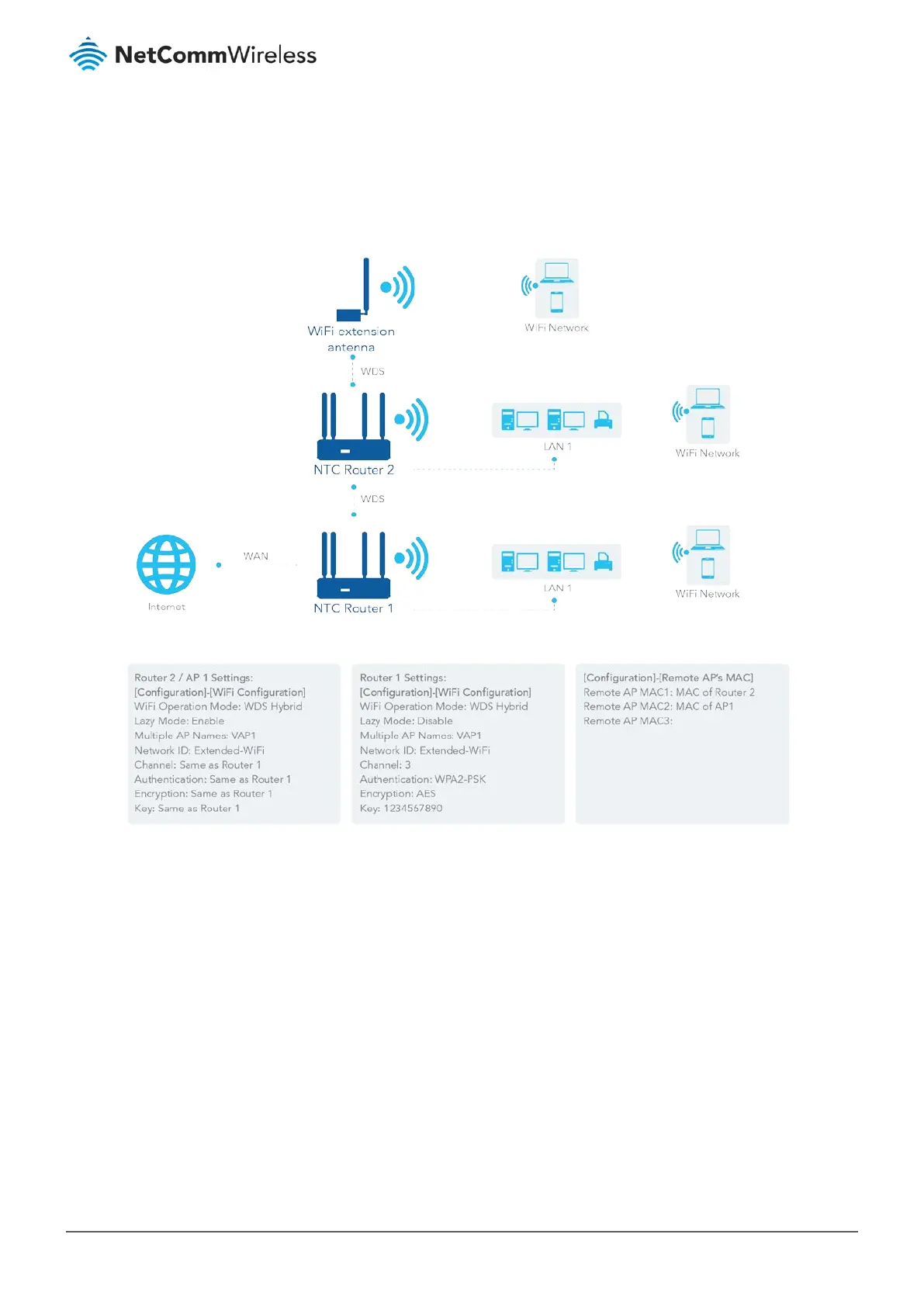

The diagram above illustrates Gateway 1, Gateway 2 and AP 1 connected by WDS. Each gateway has access point
functionality for WiFi client access. Gateway 1 has a DHCP server to assign IP addresses to each of the client hosts. All
gateways and AP are running in WDS hybrid mode. To setup WDS hybrid mode, you must fill all configuration items similar to
that of AP-router and WDS modes.
