2.3 Security

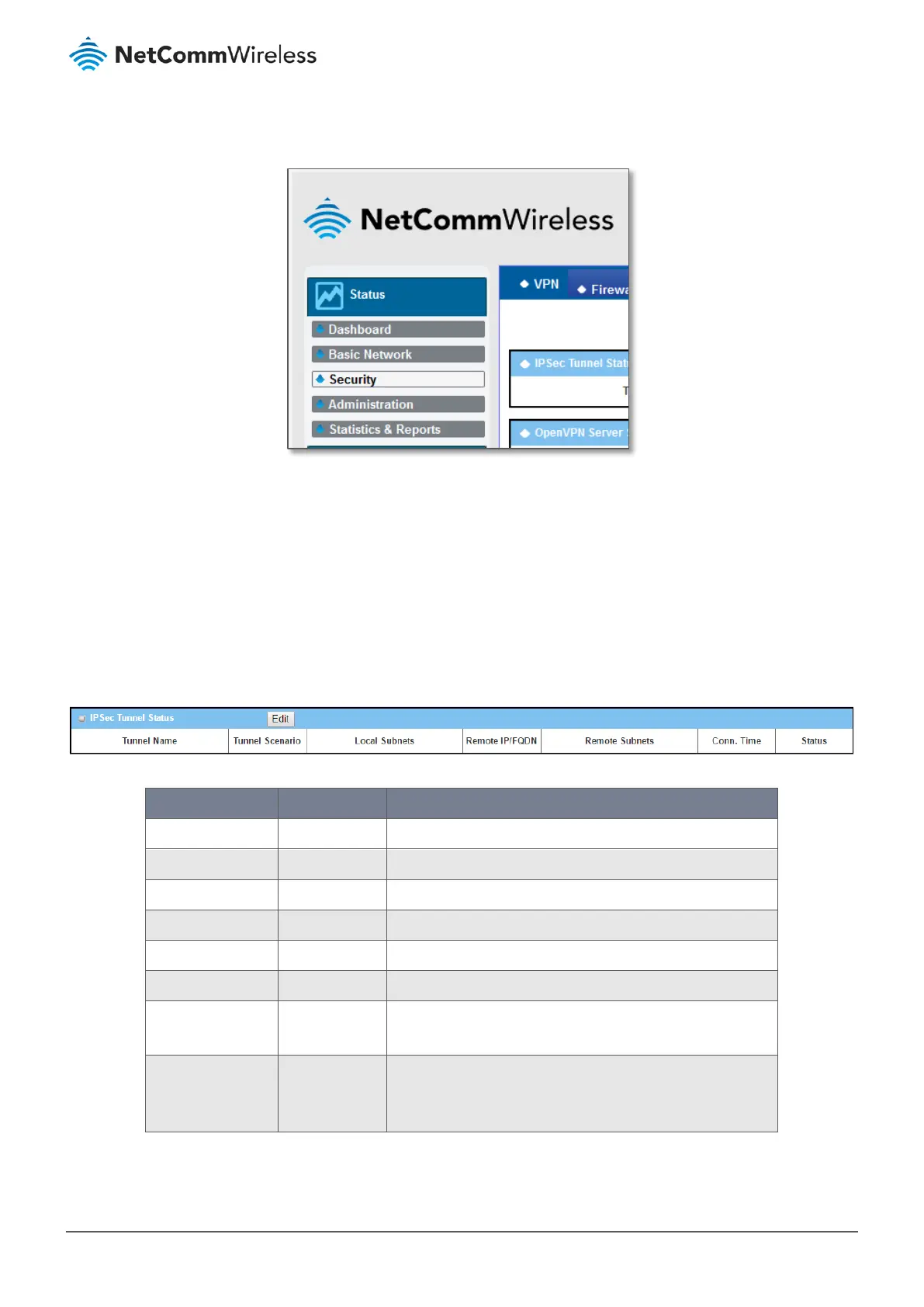

Figure 22 – Security menu item
2.3.1 VPN Status
Navigate to the Status > Security > VPN tab.
The VPN Status widow shows the overall VPN tunnel status.
IPSec Tunnel Status
IPSec Tunnel Status windows show the configuration for establishing IPSec VPN connection and current connection status.
Figure 23 – IPSec Tunnel Status
Item Value setting Description
Tunnel Name System data. Displays the tunnel name you have entered to identify.
Tunnel Scenario System data. Displays the Tunnel Scenario specified.
Local Subnets System data. Displays the Local Subnets specified.
Remote IP/FQDN System data. Displays the Remote IP/FQDN specified.
Remote Subnets System data. Displays the Remote Subnets specified.
Conn. Time System data. Displays the connection time for the IPSec tunnel.
Status System data. Displays the Status of the VPN connection: Connected,
Disconnected, Wait for traffic, or Connecting
Edit Button Button Click on Edit Button to change IPSec setting, the web-based
utility will take you to the IPSec configuration page. (Security >
VPN > IPSec tab)
Table 15 – IPSec Tunnel Status
