Item Notes Description
Edit Button Click the Edit button to make changes to the client in the GRE Rule Configuration
window .
Select Checkbox Click  Select on one or more tunnel rules and then click the Delete button to
permanently remove them from the list.
Table 167 – GRE Tunnel List
When Add or Edit button is applied, the GRE Rule Configuration window will appear:

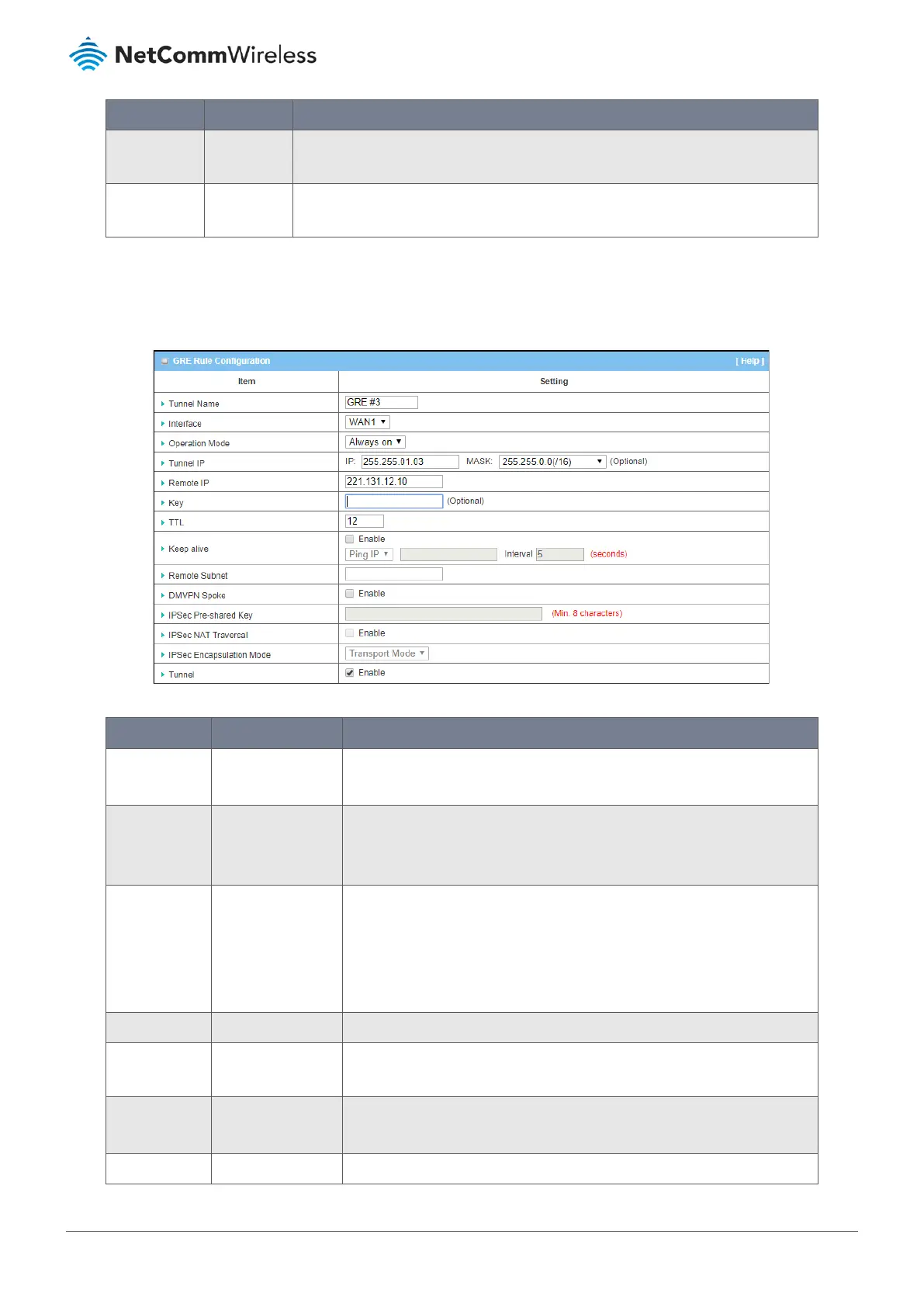

Figure 277 – GRE Rule Configuration
Item Notes Description
Tunnel Name Mandatory field.
1 - 32 characters
Add a meaningful name.
Interface Mandatory field.
WAN-1 is the
default setting.
Select the interface on which GRE tunnel is to be established.
It can be via either the WAN and LAN interface32- 32.
Operation
mode
Mandatory field.
Always on is the
default setting.
Define the operation mode for the GRE Tunnel:
Always On , or Failover
If this tunnel is set as a Failover tunnel, you need to further select a
primary tunnel from which to failover to.
Note – Failover mode is not available for the router with single
WAN.
Tunnel IP Optional field. Enter the tunnel IP address and corresponding subnet mask.
Remote IP Mandatory field. Enter the Remote IP address of remote GRE tunnel router. Normally this
is the public IP address of the remote GRE router.
Key Optional field. Enter the Key for the GRE connection.
Value Range: 0 - 9999999999
TTL Mandatory field. Specify TTL hop-count value for this GRE tunnel.
