12 ProSYS Installation and Programming Manual
♦ Super heterodyne technology
♦ Programmable supervision time
♦ Tamper detection
♦ Low battery in transmitters detection
♦ Signal jamming indication
♦ Programmable supervision time
Partitions/Areas
♦ Up to 8 independent partitions/areas
♦ Any zone can be assigned to any partition/area
♦ Each partition/area supports both zone sharing and cross zoning.
♦ Each partition/area can be assigned with its own account number
Groups
Groups are combined zones within a partition/area that are used for partial arming.
♦ Up to four groups of zones can be defined for each partition/area.
♦ Group arming is performed by using the Function keys on the keypad (A, B, C, and D).
Each key represents a different group of zones.
♦ Each zone can be assigned to any of the 4 groups
♦ Users can arm any of the four groups individually
♦ Group setting is performed by using the function keys on the keypad or using a keyfob
Keypads
The ProSYS can support up to 16 keypads, with a choice of four styles (LCD, two LED types,
and one LCD proximity type) from which virtually all system features can be accessed.

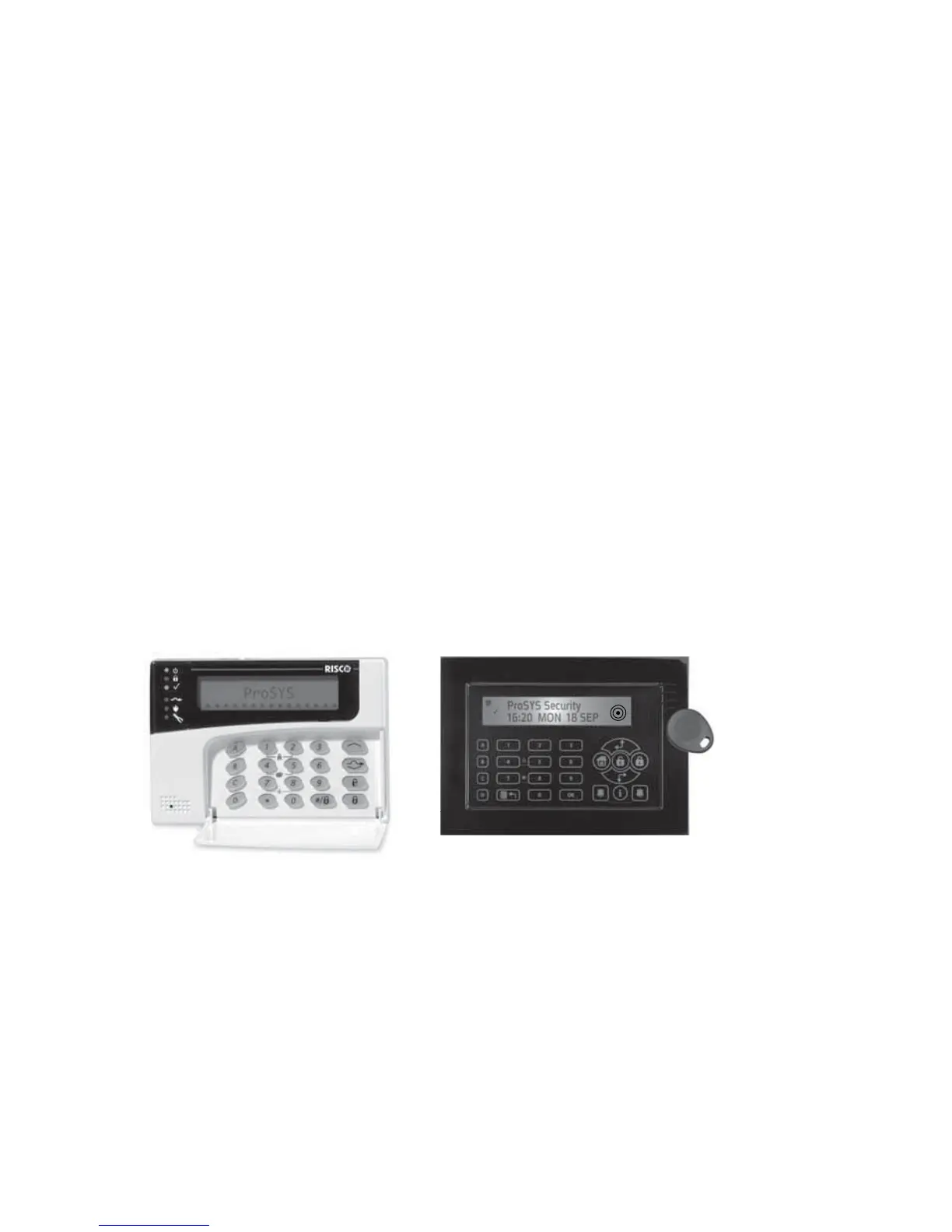

Figure 2: LCD Keypad
Each keypad is equipped with:
♦ Three Emergency Key zones (Panic, Fire, and Auxiliary Emergency)
♦ The ability to produce a Duress (Ambush) Code
♦ Double tamper-protected
♦ Internal buzzer
♦ Audible feedback for keypad operations
♦ Easy-to-use hot-key sequences for simple zone bypassing
♦ A one-key Quick-Arm feature for both "Stay" and "Away"
♦ In partitioned systems, keypads can be selectively assigned to specific partitions
♦ 4 function keys (A,B,C,D) can be programmed to carry a sequence of commands
