16 ProSYS Installation and Programming Manual
Chapter 2 Mounting and Wiring the
Main Panel
This chapter covers the first two steps of the ProSYS installation procedure, as
follows:
Step 1: Mounting the Main Panel, below
Step 2: Wiring the Main Panel, page 18
Step 1: Mounting the Main Panel
The ProSYS Main Panel . should be installed inside a metal box Attach the box to the
wall using the proper hardware, as shown below.

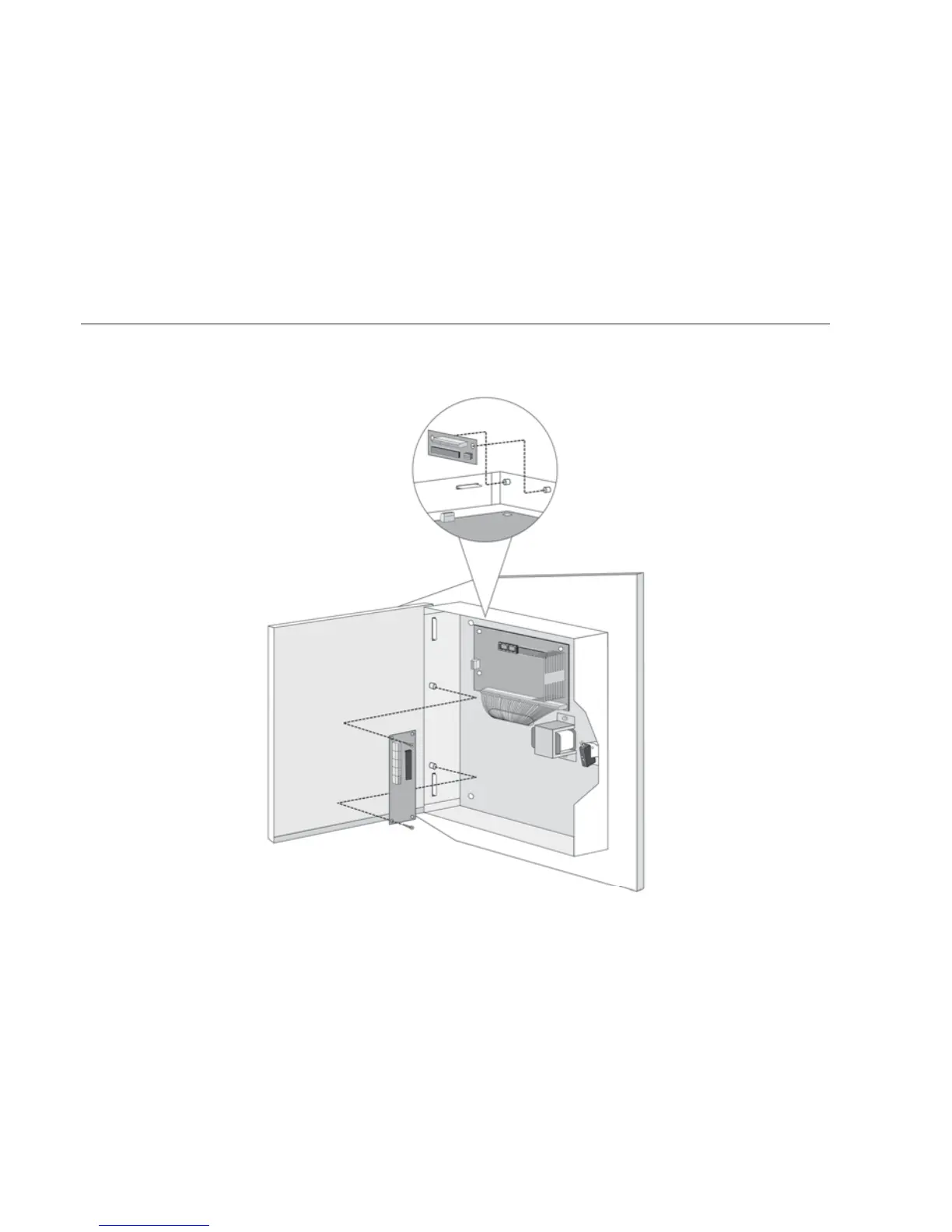

Figure 3: Mounting the Main Panel
The mounting location should be:
Dry.
Near an AC power supply (switched off).
With a good earth connection.
With access to the customer's phone lines.
