158 ProSYS Installation and Programming Manual
Accessories: Add Delete Module
Quick Keys Parameter Default Range
3. Place the cursor over the TYPE field and use the / key to
toggle between the options and select the required Utility Output, as
follows:
 NONE
 UO04 (a 4-Output Relay-Type Unit)
 UO08 (an 8-Output Solid-State Type Unit)
 XO08 (the X-10 Transmitting Module)
 UO02 (2-Output Relay Type located on the 3A switched power
supply expansion module)
4. Press
/ to confirm (and store) your choice.
5. Repeat the process for any other Utility Output modules in the system (up
to the system's maximum of 8, depending on your installed model).
6. Press
to return to the previous programming level.

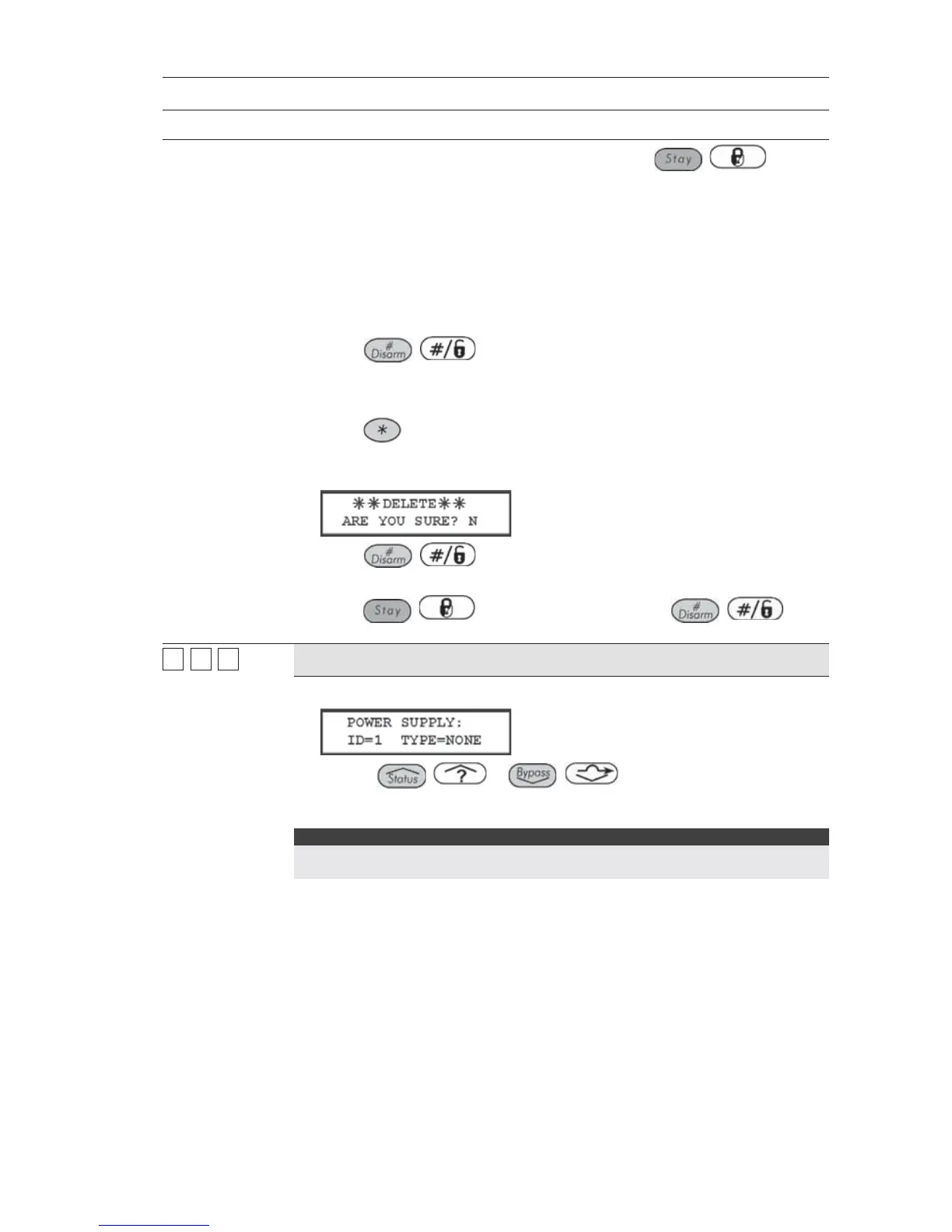

If a Utility Output module is found and NONE has been selected, the
following display appears:
7. Press / to return to the prior display.
-OR-
Press
/ to select [Y] YES and press / to
confirm the delete.
77
11
44
Power Supply Module
NONE
1. Press [4]. The following display appears:
2. Use the / or / keys to position the cursor over
the ID number to which you want to assign (or delete) the Power Supply
module. The first PS must be assigned to the first ID number, which is 1.
NOTE:
Check that the Power Supply's physical ID number has been "dip switch"
programmed, as described in Chapter 3, Installing External Modules and Devices.
