ProSYS Installation and Programming Manual 145
66
55
Report Codes: Power Supply Accessory Module
Trouble
Default: 00
The Power Supply Accessory Module Trouble menu contains codes that enable reporting the
detection or restoral of troubles relating to the operation of the Power Supply Accessory
module.
 To access the Power Supply Accessory Module Trouble menu:
1 Access the Report Codes menu, as described on page 137.
2 From the Report Codes menu, press [5] to access the Power Supply Accessory

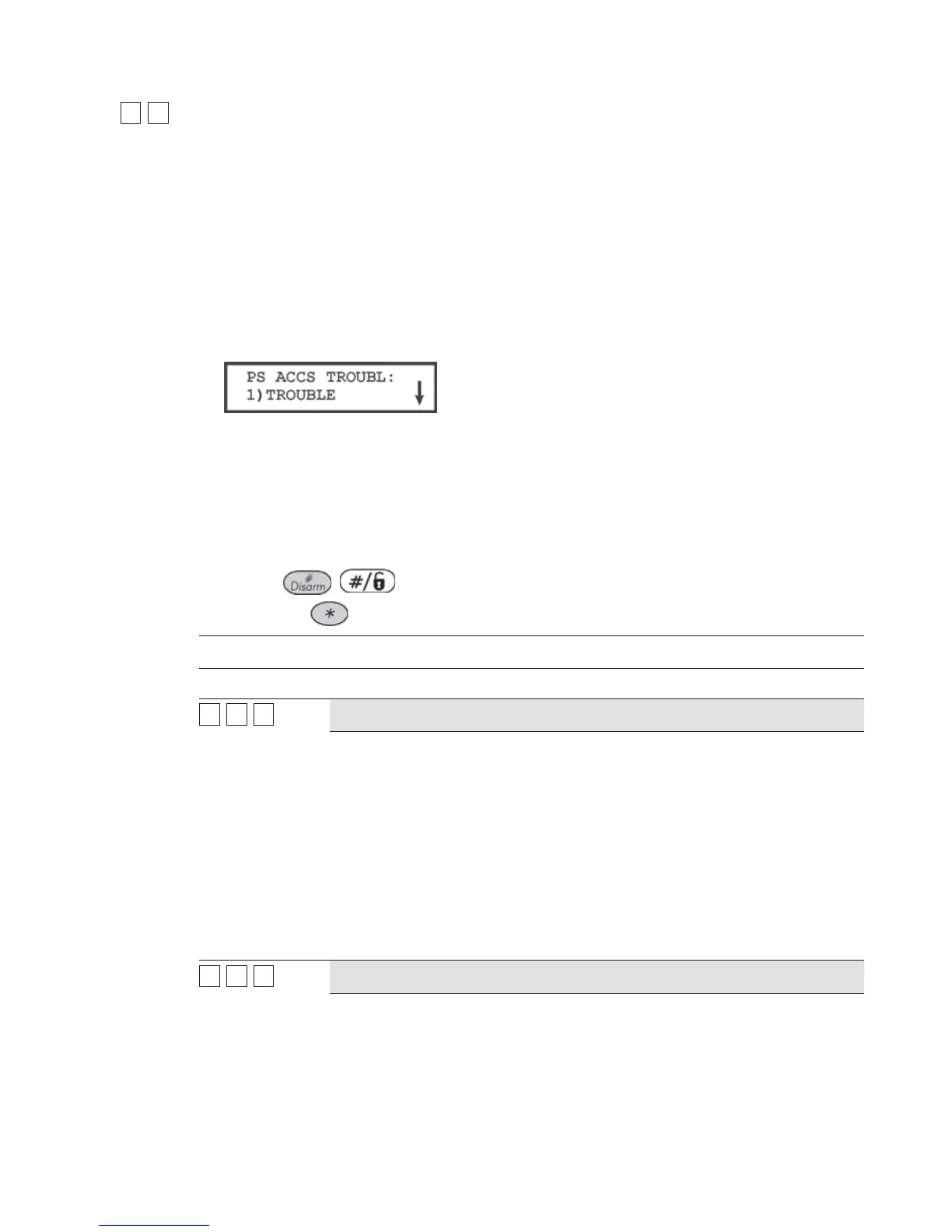

Module Trouble menu options. The following display appears:
3 Access and configure the parameters in the Power Supply Accessory Module Trouble
menu, as follows:
O Press [1] to access the Trouble Condition programming options, or press [2] to
access the Trouble Restoral programming options.
O Enter the appropriate Trouble Condition or Trouble Restoral number.
O Enter the Power Supply module ID number (1 digit).
O Enter the 2-digit code representing the event.
O Press
/ .
O Press the
key to return to the previous programming level.
Report Codes: Power Supply Accessory Module Trouble
Quick Keys Parameter Default
66
55
11
Trouble Conditions
00
Trouble Codes assigned to the ProSYS Main Panel:
[1] Low Battery: reports the detection of a weak (or missing) standby battery.
[2] Bell: reports a trouble condition regarding the management of an internal
sounder connected to the Power Supply Accessory module.
[3] AC Loss: reports a trouble condition relating to the AC power supply to the
Power Supply Accessory module.
[4] AUX Fail: reports the loss of Auxiliary power supplied by the Power Supply
Accessory module.
[5] Overload: used when the total current consumption from the AUX and
BELL/LS outputs of the switched power supply exceeds 3A.
66
55
22
Trouble Restorals
00
Codes to report the detection or restoral of troubles with the operation of the
Power Supply Accessory module:
[1] Low Battery: reports the restoring to normal of a weak (or missing) standby
battery.
[2] Bell: reports the restoring to normal of the management of an external
sounder.
