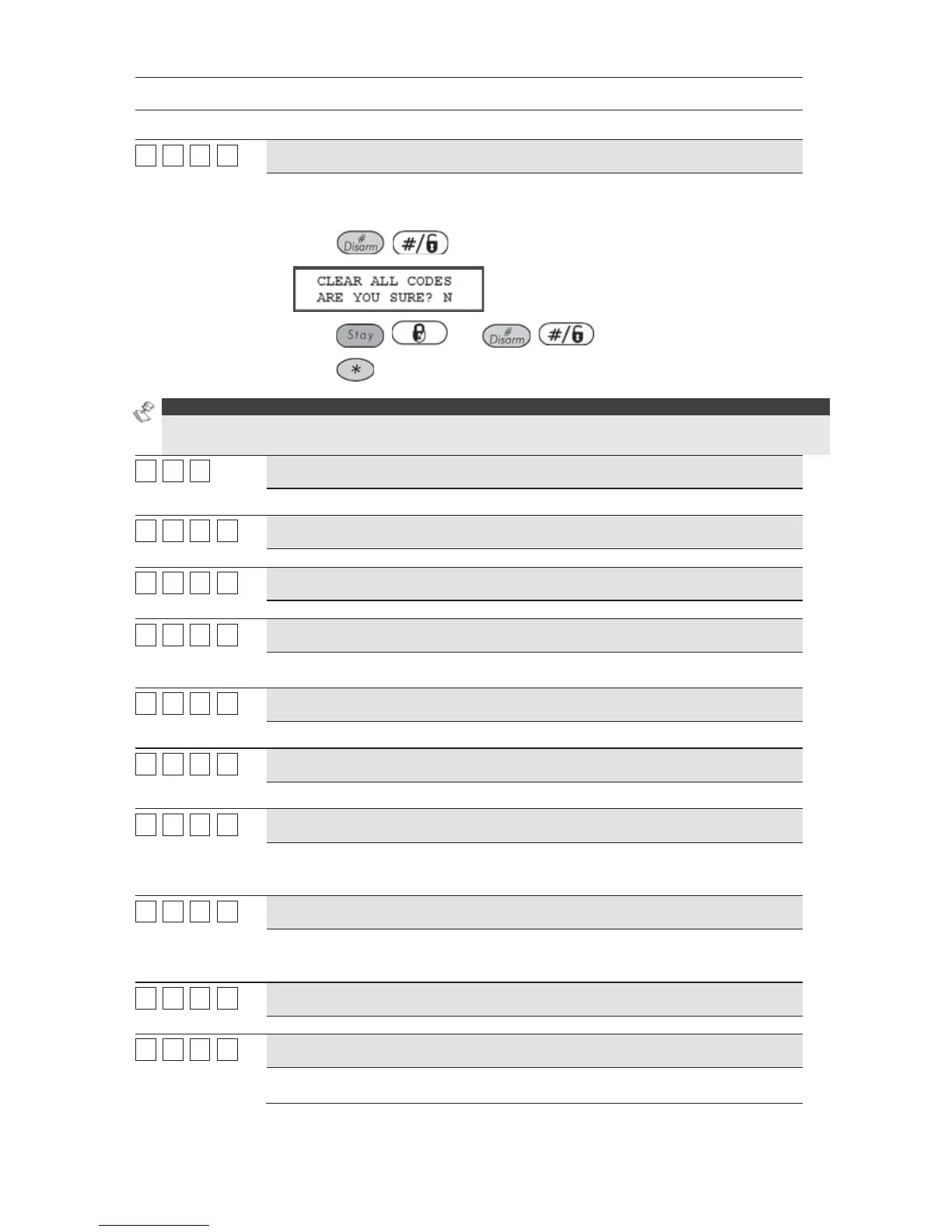

134 ProSYS Installation and Programming Manual
Dialer: More
Quick Keys Parameter
55
00
11
33
Delete All
The ProSYS resets to 00 all previously programmed MS Report Codes.
This does not change any other programmed parameters.
1. Press
/ to select this option. The following display appears:
2.
3. Press
/ and / to confirm your choice.
4. Press
to return to the previous programming level.
NOTE:
Any change in the system parameters requires you to reload the Auto Codes parameters in order to
update the information that is being sent to the MS.
55
00
22
ACM Parameters
See ACM Installer Manual for more information.
55
00
22
11
ACM IP Address
192.168.001.100
The static IP address that identifies the ACM module on the network.
55
00
22
22
ACM UD Port
03000
The port address of the ACM U/D application.
55
00
22
33
ACM AUX 1 Port
00502
The port address of the ACM AUX. The ACM AUX 1 protocol supports the
MODBUS TCP/IP protocol by default.
55
00
22
44
ACM AUX 2 Port
Provision for optional functionality
55
00
22
55
ACM AUX 3 Port
Provision for optional functionality
55
00
22
66
SUBNET IP MASK
255.255.255.0
The definition of the network portion of the IP address. This location must be
configured that all IP addresses up to and including the local gateway are
allowed.
55
00
22
77
Gateway IP
192.168.001.254
The IP address of the local Gateway, which enables communication settings to
other LAN segments. This address is the IP address of the router connected to
the same LAN segment as the ACM module.
55
00
22
88
S.W Update IP
192.168.100.001
The IP address that the ACM turns to, for downloading the upgraded software.
55
00
22
99
S.W UPDT Port
00080
The port address that the ACM turns to, during the process of software
upgrading.
To Next Page
