Utility Output: Partition
Quick Keys Parameter
33
22
2222
Zone Loss Alarm
An alarm is activated when a wireless zone is lost.

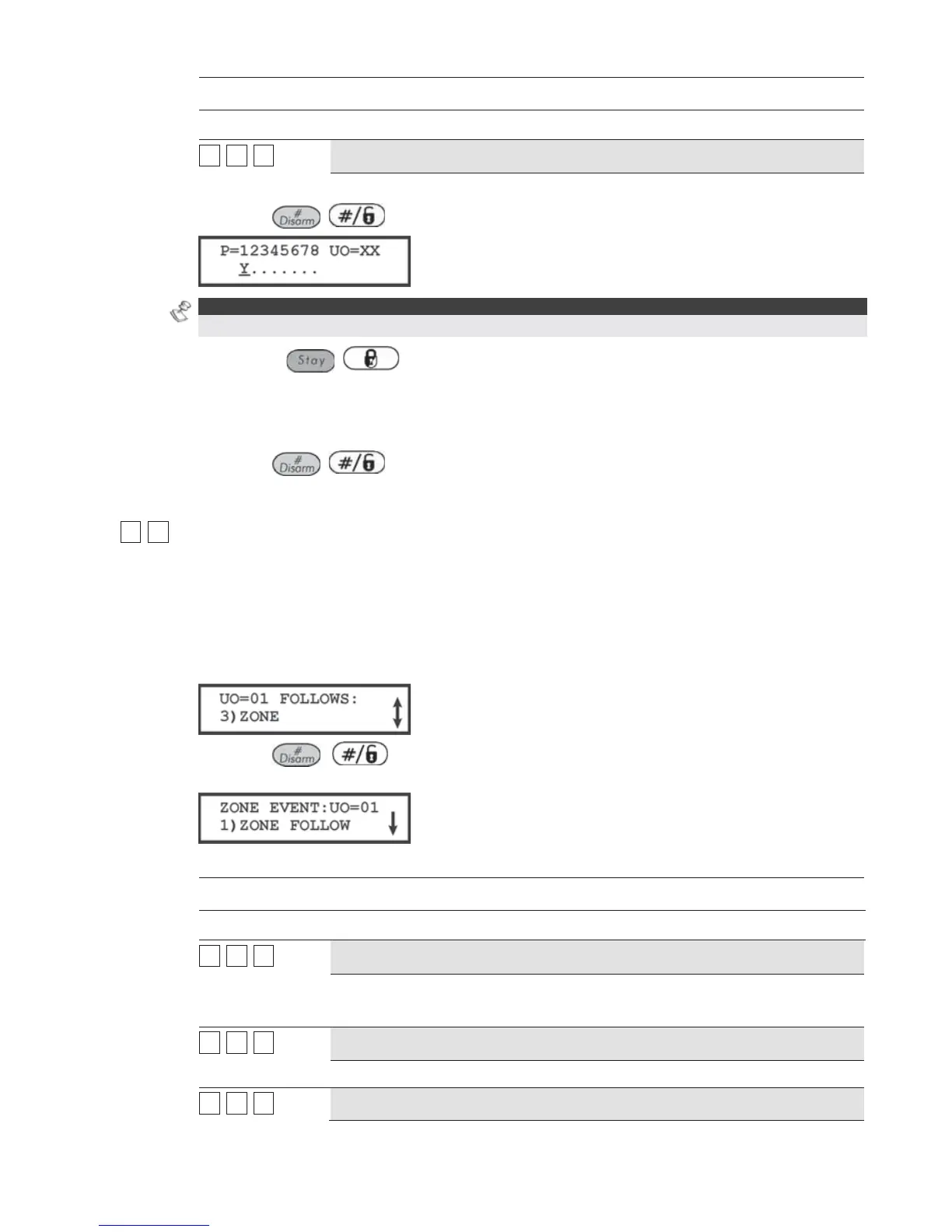

4 Press / . The following display appears:
NOTE:
The XX in the UO=XX refers to the number of the Utility Output currently being programmed.
5 Use the
/ key to toggle between [Y] YES and [N] NO to designate the
partition(s) that will activate the selected Utility Output (UO),
-OR-
Press the partition number [1 to 8] to select or deselect it.
6 Press
/ and proceed to Pattern of Operation, page 100, to set the
pattern and duration of operation.
33
33
Utility Output: Zone
The Zone menu contains Utility Output parameters that follow the Zone Event. Each Utility
Output can be activated by a group of up to five zones.
 To access the Zone menu:
Access the Utility Output menu, as described on page 93.
1 From the Utility Output menu, press [3]. The following display appears:
2 Press
/ to access the Zone menu options. The following display
appears:
3 Select the zone event type to be followed from the following list:
Utility Output: Zone
Quick Keys Parameter
33
33
11
Zone Follow
Activates the Utility Output when the selected zone is tripped.
The tripped zone need not be armed to trigger the Utility Output.
33
33
22
Alarm Follow
Activates the Utility Output when the selected zone causes an alarm.
33
33
33
Arm Follow
To Next Page
