ProSYS Installation and Programming Manual 71
Zones: Zone Sound
Quick Keys Parameter Default
22
44
ZZZZ
+
/
66
(BELL/A BUZZER/D)
NOTE:
The following feature is active only when a zone alarm event is triggered.
Non 24H zone: Alarm event from the zone is generated only when the
associated partition is armed – In this case when the zone sound is
defined as "BELL/A, BUZZER/D" only the bell will be sounded.
(Opening a zone in the disarm state does not trigger an alarm
event and accordingly no buzzer sound will be generated. )
24H zone: Alarm event from the zone can occur when the associated
partition is either armed or disarmed. In this case when the zone sound
defined as “BELL/A , BUZZER/D”:
• Partition is armed - Only the Bell will be activated.
Partition is disarmed - Only the Buzzer will be activated.
22
55

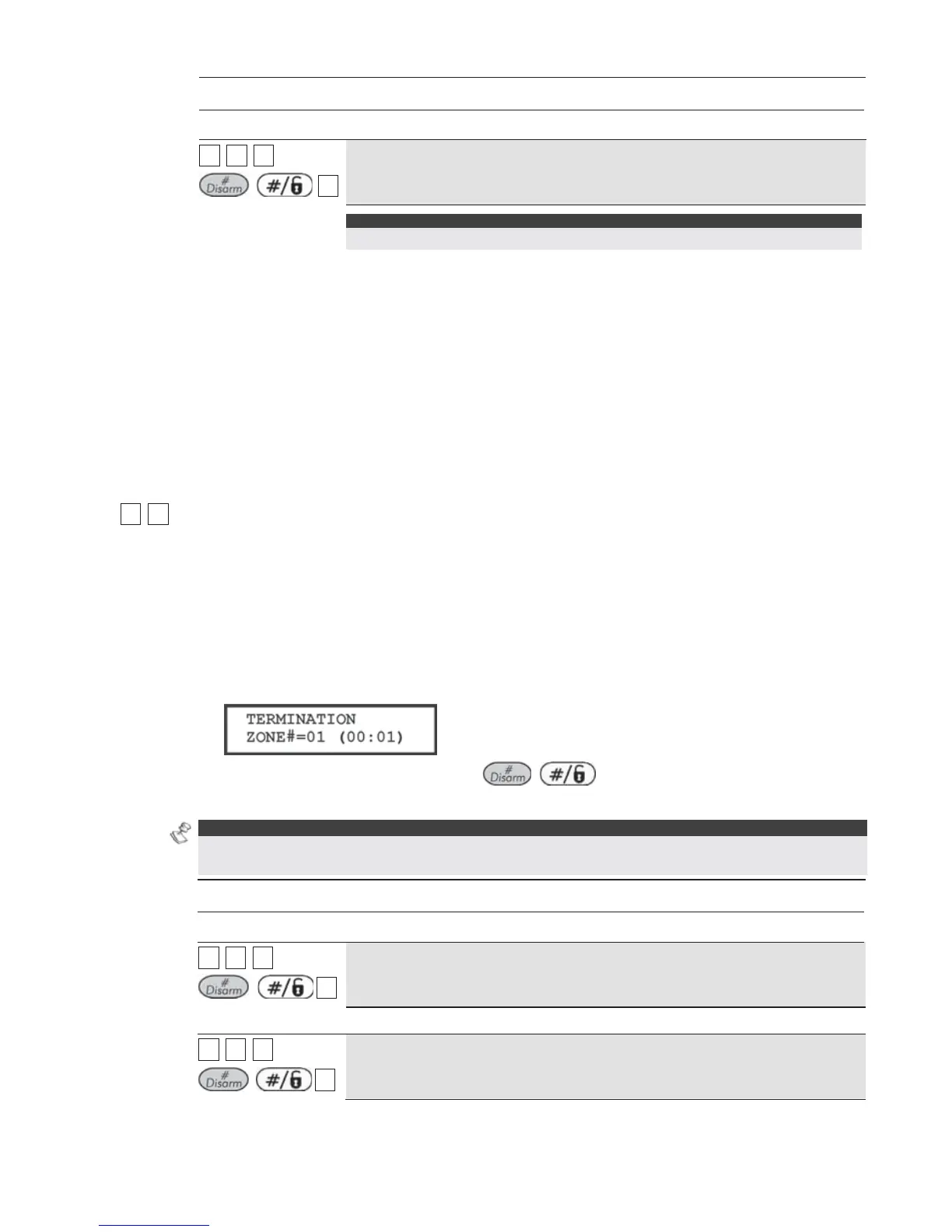

Zones: Termination
The Termination menu enables you to program the connection type used for each of the
system's zones. The actual (physical) termination for each zone must comply with that
selected in the zone termination menu.
To access the Termination menu:
1 Access the Zones menu, as described on page 62.
2 From the Zones menu, press [5] to access the Termination menu options. The
following display appears:
3 Specify a zone number and press
/ .
4 Access and configure the parameters in the Termination menu, as follows:
NOTE:
When configuring the parameters in the table below, refer to Figure 2-4, Zone Connection Diagrams in
Chapter 2, Mounting and Wiring the Main Panel, if required.
Zones: Termination
Quick Keys Parameter Default Range
22
55
ZZZZ
+
/
0101
N/C
Uses normally-closed contacts and no terminating End-of-Line Resistor.
22
55
ZZZZ
+
/
0202
EOL
