ProSYS Installation and Programming Manual 63
The following procedure describes how to program the full complement of parameters for
each zone on a one-by-one basis.
 To access the One by One menu:
1 Access the Zones menu, as described on page 62.

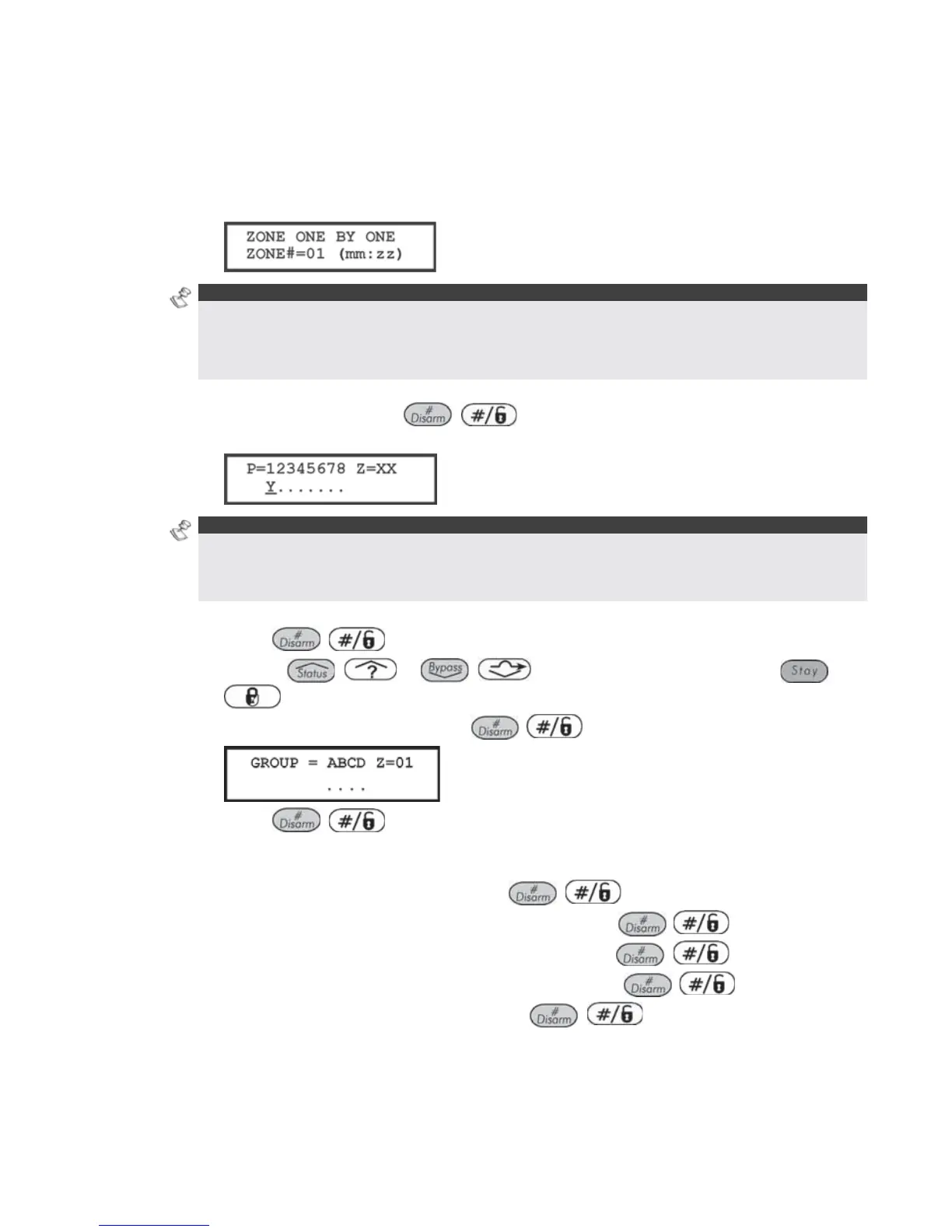

2 From the Zones menu, press [1] to access the One by One menu options. The
following display appears:
NOTES:
In the mm:zz designation, the mm = the module ID number, and the zz = the zone number for this
module (the number next to the terminal block on the expander).
In the ProSYS 128, the zone numbers are represented by three digits (zzz). For example, Zone 1 will
be 001.
3 Specify a two-digit zone number from which you want to start programming (for
example, 01) and press
/ again to access the category on Partition
Assignments. The following display appears:
NOTES:
The XX in the Z=XX designation is for the zone number.
In a multi-partition system, a zone can be assigned to more than one partition.
A system without partitions is regarded as having a single partition (meaning Partition 1).
4 Use keys [1] to [8] to toggle the partition status between
[Y] YES and [N] NO.
5 Press
/ to proceed to Zone Groups.
6 Use the
/ or / keys to select the group, use the /
key or the A/B/C/D keys to toggle between [Y] YES and [N] NO in the
following display, and then press
/
:
7 Press
/ to proceed to Zone Types.
8 To program Zone Types, as well as the other four zone categories, select the following
options (refer to the following pages for further instructions):
O Zone Type: Select a type and press
/ .
O Zone Sound: Select a sounding method and press
/
.
O Zone Termination: Select a termination and press
/ .
O Loop Response: Select a loop response and press
/
.
O Zone Labels: Assign a label and press
/ .
