Example: Agitation
The RUN sequence of the "Agitation" equipment phase is started. When the agitator has
reached its setpoint speed, the RUN sequence ends and the equipment phase reports that it
has completed. The "COMPLETING" step can only be started by external command from the
operator or from SIMATIC BATCH.

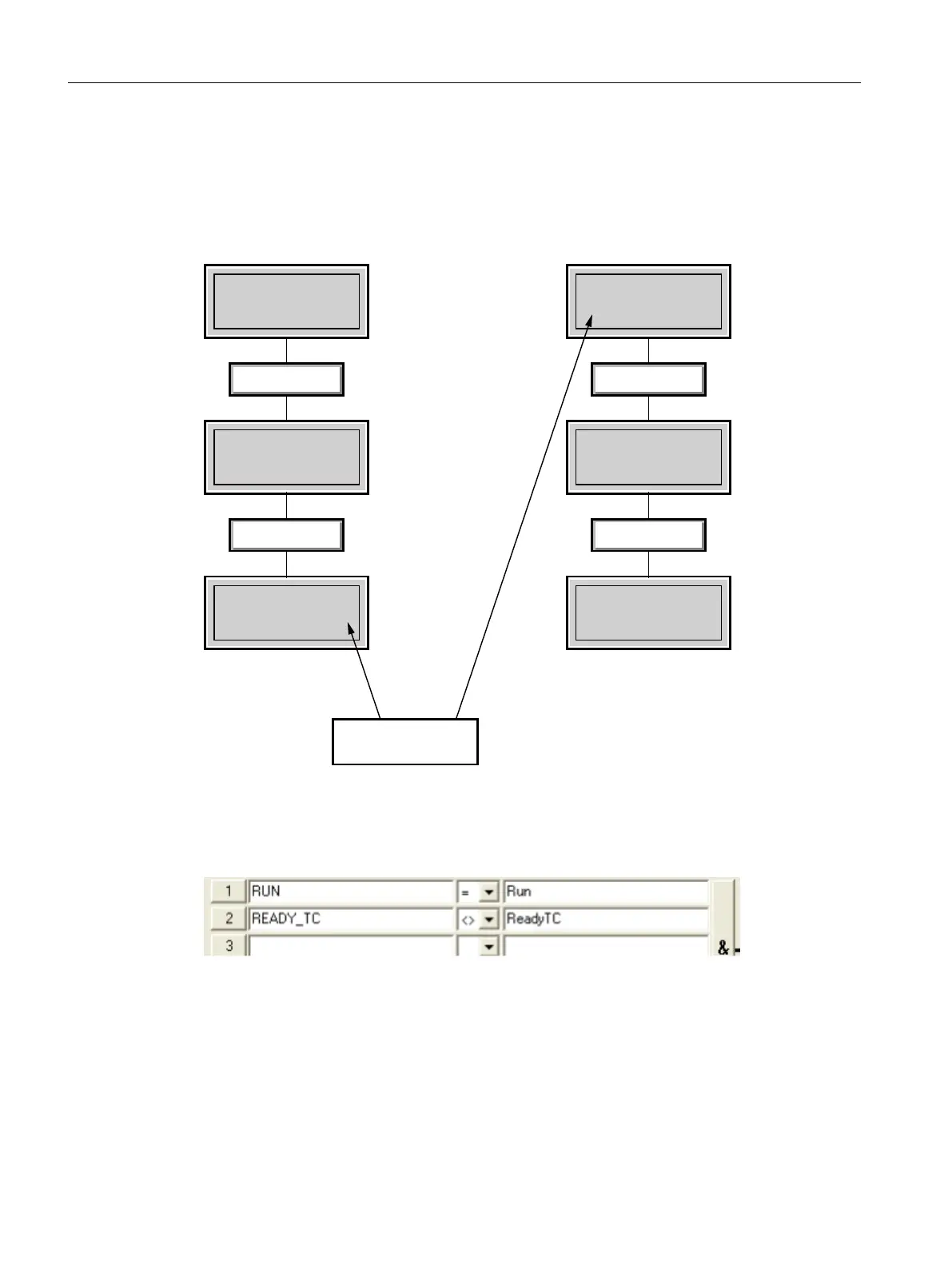

67$57

0RWRURII

(1'
67$57

0RWRURQ

(1'
581
5($'<B7&
&203/(7,1*
6SHHG2.
As long as no external complete command has been issued, the equipment phase remains in
the RUN sequence (RUN status), which means that the RUN sequence is started once again.
If you only want the RUN sequence to be executed once and not cyclically, you must make
the following settings in the sequence properties in the "Start Condition" tab.
The property "self-terminating or non-self-terminating equipment phase" can be configure at
the SFC type for all instances or at all SFC instance blocks. This involves the block input contact
"SELFCOMP".
SELFCOMP=0: Non-self-terminating equipment phase
Engineering
7.1 Basic engineering for PCS 7
SIMATIC BATCH V8.2
150 Operating Manual, 02/2016, A5E35958174-AA
