10.4.5.16 Configuring synchronization lines
Three examples are offered below to show and explain the semantics and the handling of
synchronization lines.
Example 1

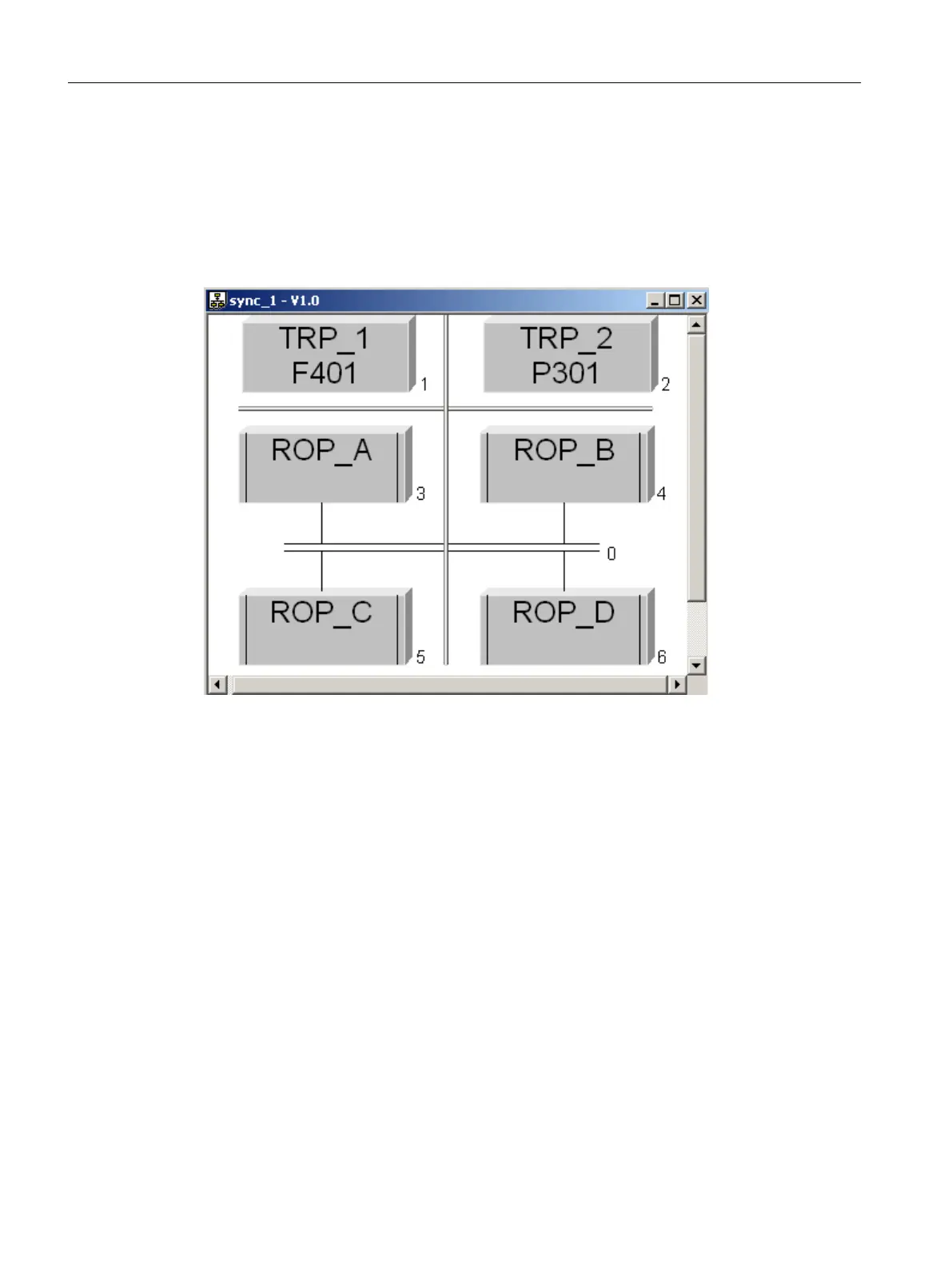

Synchronization line 0 runs over two RUPs, RUP_1 and RUP_2. If all ROPs before the
synchronization line are completed, here ROP_A and ROP_B, the following two ROPs, here
ROP_C and ROP_D are started.
BATCH Recipe Editor
10.4 Creating recipes
SIMATIC BATCH V8.2
556 Operating Manual, 02/2016, A5E35958174-AA
