10.3.2 Hierarchical recipes
10.3.2.1 Hierarchical recipes
Hierarchical recipes
With the BATCH Recipe Editor, you create hierarchical recipes. The following recipes are
possible:
● Hierarchical recipes with ROPs (Page 502)
● Hierarchical recipes with RPHs (Page 503)
● Hierarchical recipes with ROPs and RPHs (Page 504)
10.3.2.2 Hierarchical recipes with ROPs
Configuration

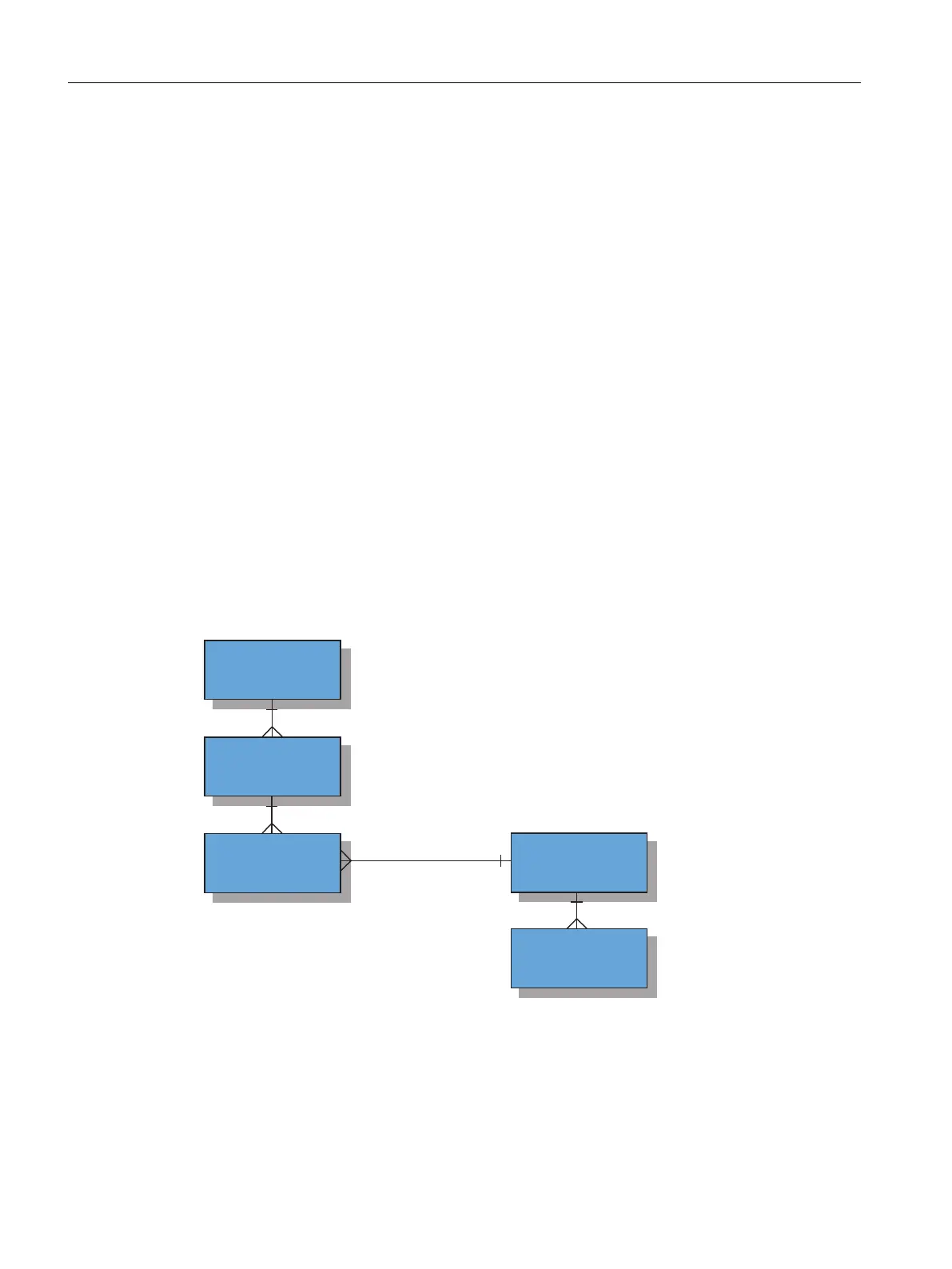

The following figure shows the basic structure of a hierarchical recipe with ROPs. Below the
recipe unit procedure (RUP), there may be several recipe operations (ROPs). The recipe
operations use the EOP blocks directly. These EOPs are created during engineering of the
basic control (refer to the section on configuration in the ES).
(TXLSPHQW
RSHUDWLRQ
EORFN(23
(TXLSPHQW
SKDVH
EORFN(3+
5HFLSH
SURFHGXUH
53
5HFLSH
RSHUDWLRQ
523
5HFLSHXQLW
SURFHGXUH
583
DVVLJQHGWR
LVDQRUGHUHGVHWRI
LVDQRUGHUHGVHWRI
LVDQRUGHUHGVHWRIRSWLRQDO
Editing parallel recipe operations (ROPs)
You can only edit parallel branches in hierarchical recipes if you activate the "Allow parallel
ROPs" option in the BATCH control center under Options > Settings > Project settings >
"General" tab.
BATCH Recipe Editor
10.3 Recipe topology
SIMATIC BATCH V8.2
502 Operating Manual, 02/2016, A5E35958174-AA
