9.8.3.3 Executing a batch
Execution of a recipe in SIMATIC BATCH AS based
The following recipe is intended to illustrate execution of a recipe in As-based SIMATIC BATCH:

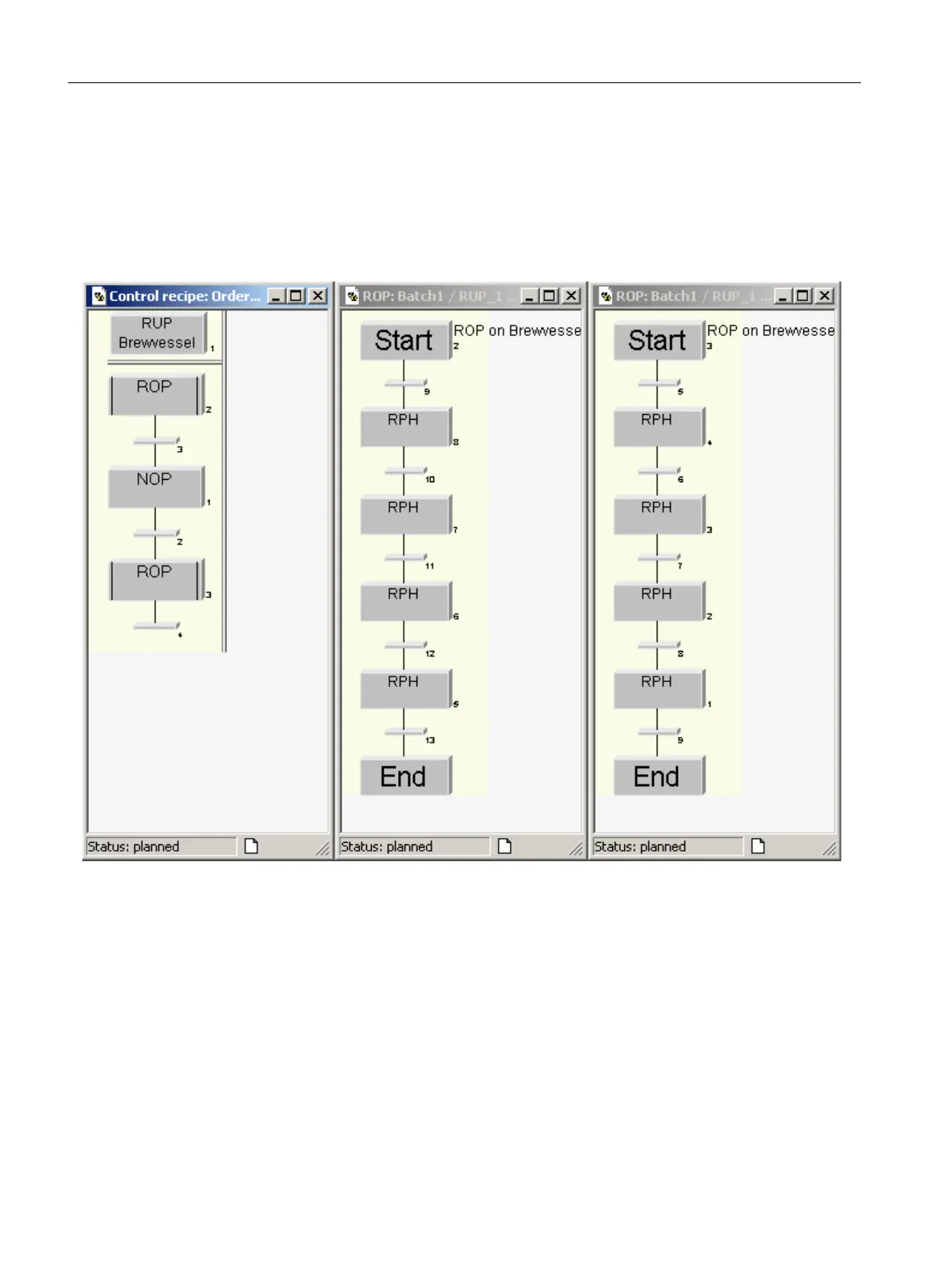

Image 9-12 Online view of the control recipe in the BCC, status planned
Placeholder (No Operation = NOP) without runtime
The individual recipe phases (RPHs) in the recipe shown only contain NOPs configured without
a runtime. Since this recipe manages without feedback from the process or runtimes of the
recipe phases, it is good for demonstrating how SIMATIC BATCH AS-based works. In the
example, we are assuming that the UNIT_PLC block is installed in OB 32.
BATCH Control Center
9.8 Batch control
SIMATIC BATCH V8.2
384 Operating Manual, 02/2016, A5E35958174-AA
