11.4.9 Searching batches
Using the search in the OS control properties
A button
is provided in the OS control properties for opening a search dialog allowing you
to search for elements in a control recipe of an open batch.
The search always relates to the batch control recipe displayed in the OS control. The search
results are displayed in tabular form at the same time with your entry and selection criteria.
Each hit location is displayed in a row with the following columns:
● Type: Indication of the type found, for example, a parameter
● Element: Indication of the element found in the control recipe or in the batch
● Text: Indication of the found text
You can filter the contents of each column (Type, Element, Text) according to your
requirements. To do this, enter your filter argument in the corresponding filter row of a column.
The found text is displayed in the lower section.
When you double-click on a result row, the found element is marked in the control recipe.

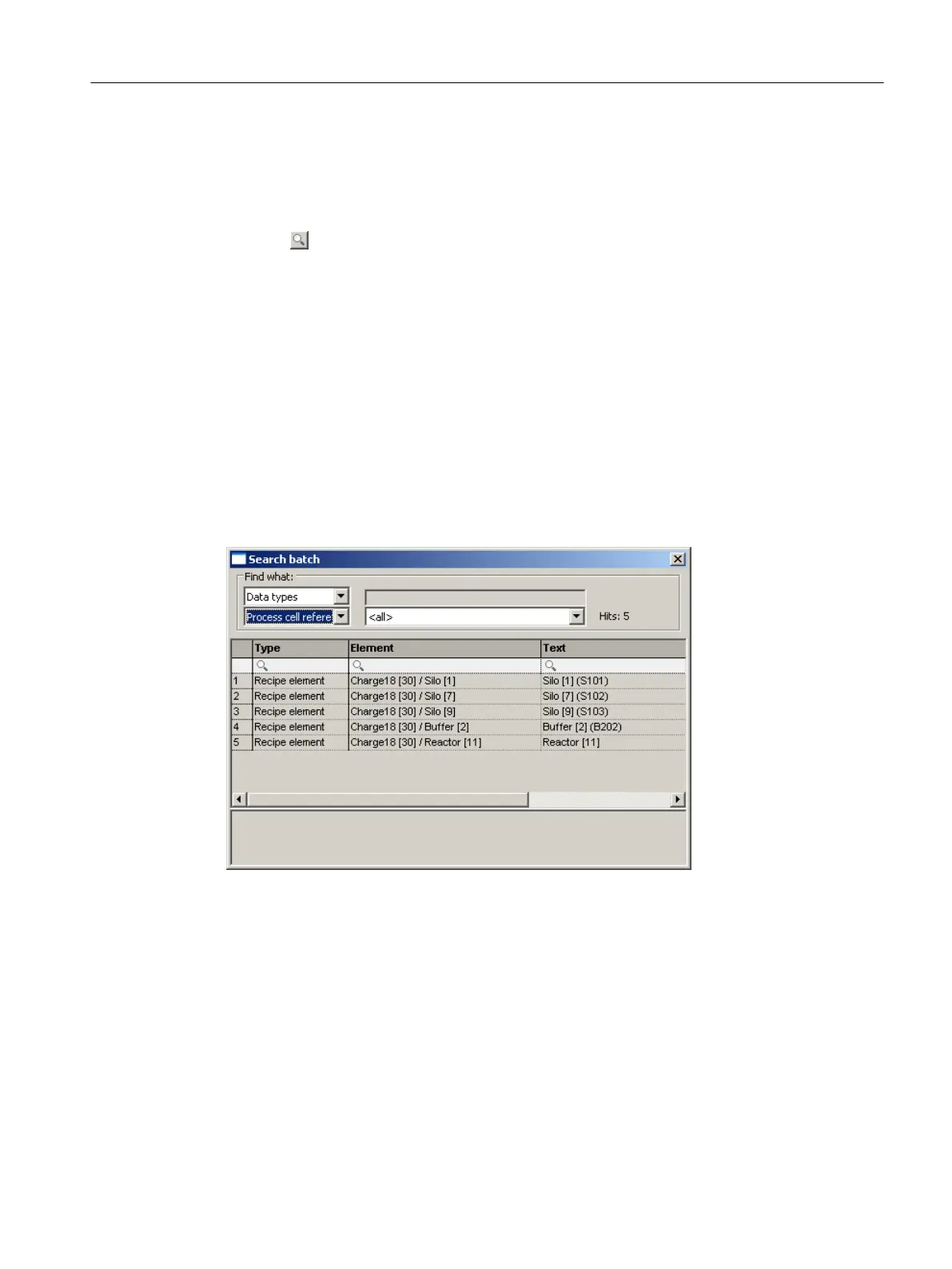

Image 11-1 "Find" dialog (OS control)
Restrictions
The following restrictions apply for the search in the OS control properties compared to the
search in BatchCC:
● The text search ignores labels on recipe elements.
● The search result cannot be saved.
● Searching within comments is not supported.
● In the text search, e.g., numbers, limits, setpoints and process values are not taken into
consideration.
BATCH OS controls
11.4 Applications in process mode
SIMATIC BATCH V8.2
Operating Manual, 02/2016, A5E35958174-AA 633
