Description:
Text box for descriptive text available after clicking "New" button.
14.1.3.7 "Condition" tab (Recipe procedure/Batch properties)
The "Conditions" tab in the properties dialog of a selected recipe unit procedure can be opened
from the BATCH Recipe Editor and from the BatchCC.
In the BATCH Recipe Editor, you configure at a recipe unit procedure the conditions according
to which the unit candidates are allocated. Define the conditions in such a way that at least
one candidate meets them. If none of the candidates meet the conditions, the validation signals
an error.

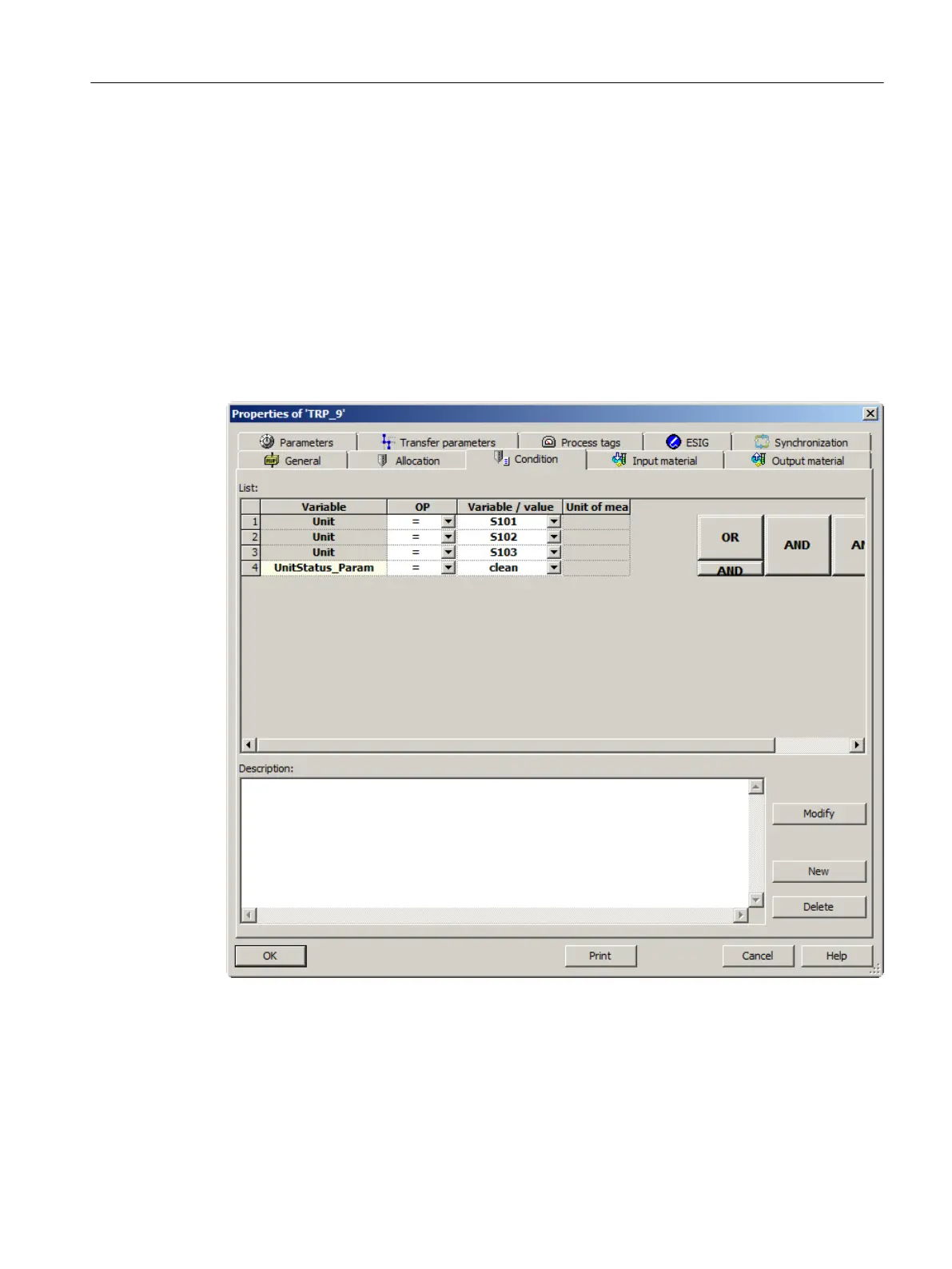

Image 14-1 Properties of an RUP in the Recipe Editor, "Conditions" tab
The results for the individual conditions are displayed for each candidate in process mode.
Based on the symbols, you can identify which of the conditions have switched and thus allocate
a specific unit for batch processing.
When the dialog is opened, the first row of possible candidates is automatically selected. When
you select a different candidate, its conditions are displayed together with the switch results
Context help references
14.1 Dialogs
SIMATIC BATCH V8.2
Operating Manual, 02/2016, A5E35958174-AA 765
