Example: A process value in the ROP can have a parameter in a RUP as its target. This means
it is also possible to use the actual value of a step as the setpoint of a subsequent step. The
name of the parameter is referenced.
Note
Parameters that have a reference to a data source are not used as target parameters.

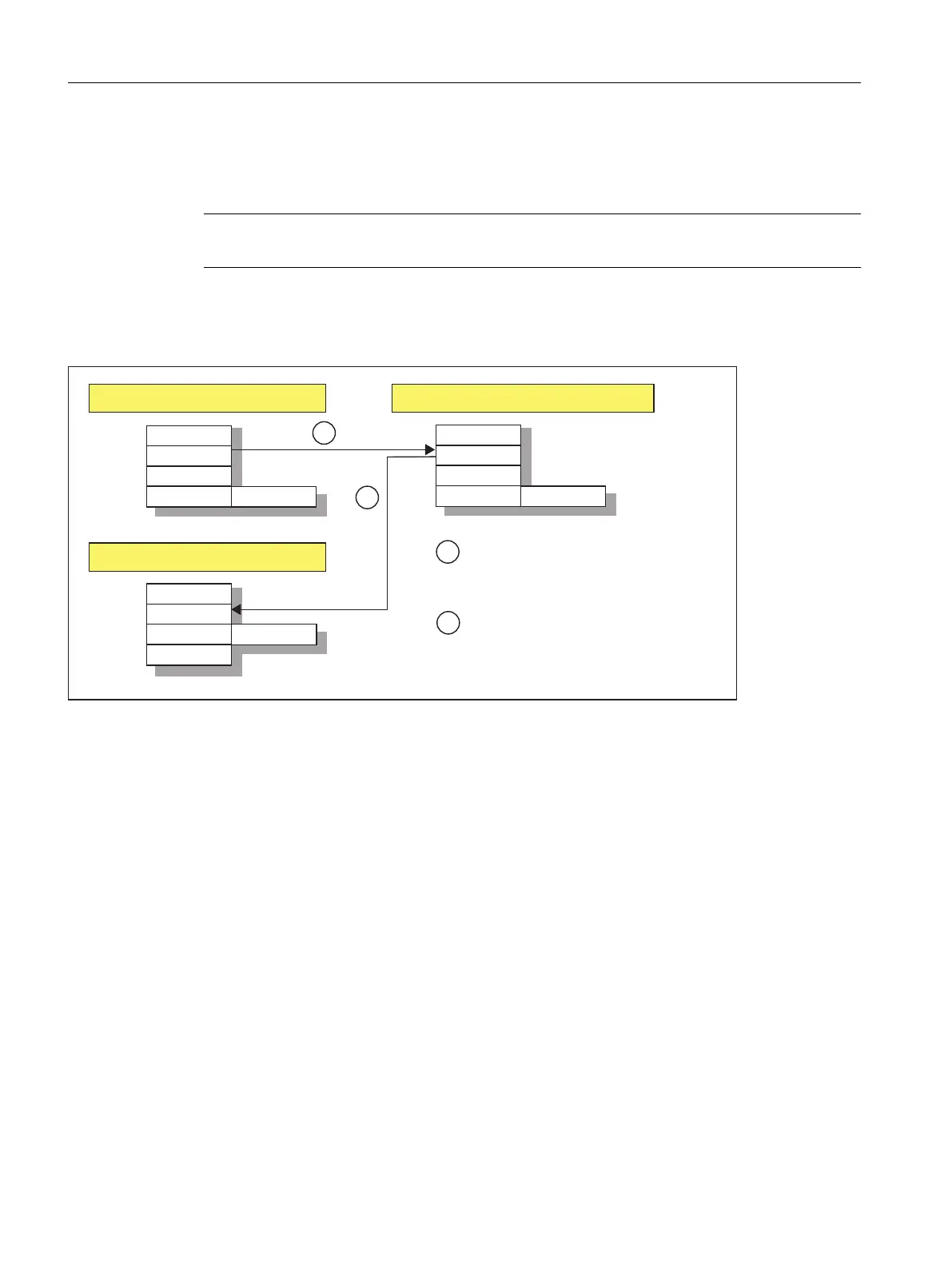

Example of a hierarchical recipe




5HFLSHRSHUDWLRQ523
5HFLSHXQLWSURFHGXUH583
1DPH$%&
9DOXH
6RXUFH
7DUJHW
1DPH
5HFLSHRSHUDWLRQ523
1DPH$%&
9DOXH
6RXUFH
7DUJHW
1DPH
1DPH;<=
9DOXH
6RXUFH
7DUJHW
1DPH
5HFLSHRSHUDWLRQXSORDGVWKHSURFHVV
YDOXHIHWFKHGIURPWKHHTXLSPHQWSKDVH
WRWKHUHFLSHXQLWSURFHGXUH
XSORDG
5HFLSHRSHUDWLRQUHDGVWKHVHWSRLQWXVHG
DVUHFLSHSKDVHSDUDPHWHURUWUDQVLWLRQ
YDULDEOHIURPWKHUHFLSHXQLWSURFHGXUH
GRZQORDG
10.4.6.3 Setting the properties of the recipe header parameters
In the properties of the recipe header (recipe header parameter), configure the Properties of
the recipes (Page 577). The material and production data and the process parameters contain
all the parameters passed up for operator instructions (formula) from those in the recipe
procedure elements (RUPs, ROPs and RPHs) lower in the hierarchy. Additional parameters
can be added to these.
Open tab dialog box
There are two ways in which you can open the "Properties of <Recipe name>" tab:
● In the BATCH Control Center
● In the BATCH recipe editor. Described below.
BATCH Recipe Editor
10.4 Creating recipes
SIMATIC BATCH V8.2
562 Operating Manual, 02/2016, A5E35958174-AA
