9.6.2.3 Assigning batches to a production order
Procedure in BatchCC:

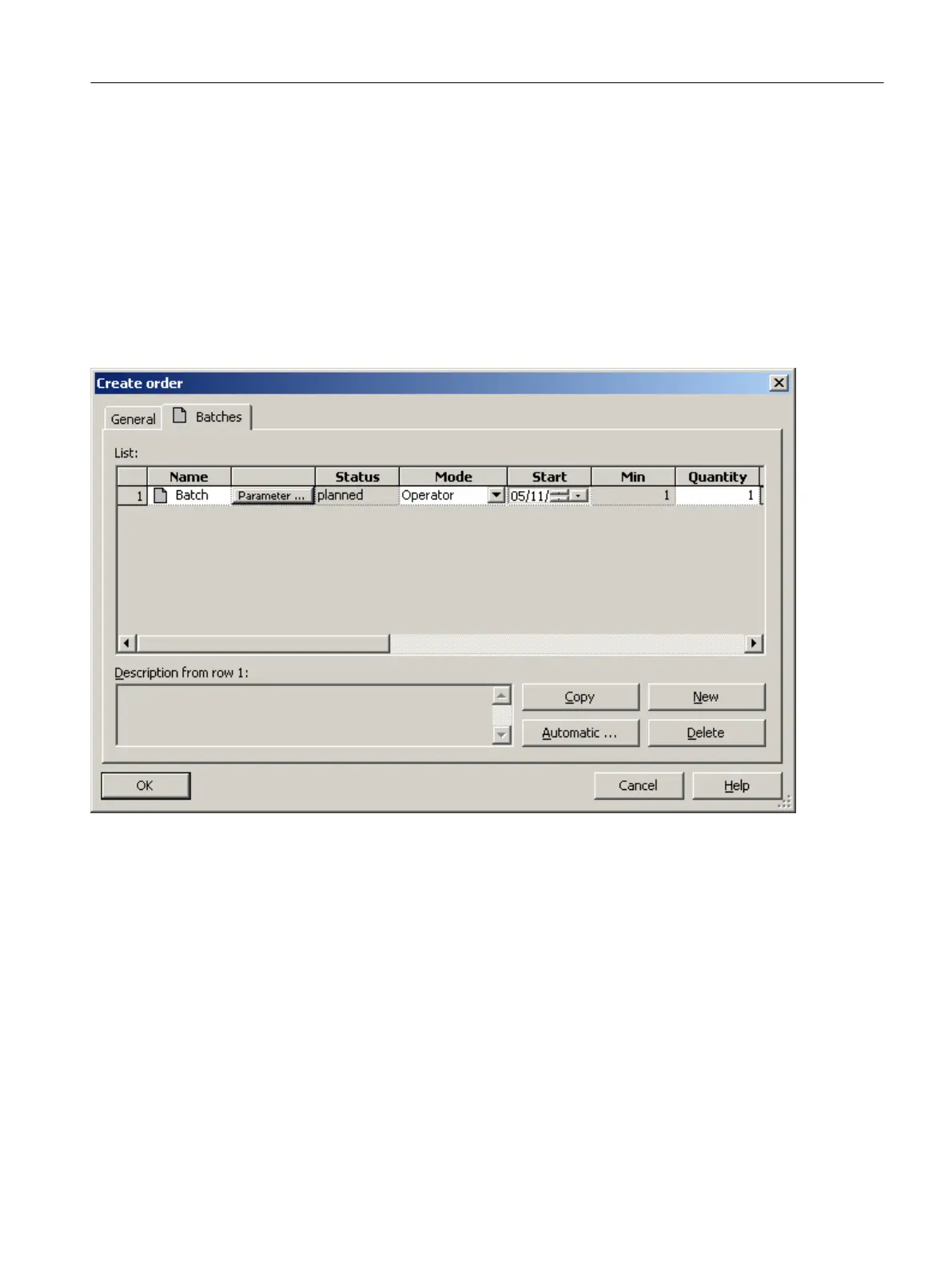

1. While creating a new order, change to the "Batches" tab (properties dialog for the order).
2. Create the batches for the production order as follows:
– You can create new batches with the "New" button. You then make the settings for the
batch quantity, Start mode, formula etc.
– Working with the master batch: Select a batch in the table and then press "Copy", the
selected batch then gets the status of a master batch and all subsequently created
batches have the property of a master batch.
– Automatic: Using the "Automatic" button is a convenient method of calculating batches
for a specific amount of material.
BATCH Control Center
9.6 Batch Planning
SIMATIC BATCH V8.2
Operating Manual, 02/2016, A5E35958174-AA 351
