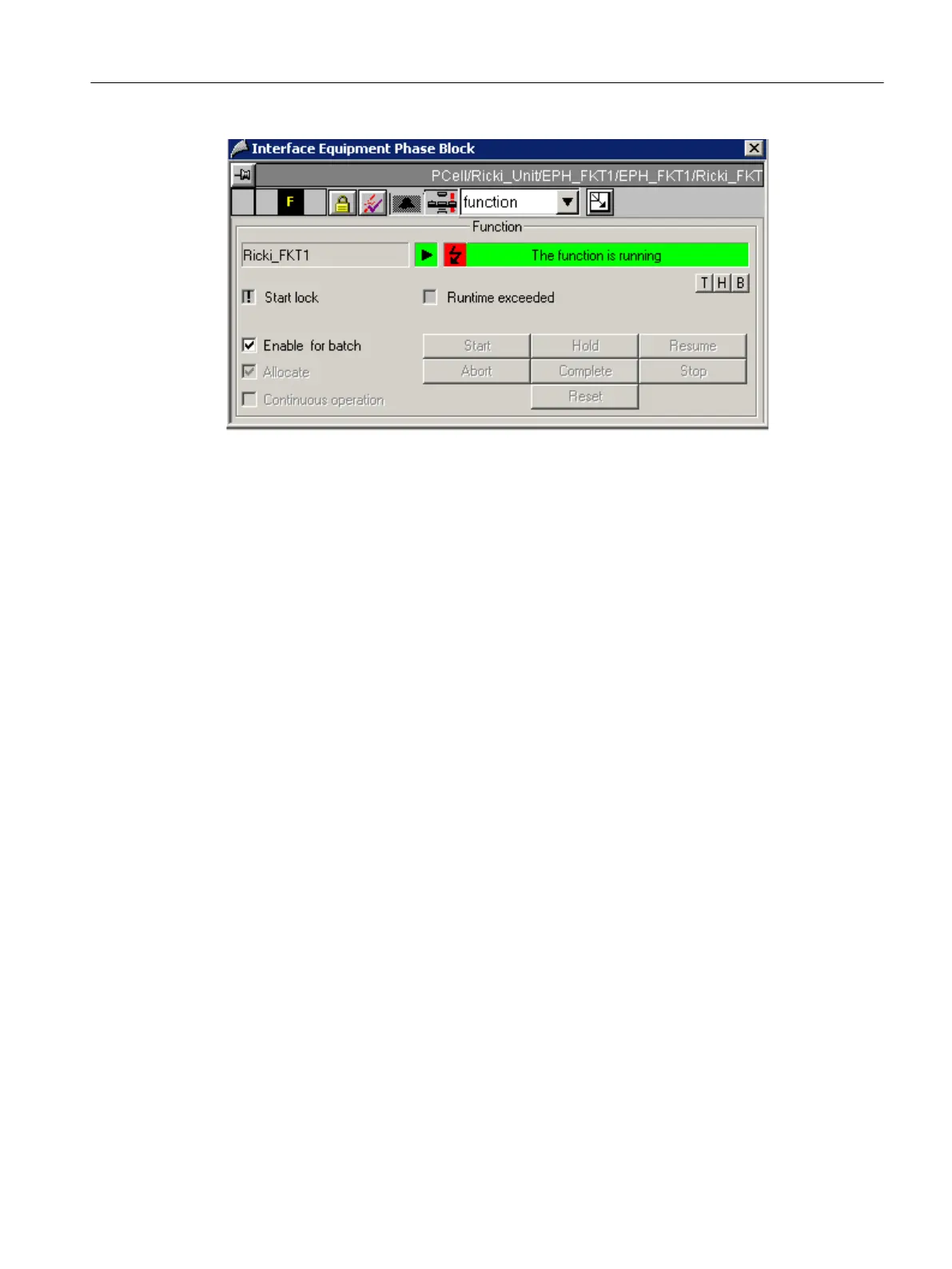

Image 9-24 IEPH, visualization on the OS
Operating the batch:It is your responsibility as the user to decide when to continue, cancel or
stop an interrupted batch after manual operation. Continuation of the batch can also be made
at a later step.
Online Help: SFC :for SIMATIC S7
Additional information is contained in the online help: SFC :for SIMATIC S7, topic: Processing
an SFC after a CPU stop and restart
9.8.6 Changes control during batch processing
9.8.6.1 Changing setpoints
Introduction
During batch control, it is possible for the operator to change parameters (setpoints) of a control
recipe. Use this function if you want to change the speed of an agitator without stopping it. The
following parameter values can be changed online:
● Input materials
● Output material
● Process parameters
This requires that "Allow online changes" was specified for the corresponding parameter during
recipe creation.
Additional information can be found in section "Setting the online modification of setpoints
(Page 570)".
BATCH Control Center
9.8 Batch control
SIMATIC BATCH V8.2
Operating Manual, 02/2016, A5E35958174-AA 449
