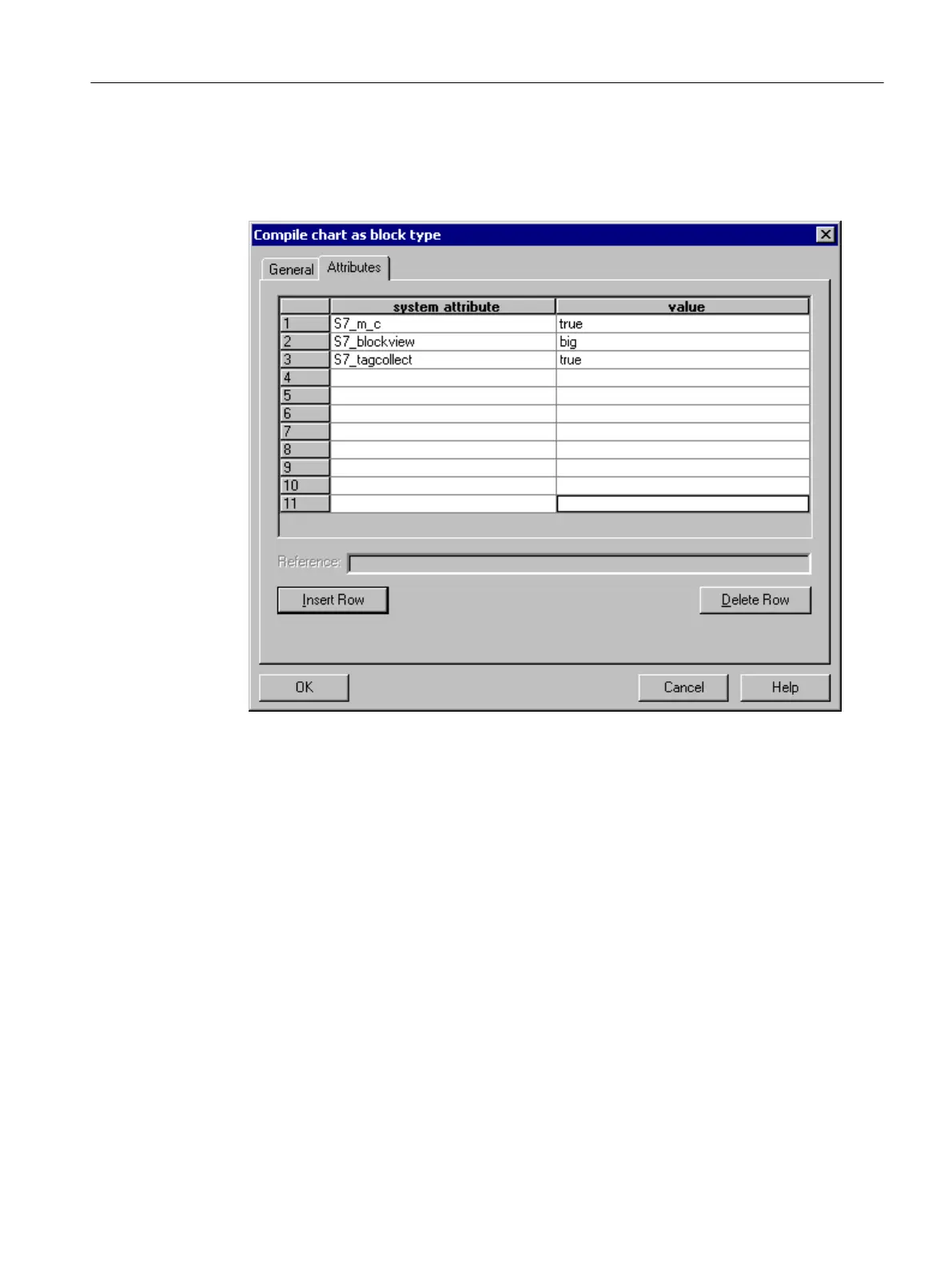

10.Here set the attribute "S7_tagcollect" (process tags) to "true" and in the case of automatic
assignment of an archive variable also set the attribute "s7_m_c" to "true". The parameters
for archiving will only be transferred into the PCS 7 OS, and only be observable and
operable if this has been done.
11.Accept the setting with "OK".
Result
The FB type TAG_COLLECT you have created can be used immediately for configuring other
process tag types. The procedure from now on is exactly the same as in Method 1 starting at
Step 9.
7.1.7 Equipment properties and their use
7.1.7.1 Introduction
Why are equipment properties defined?
In previous versions, you selected the possible unit candidates statically. This meant that
selecting the available units in which a recipe procedure was to be executed in the recipe editor
when creating a recipe. You can continue to use this procedure.
Engineering
7.1 Basic engineering for PCS 7
SIMATIC BATCH V8.2
Operating Manual, 02/2016, A5E35958174-AA 169
