The setpoint deviation indication applies to the recipe view in BatchCC as well as in BATCH
OS Control "Properties". The new status creates as event, which is contained in the xml archive
file and in the viewer for archived batches.
See also
Configuring synchronization with SIMATIC IT (Page 581)
Unlock step (Page 1118)
9.8.5.15 Status display at the order folder
In addition to the symbol for the batch order folder, a symbol shows the combined status of all
batches contained in the order folder. Extended batch information is shown dynamically
overlaying this symbol.

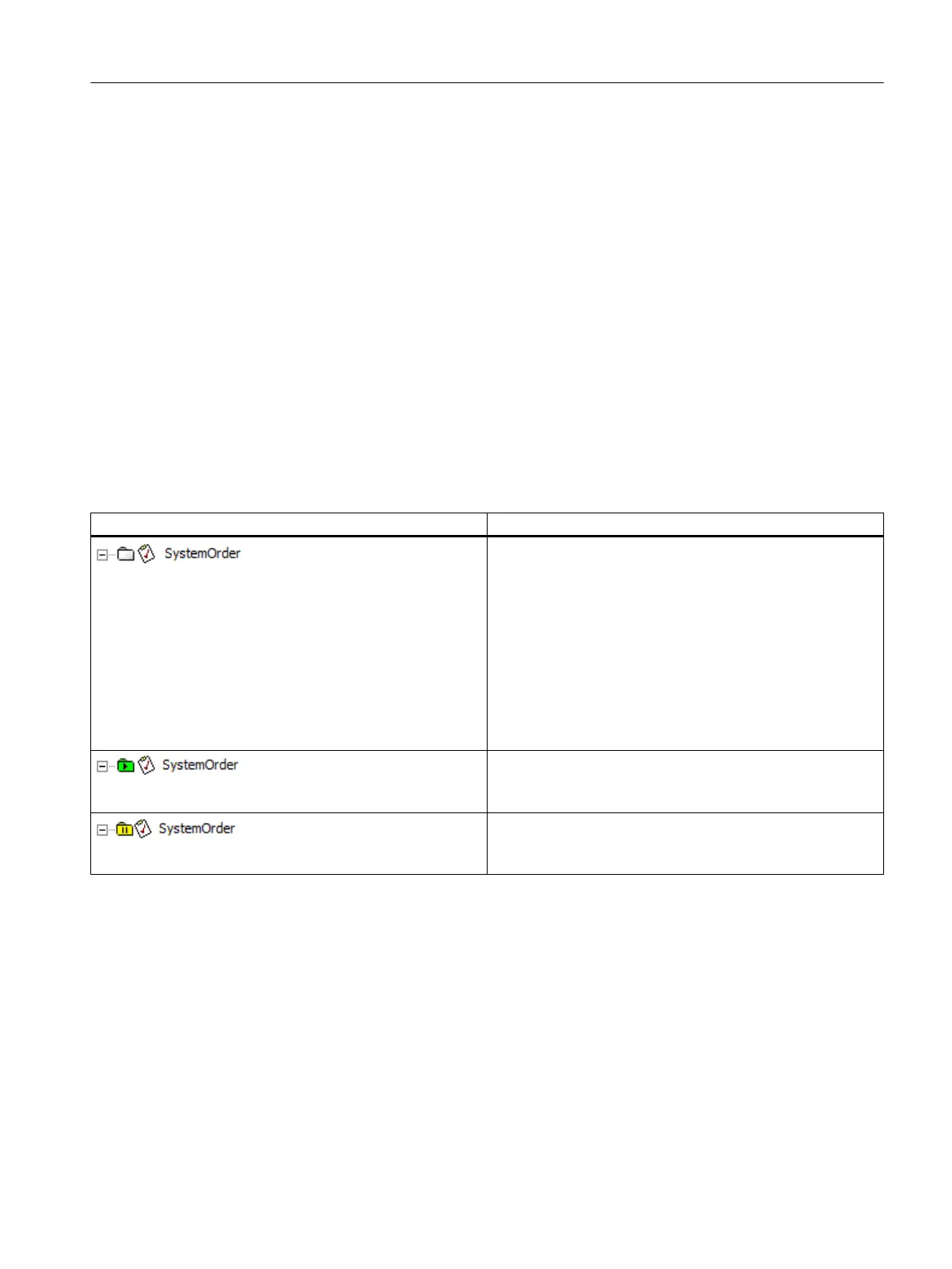

Possible displays
Symbol Combined batch status
"Inactive" status
At least one batch has one of the following statuses:
● Planned
● Release prepared
● Released
● Release invalid
● Locked
No batch has one of the following statuses:
● Running
● Held
"Active" status
At least one batch of the order has the "Waiting" or "Running"
status.
"Held" status
At least one batch of the order has the “Holding (after step/
immediately)” or “Held (after step/immediately)" status. All
other batches are inactive or Completed/Aborted/Stopped.
BATCH Control Center
9.8 Batch control
SIMATIC BATCH V8.2
Operating Manual, 02/2016, A5E35958174-AA 439
