Additional status identifiers - warning, e.g. setpoint deviation
The additional status identifier "RPE_EXSTATE_WARNING" indicates a warning on a recipe
procedural element. This status identifier indicates setpoint deviations between the equipment
phase and the equipment module. An exclamation mark appears on the step box as a warning
symbol. The setpoint deviation is shown in the tooltip.

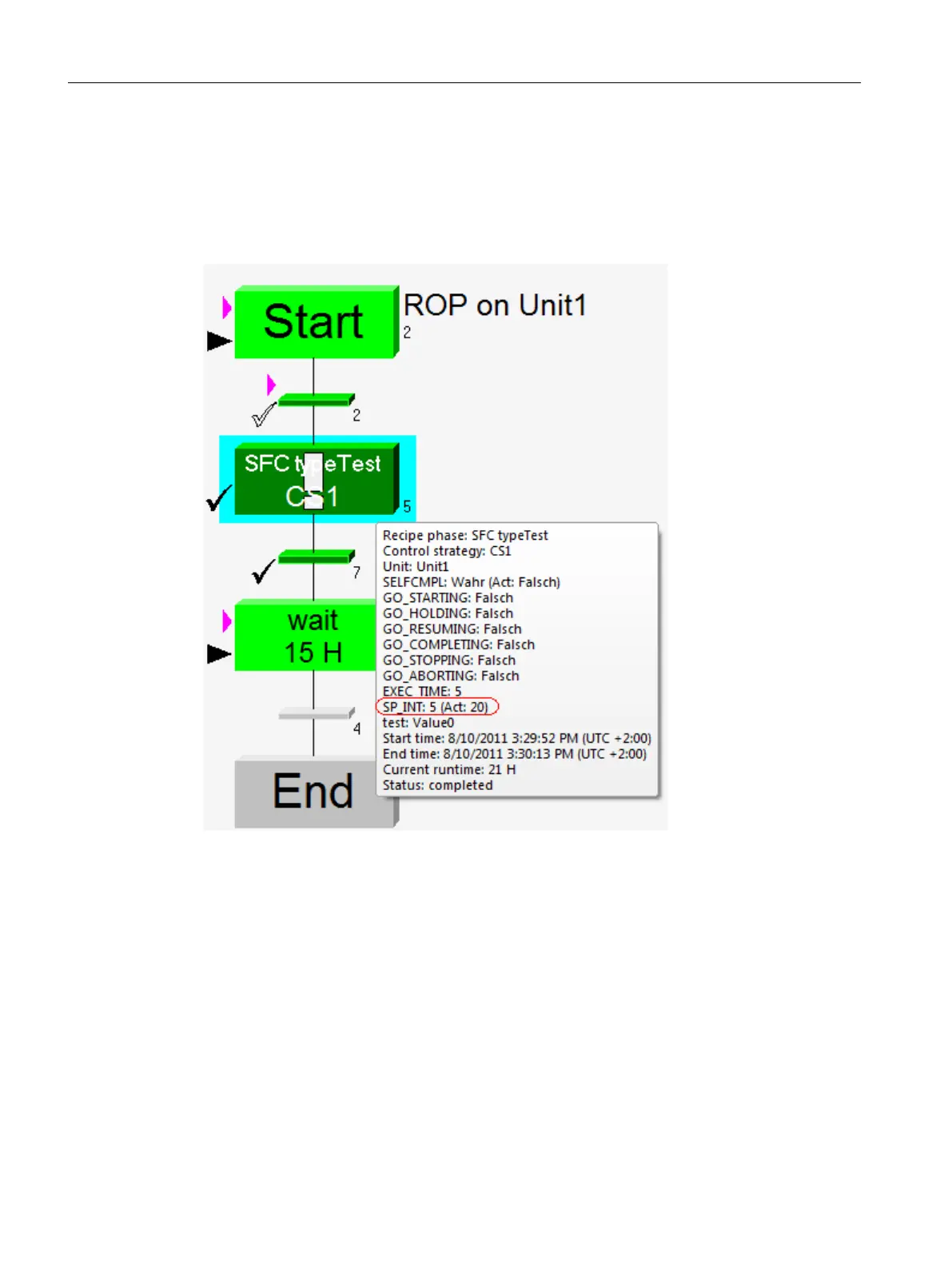

Image 9-18 Setpoint deviation
In contrast to the additional status identifier "Error" (red lightning bolt), the warning is not highly
propagated to the batch via ROP and RUP. The setpoint deviation check takes place when
the following actions are carried out:
● Switch from manual to automatic mode
● Allocation of an equipment phase
● Project setting "Transfer setpoints when switching from manual to automatic" is set to "No"
● Current batch status is "Completed" or "Continue"
● Equipment phase is in automatic mode
BATCH Control Center
9.8 Batch control
SIMATIC BATCH V8.2
438 Operating Manual, 02/2016, A5E35958174-AA
