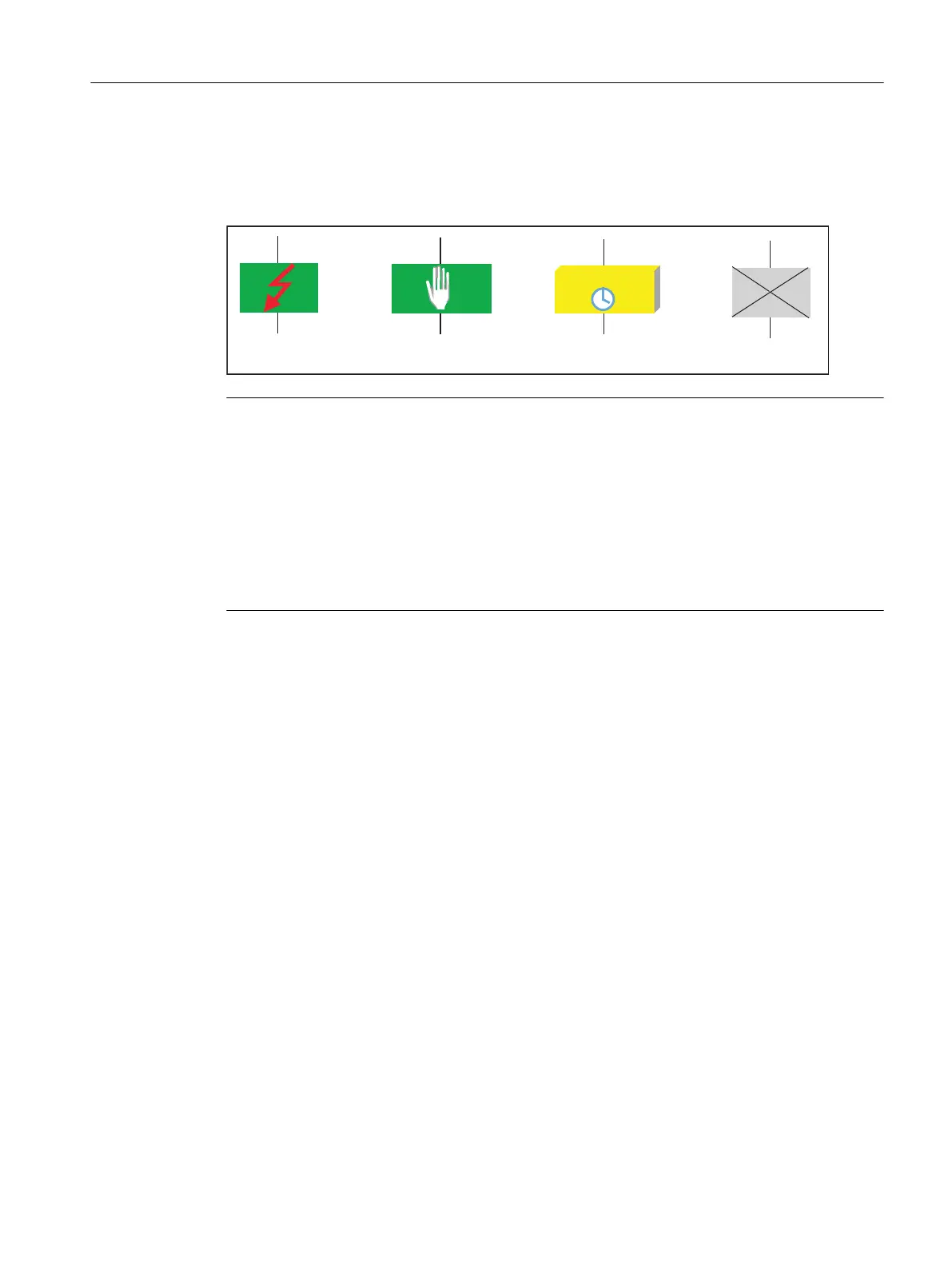

Additional status identifiers - error, manual, run time exceeded, deactivated
These symbols can be displayed superimposed on to one another (for example, error +
manual).
'HDFWLYDWHG
(UURU
0DQXDO
RSHUDWLRQ
5XQWLPHH[FHHGHG
+HDW
+HDW
+HDW
+HDW
Note
Note the following points about status visualization:
● If at least one recipe element in a level has the "running" status, the recipe elements of the
higher levels are also indicated as "running".
● If no recipe element is in the "running" status, the highest priority state is reported to the
higher levels. The only higher priority state reported is "Hold immediately".
● If a recipe element changes to the "Error" status, this state is reported to the higher levels
immediately. If the entire batch is to be discontinued, this must be aborted at the batch level.
You can change the colors with the menu command Options > Settings.
BATCH Control Center
9.8 Batch control
SIMATIC BATCH V8.2
Operating Manual, 02/2016, A5E35958174-AA 437
