Procedure in BatchCC
1. Select the production order in the "Orders" folder.
2. Select the menu item Edit > New.

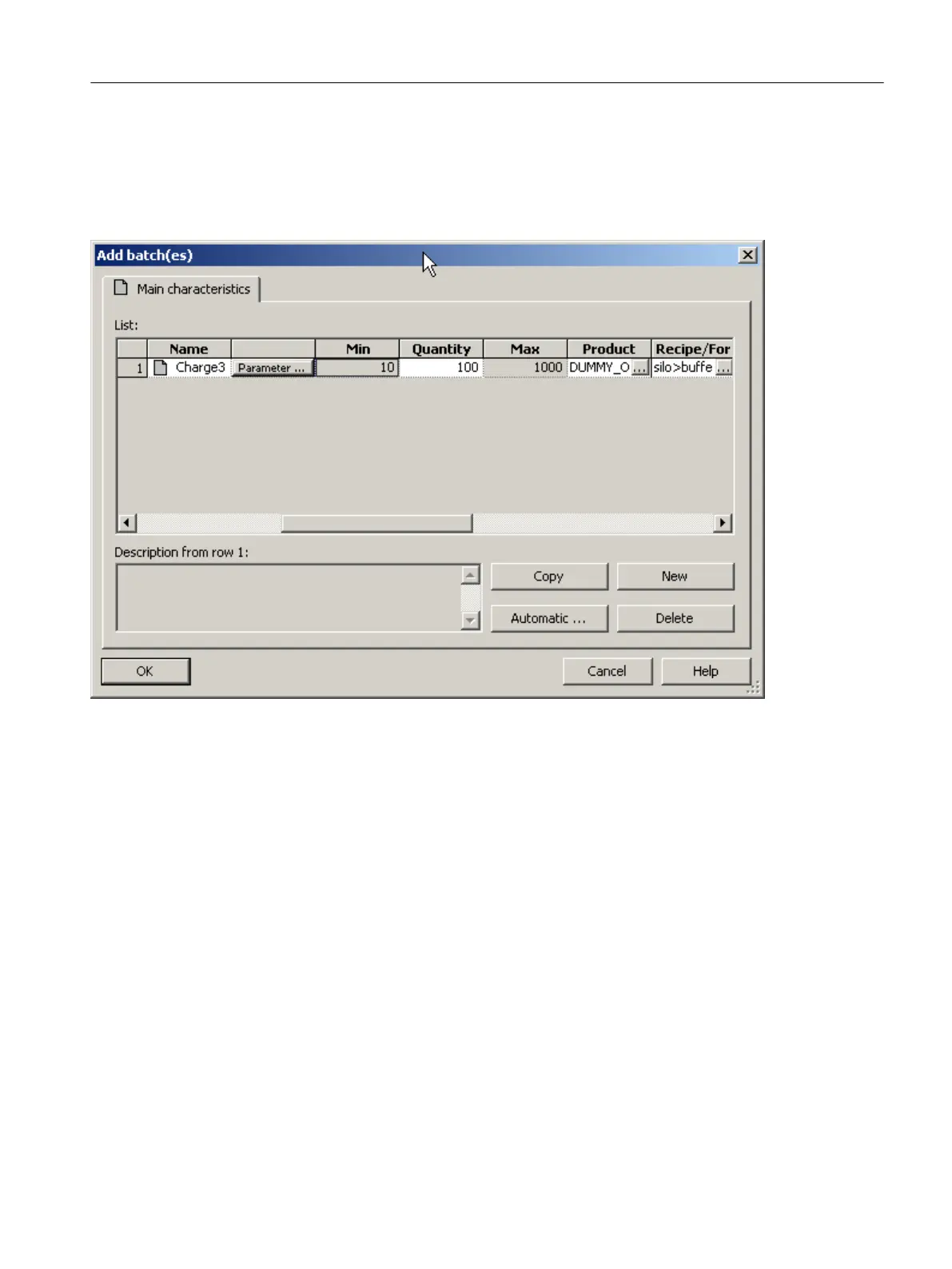

Result: The "Batches" properties dialog for the production order appears.
3. Follow the same procedure as described in the section "Assigning batches to a production
order" (Page 351).
See also
Overview lists (Page 259)
Releasing batches (Page 374)
Opening the control recipe for the batch (Page 371)
9.6.2.6 Specifying the properties of the batch
There are three ways in which you can specify the properties of batches:
● When creating a new production order: see section: Assigning batches to a production
order (Page 351).
● When supplementing a batch for the production order: see section Adding batches to a
production order (Page 354).
● Later for an existing batch. This option is described below.
BATCH Control Center
9.6 Batch Planning
SIMATIC BATCH V8.2
Operating Manual, 02/2016, A5E35958174-AA 355
