The batch runtime fits in the cycle
The batch needs a runtime of approx. 34 ms. If the "MaxCyclRun" parameter is set to a value
greater than or equal to 34 ms, the entire batch can be processed within one OB32 call. The
result can be seen in the following diagram. The status of all recipe elements is sent to the
BATCH control server within 34 ms via the direct communication channel of the BATCH control
server (BCS) and the AS.

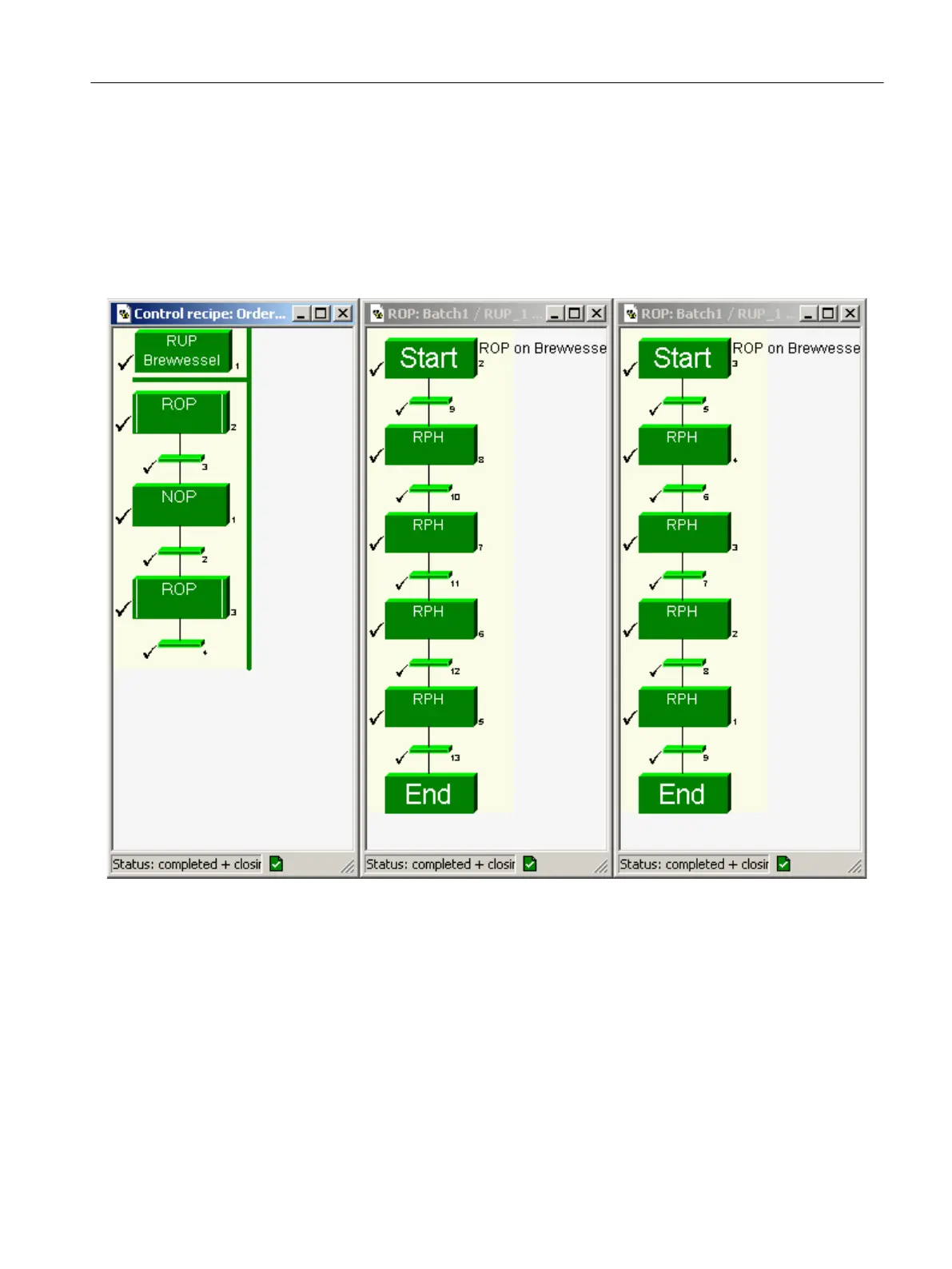

Image 9-13 Online view of the control recipe in the BCC, status completed and completing
BATCH Control Center
9.8 Batch control
SIMATIC BATCH V8.2
Operating Manual, 02/2016, A5E35958174-AA 385
