Entering properties

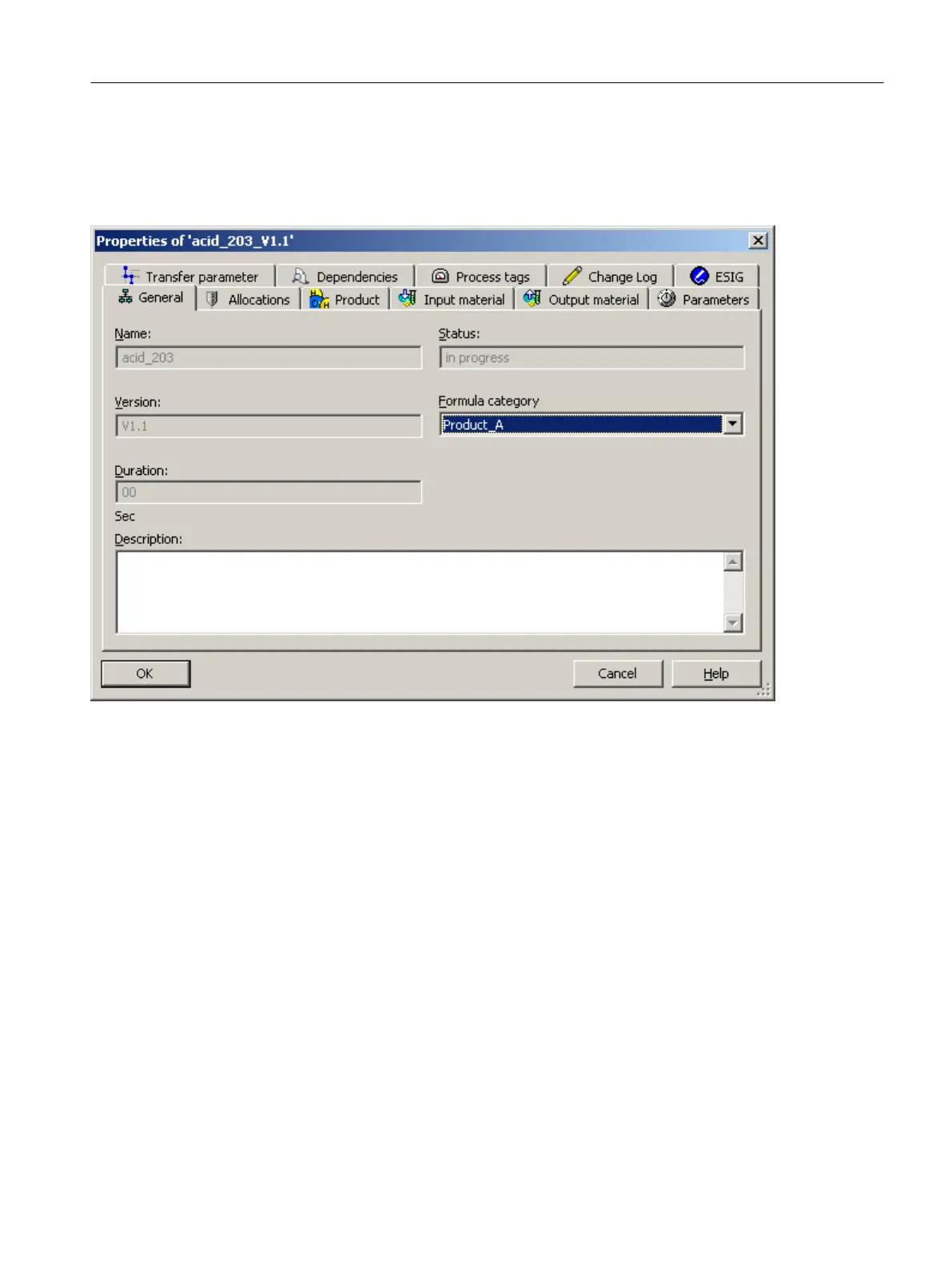

You enter the properties of the master recipes in the following tab dialog box. Click the "Help"
button for context-sensitive help on each individual input or output box in the tab.
Reference to formula category
With the "Formula category" input box in the "General" tab, you assign the formula category
with the required structure for material and production data (formula) to the master recipe. It
is assumed that the formula category has already been created.
See also section: Relationship between header parameters, formula category and formula
(Page 297)
Interconnecting parameters
After assigning the master recipe and formula category, the parameters still need to be
interconnected. After assigning a formula category to a master recipe you specify the reference
to the parameters in the formula category in the properties dialog ("input materials", "output
materials" and "parameters" tabs).
See also section: Interconnecting parameters between the master recipe and formula
(Page 307)
BATCH Control Center
9.5 Recipes
SIMATIC BATCH V8.2
Operating Manual, 02/2016, A5E35958174-AA 303
