Siemens SIMATIC BATCH

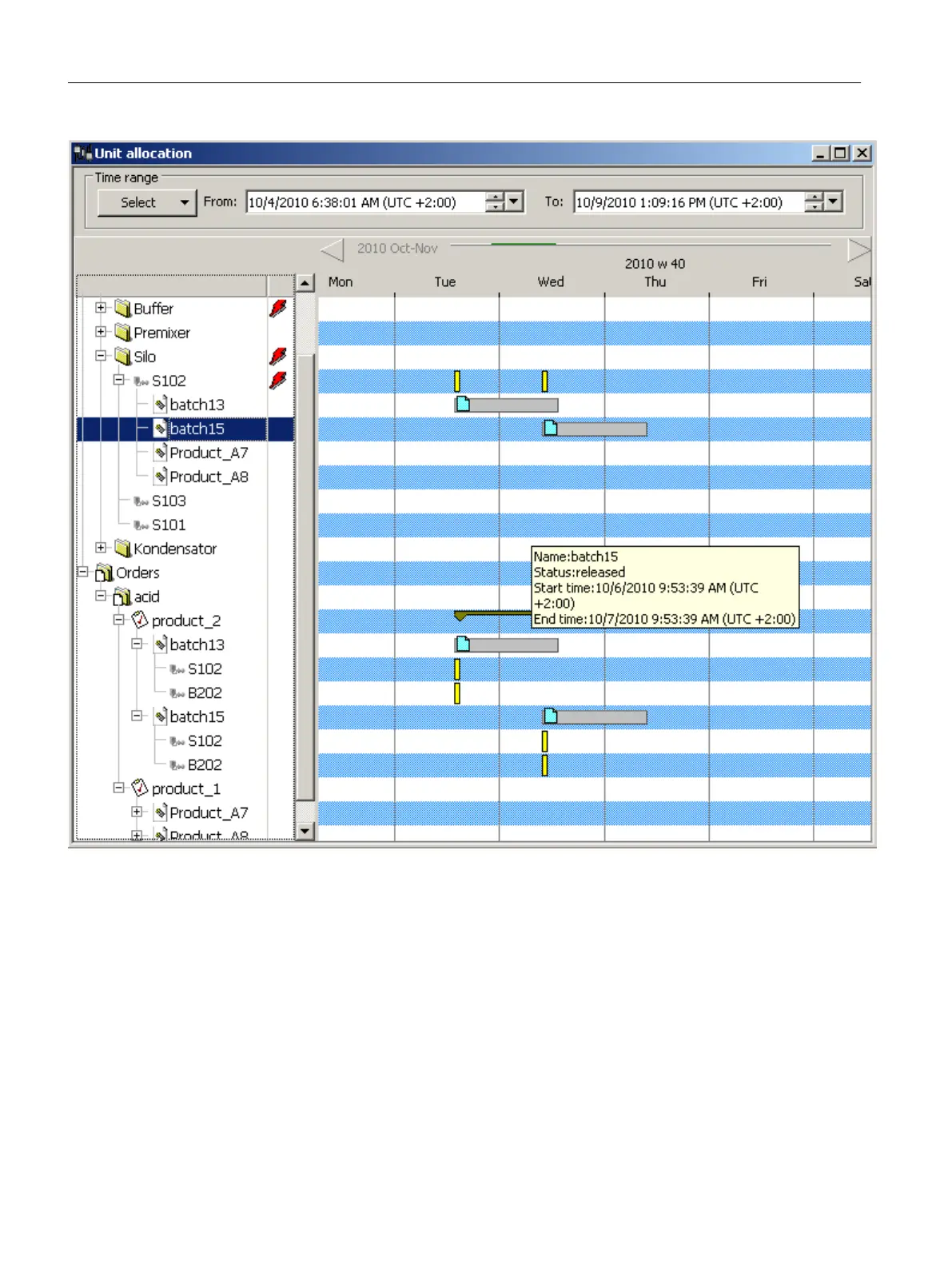

Meaning of the symbols
● Yellow bar: Unit without conflict
● Gray bar: Batches with a run time longer than six hours. The icon to the left of the bar
indicates the current status of the batch.
BATCH Control Center
9.6 Batch Planning
SIMATIC BATCH V8.2
364 Operating Manual, 02/2016, A5E35958174-AA
