What can be signed?
Operator action relating to BATCH objects such as batches, control recipes, unit recipes, recipe
operations, recipe phases and transitions
All the possible operator actions for the selected object are shown in the "ESIG" dialog box.
And you can only configure electronic signatures for the operator actions listed in the dialog.
The number and type of operator actions depend on the selected BATCH object.
Procedure
1. In the BatchCC, select the batch, the master recipe, or the library operation and then select
the Edit > Properties menu command or select the recipe procedure, the recipe unit
procedure, the recipe operation, the recipe phase, or the transition in the BATCH Recipe
Editor and then select the Edit > Object properties menu command.
Result: The "Properties of <objectname>" dialog box opens.

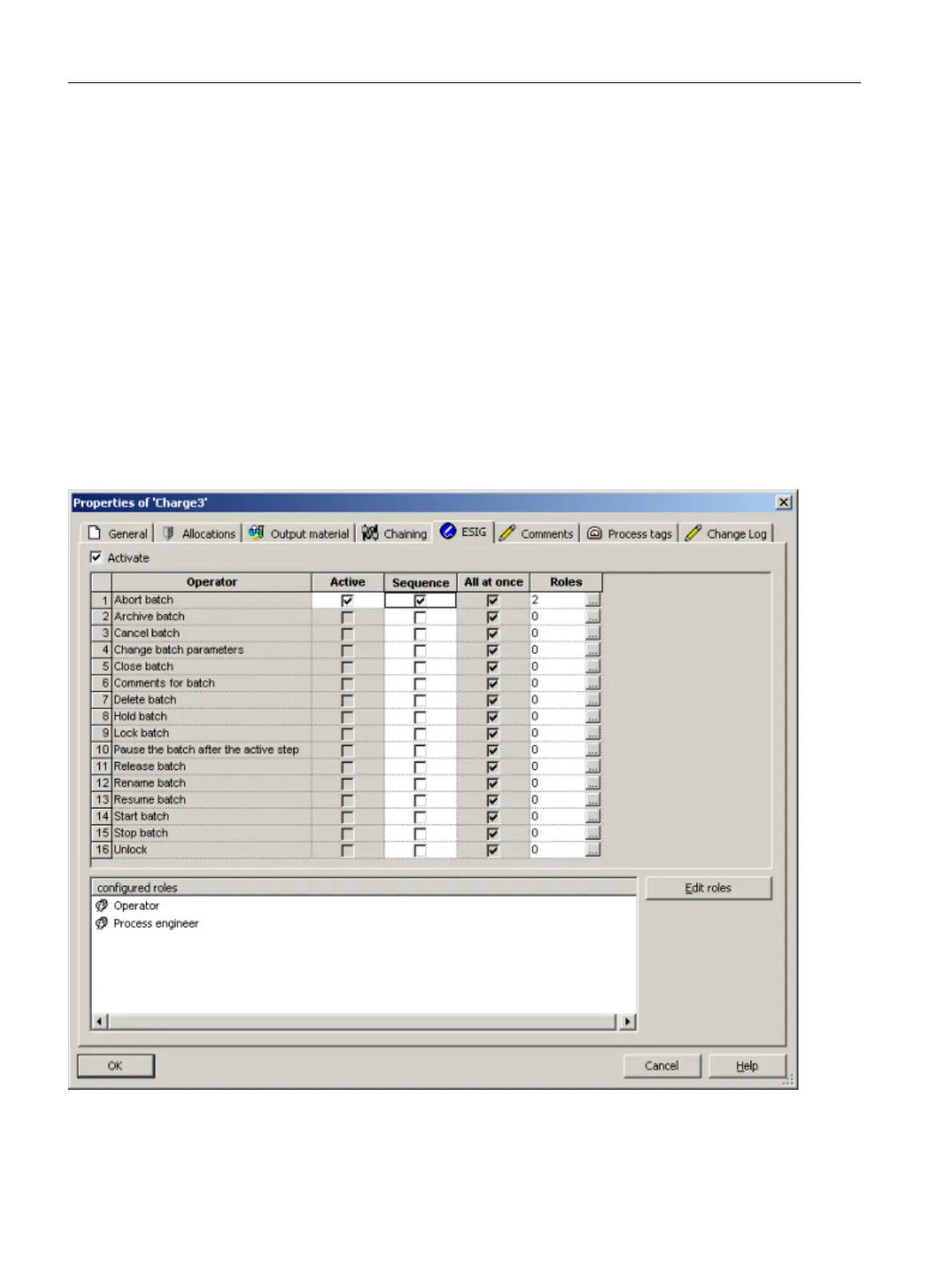

2. Change to the "ESIG" tab (in the figure below, this is for a batch) and select the "Activate"
check box. Result: A table with possible operator actions for the object is displayed.
BATCH Control Center
9.7 Electronic signature
SIMATIC BATCH V8.2
376 Operating Manual, 02/2016, A5E35958174-AA
