The start-up behavior after a CPU restart is determined by the two system settings at the SFC
instance:
● Initialise SFC
● Maintain SFC state

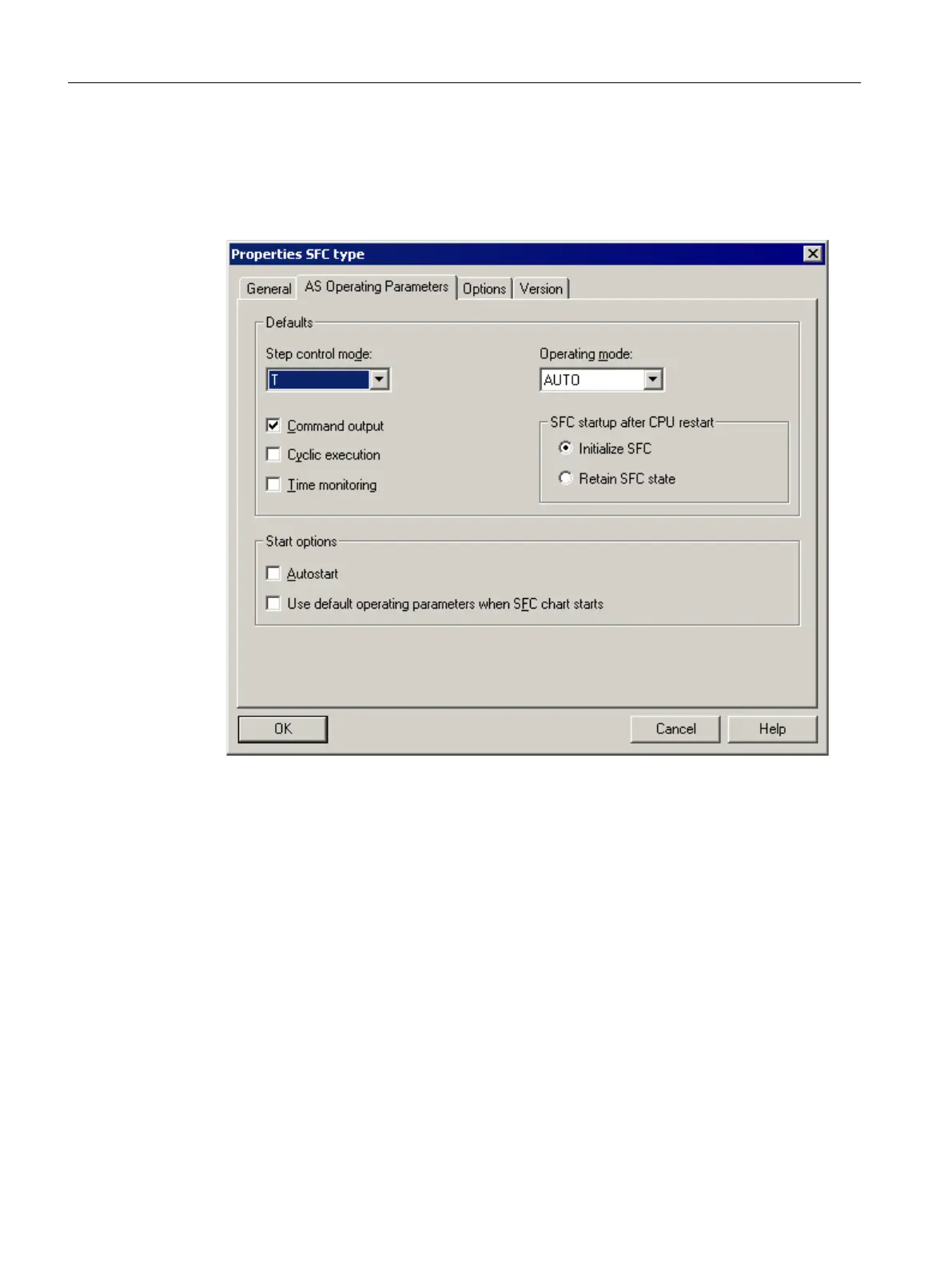

Image 9-20 Initialise SFC selected as setting
Properties of the SFC startup after a CPU restart: "Initialise SFC"
Scenario: There has been a CPU stop and the start-up behavior of the SFC is set to "Initialise
SFC". The SFC stops at the currently active step
Result: After a CPU restart, the SFC is initialised, i.e. the operating state is "Ready" (IDLE)
and all steps are initialised. The operating mode remains unchanged - AUTO or MANUAL.
In the "Ready" mode, only a start command can be issued; in the MANUAL mode, the "Start"
command or in the AUTO mode the start command from BATCH.
Operating SFC visualisation in the OS: A switch-over from AUTO mode to MANUAL mode is
required for manual operation. Only the "Start" function is possible. The SFC is once more run.
