Impact on the processing time and memory of the AS
The greater the number of currently active unit recipes on the AS, the less memory space or
processing time is available for the remaining automation tasks on the AS.
%$7&+&OLHQW

3&626&OLHQW
%$7&+
&RQWURO6HUYHU
3&6266HUYHU
$6
$6
%$7&+&OLHQW

3&626&OLHQW
%$7&+
&RQWURO6HUYHU

3&6266HUYHU
5HGXQGDQF\
RSWLRQDO
5HFLSH
ORJLF
5HFLSH
ORJLF
6,0$7,&%$7&+$6EDVHG6,0$7,&%$7&+3&EDVHG

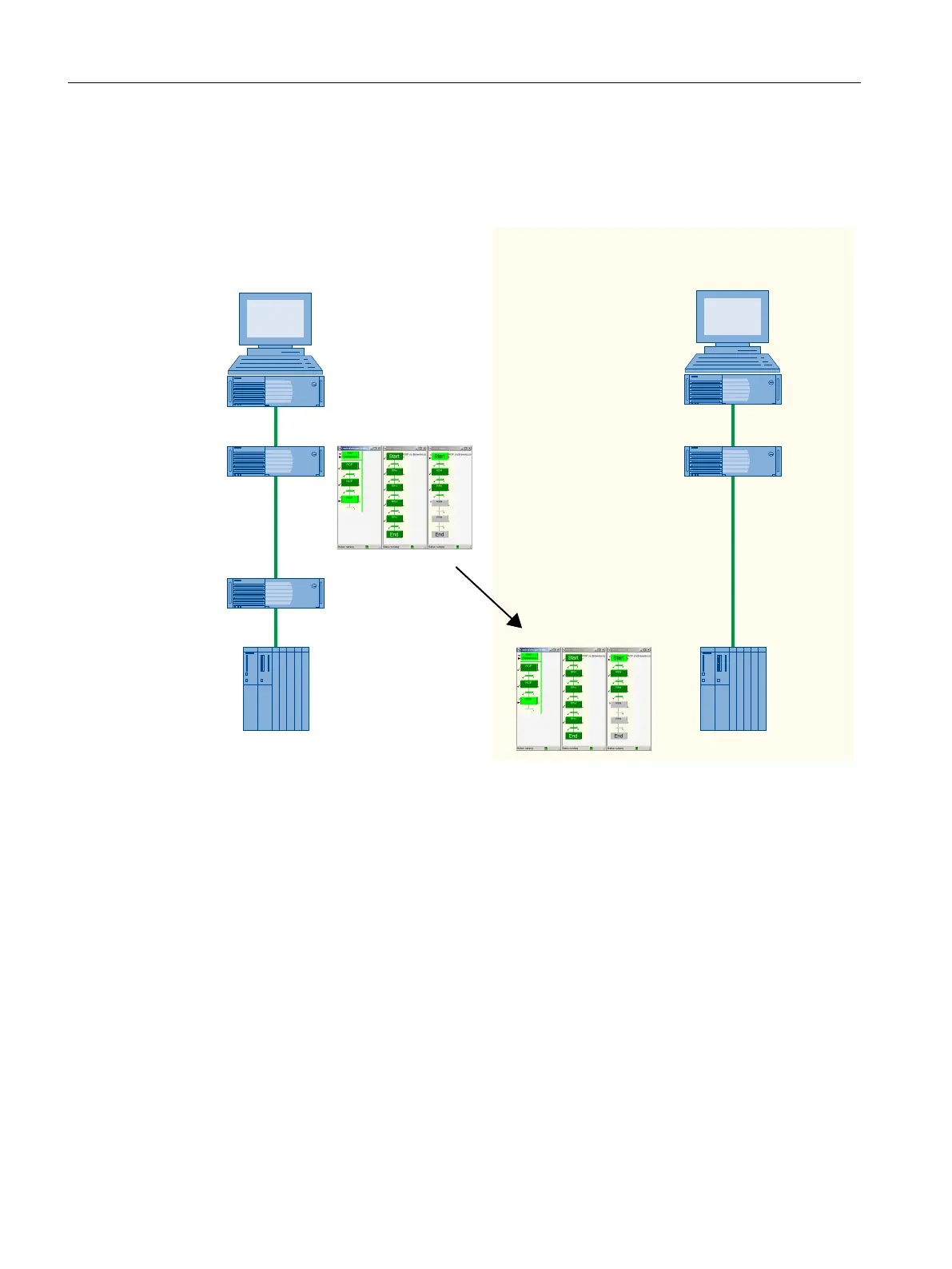

Image 3-2 Shifting the recipe logic
Operator control of the process on a PCS 7 OS using BATCH OS controls
To create and operate batches including visualization of the control recipes of currently running
batches, SIMATIC BATCH provides a template screen on a PCS 7 OS with all the necessary
BATCH OS controls.
Which recipe phases continue to be processed in the BATCH control server?
The following list shows all recipe phases that are still processed in the BATCH control server
in AS-based mode:
● Unit allocation (preferred unit, the longest out of use, operator selection and process
parameters)
● Synchronization lines between two units
