Image 9-26 "Archiving method" folder with PH
The names of the PH servers in the project settings dialog for SIMATIC BATCH correspond
to the computer names that were entered in the "Properties - SIMATIC PC station" dialog in
SIMATIC PCS 7.

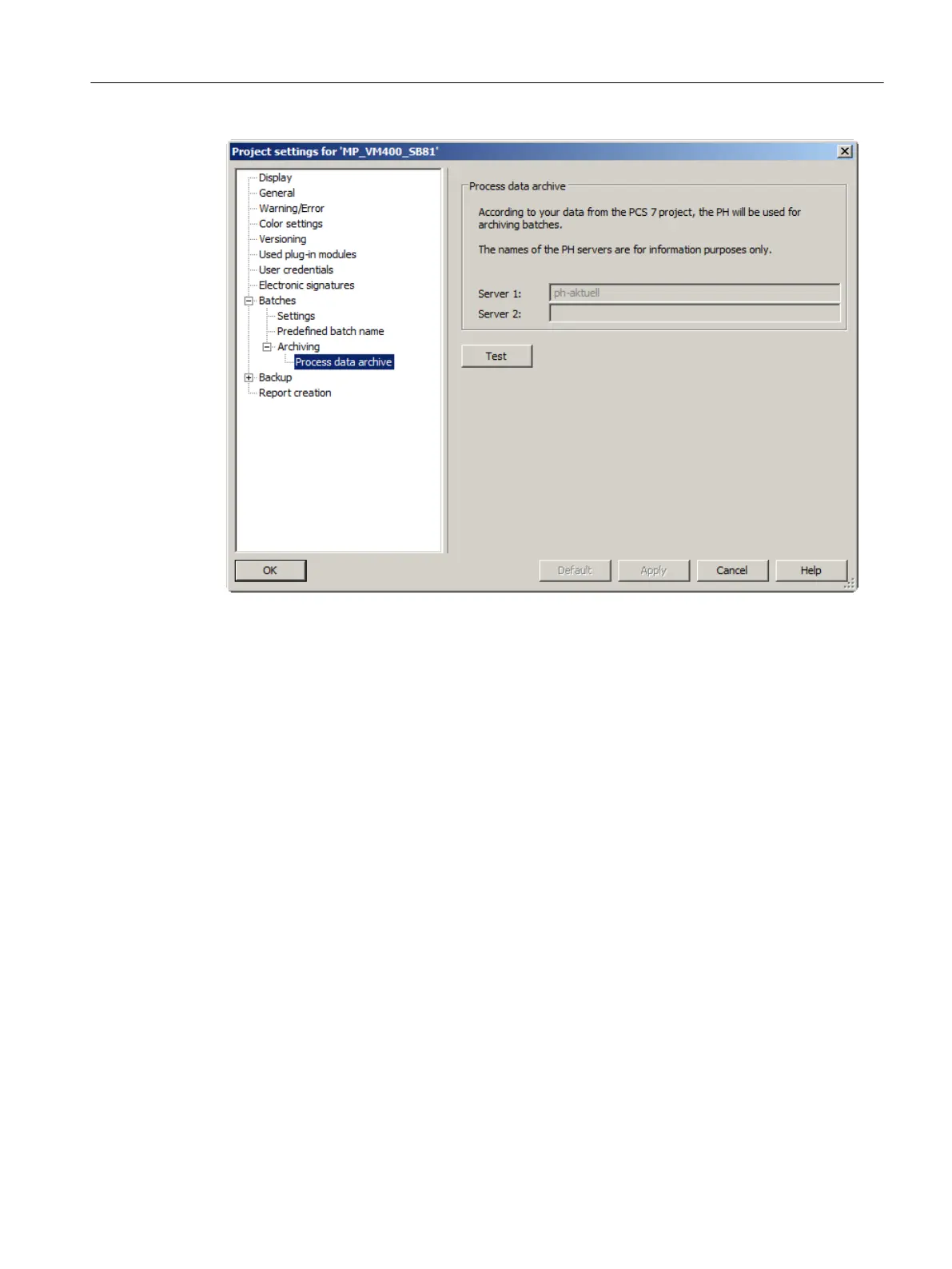

Project settings for the "PH" archiving method
Since all necessary entries have been made internally in the system following the actions listed,
manual reconfiguration is not necessary. The "Test" button is used to check the connection to
the PH. If a "PH" is selected due to the configuration in the SIMATIC Manager, no other
archiving method is possible.
To be able to start a batch report and the batch print preview in the BatchCC, the URL address
of the Information Server (IS) is entered in the following configuration dialog.
BATCH Control Center
9.9 Report creation and archiving of batch data
SIMATIC BATCH V8.2
Operating Manual, 02/2016, A5E35958174-AA 473
