"Operator Selection" strategy
If the "Operator selection" strategy is configured, a status symbol is set at the recipe step
(visible in the open control recipe) as soon as SIMATIC BATCH wants to use a unit.

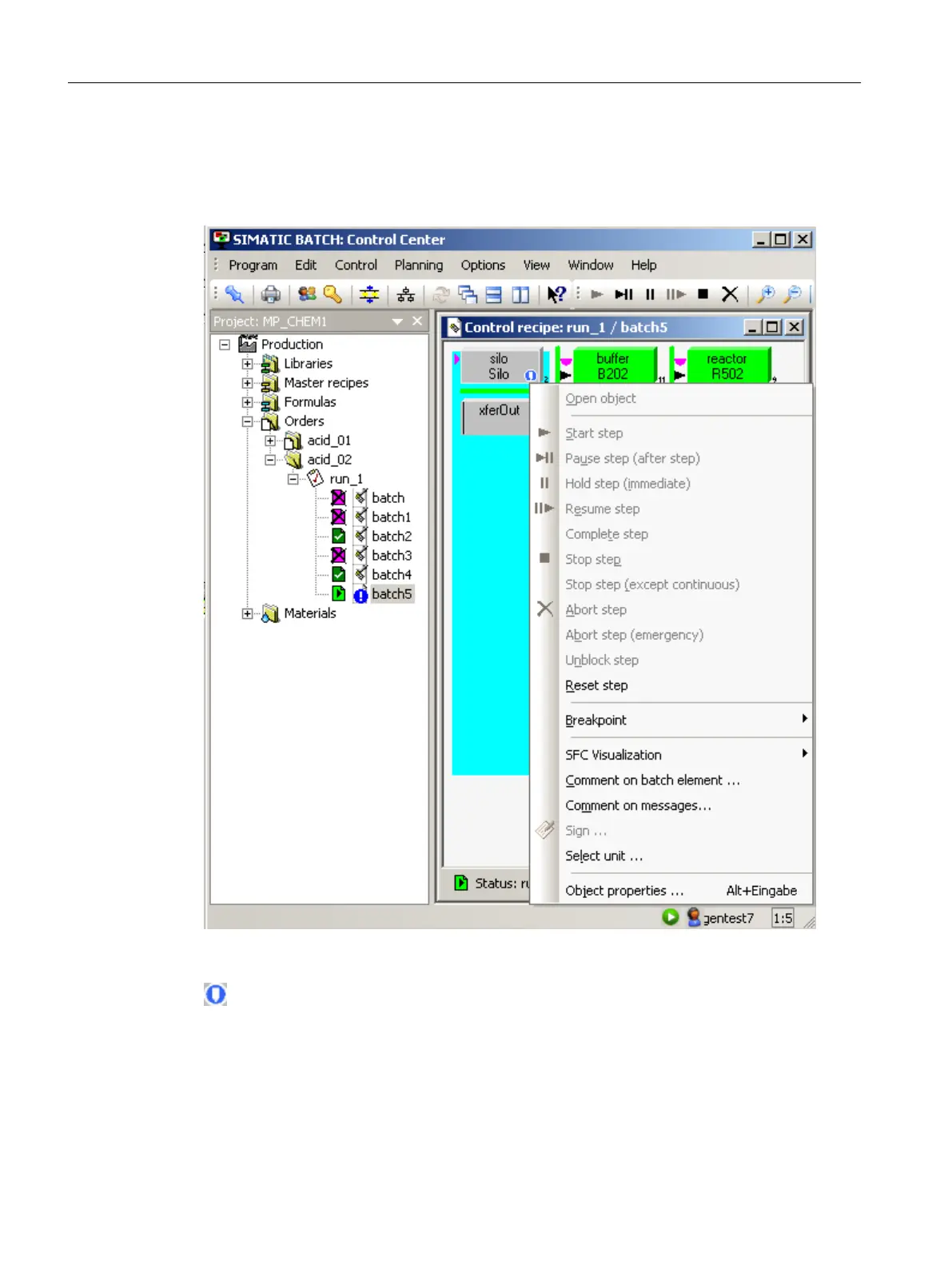

Image 10-6 Strategy operator selection of the unit
Image 10-7 Allocation of the unit by operator selection
After selecting the recipe unit procedure (with a hierarchical recipe) or the recipe phase (with
a flat recipe) with the status symbol, you can select the required unit with the "Select unit"
shortcut menu command.
BATCH Recipe Editor
10.4 Creating recipes
SIMATIC BATCH V8.2
530 Operating Manual, 02/2016, A5E35958174-AA
