Example recipe

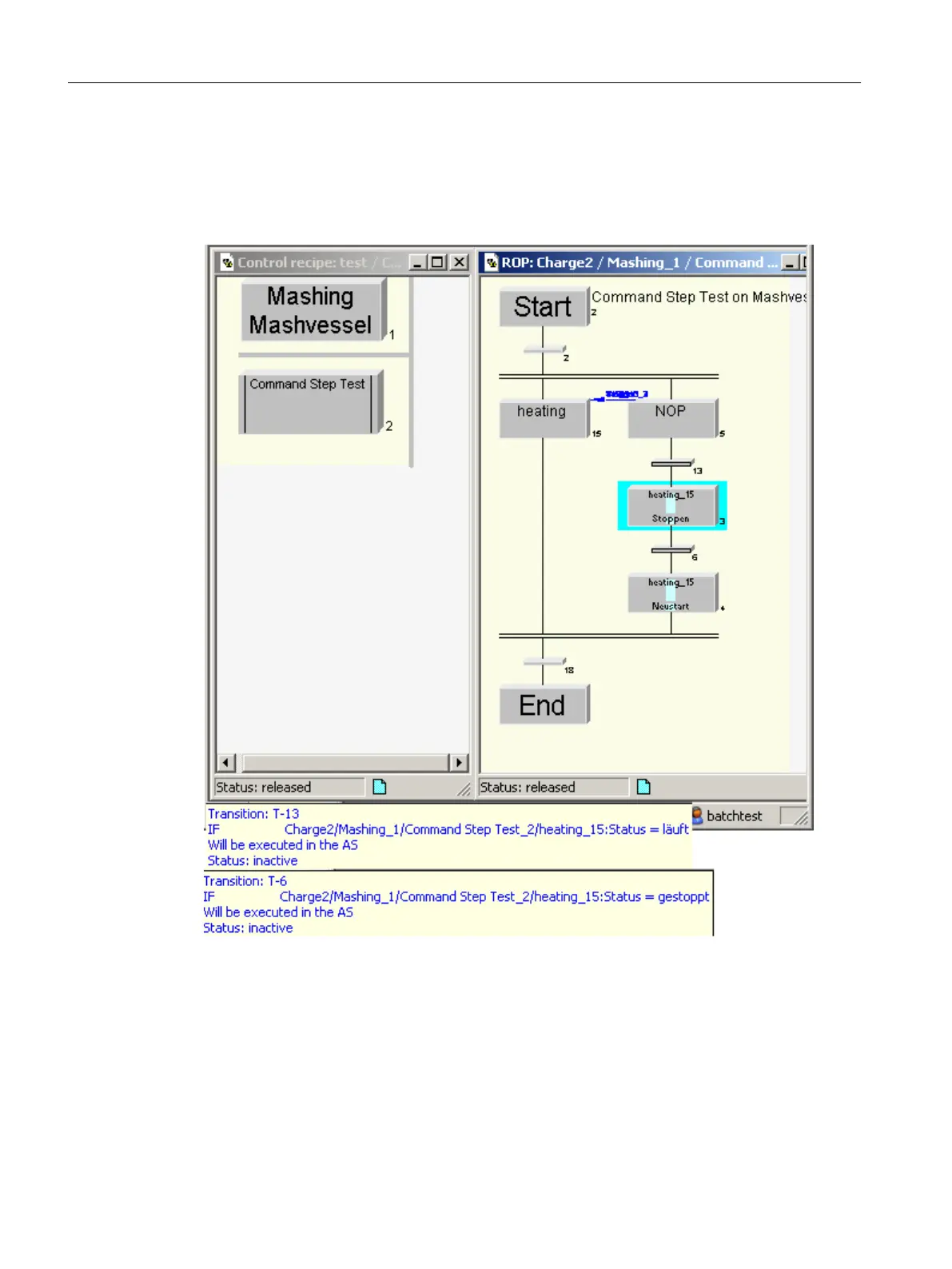

We provide an example recipe to show you how to configure two command steps with the Stop
and Restart commands. The figure shows an example recipe after it has been configured in
the RE. The required functionality will now be added to this recipe.
Configuration in the RE
The following describes how to configure the command steps.
1. Edit transition 13. The transition contains a process condition intended to stop the "heating"
recipe phase for example.
2. Insert a command step after transition 13 in the simultaneous branch.
BATCH Recipe Editor
10.4 Creating recipes
SIMATIC BATCH V8.2
538 Operating Manual, 02/2016, A5E35958174-AA
