What is displayed in the dialog?
The dialog displays assignments of process cell objects. Process cell objects of the process
cell you have selected are loaded by the system from the relevant database and compared
with the process cell objects from the current engineering in the dialog.
What operator actions must be taken?
If you have made changes or expansions in the basic engineering, these must be synchronized
or updated in the database. During the synchronization, the system automatically makes and
displays assignments. These need to be checked and, if necessary, modified and then applied.
When you exit the dialog with the "OK" button, the displayed or set object assignments are
adopted in the database of the new process cell and the old assignments are overwritten.
How is the information displayed and used in the dialog?

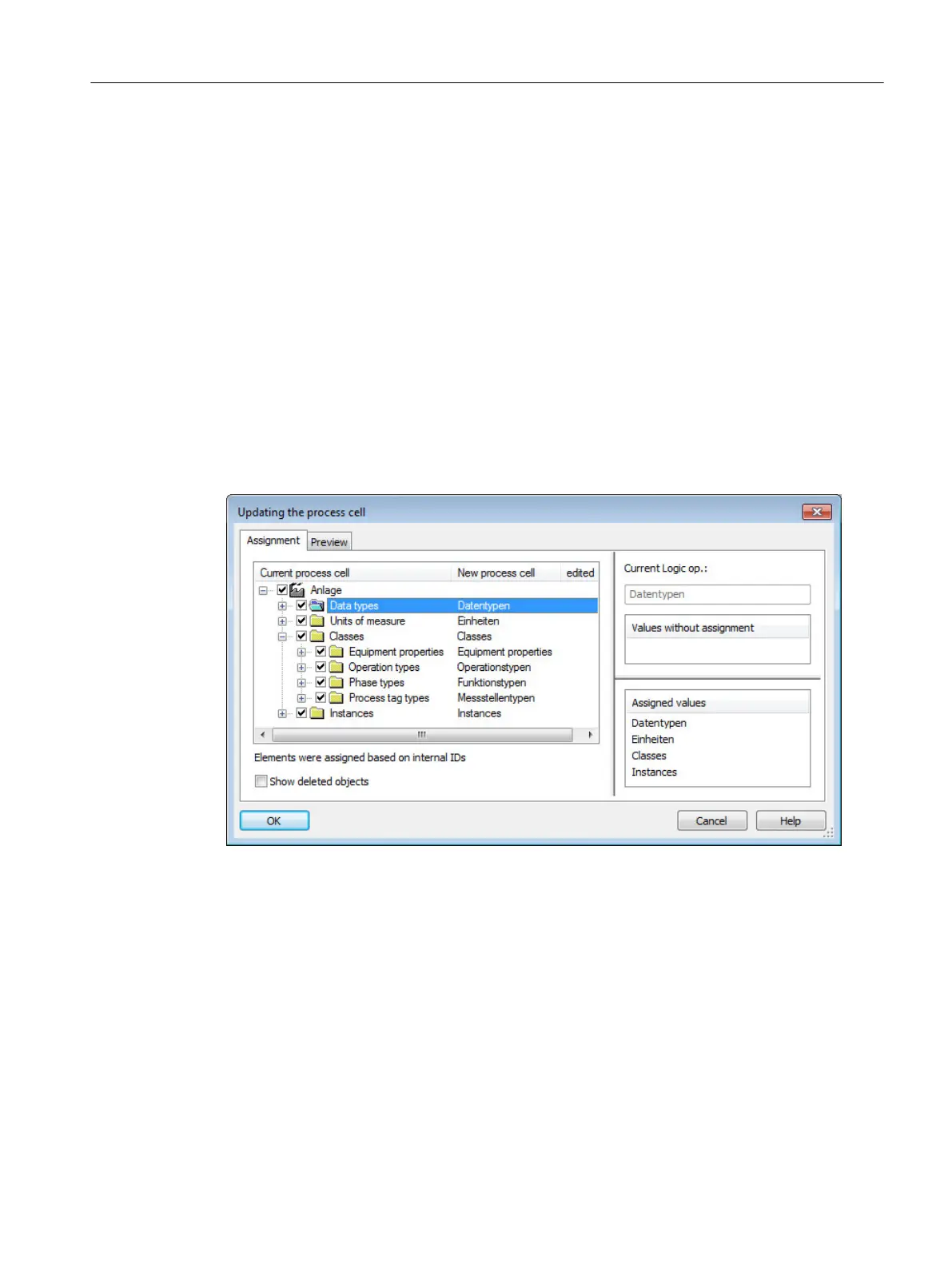

The object assignments are displayed in three windows.
In the left-hand window, you can see all the assignment objects in the "Current process cell"
table column in which you can navigate. These are process cell objects from the process cell
database. The "New process cell" table column displays the process cell objects from the basic
engineering and their assignment for every object in the "Current process cell" column. A cross
is displayed in the "edited" table column if you have changed an assignment. Each process
Context help references
14.1 Dialogs
SIMATIC BATCH V8.2
Operating Manual, 02/2016, A5E35958174-AA 801
