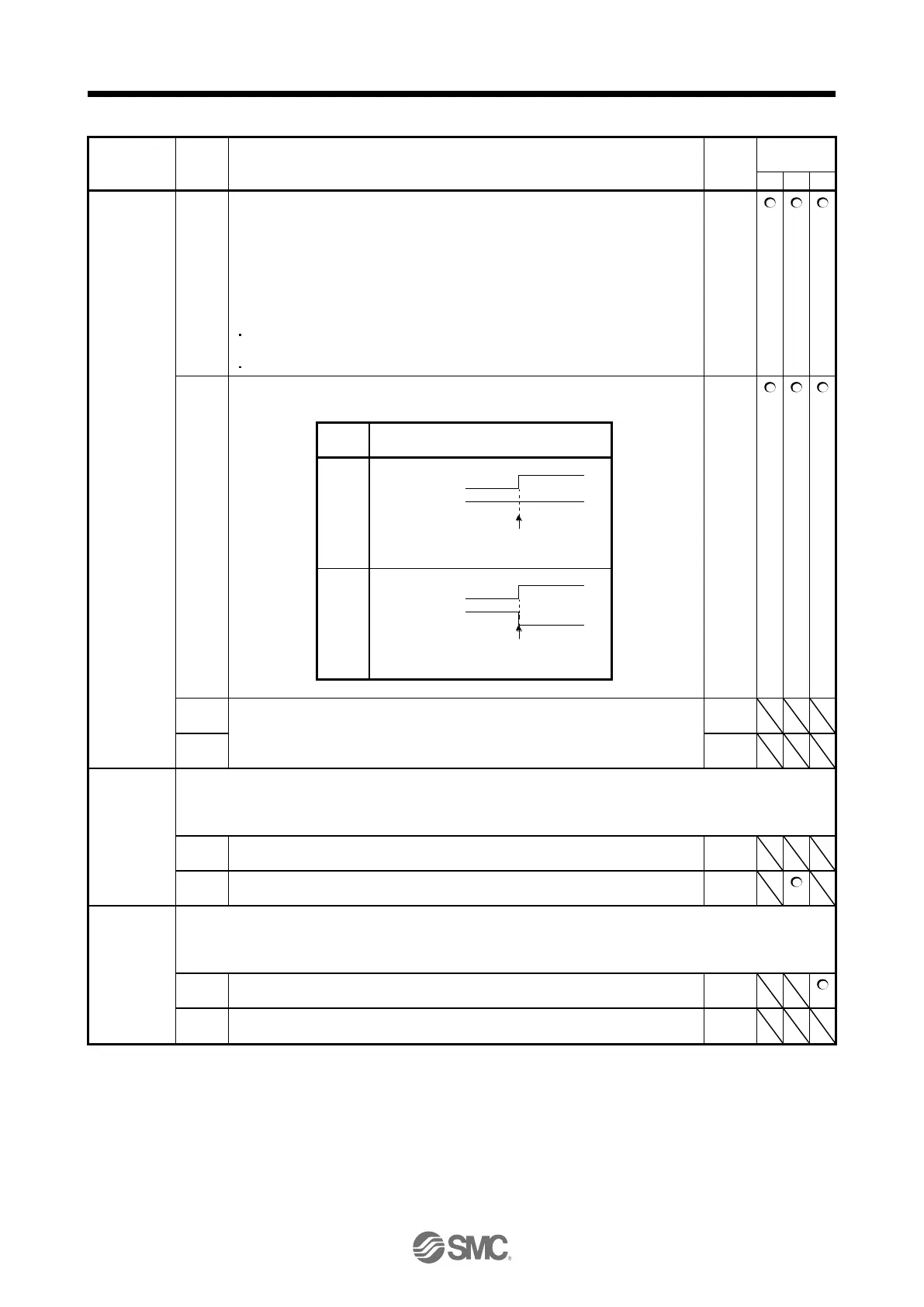

5. PARAMETERS
5 - 58
No./symbol/
name
Setting
digit
Function
Initial
value
[unit]
Control
mode
P
S
T
PD34
*DOP5
Function
selection D-5
_ _ _ x
Alarm code output
Select output status of alarm codes.
Alarm codes are outputted to the pins CN1-22, CN1-23, and CN1-24.
0: Disabled
1: Enabled
For details of the alarm codes, refer to chapter 8.
When "1" is set for this digit, setting the following will trigger [AL. 37 Parameter
error].
"_ _ _ 1" is set in [Pr. PA03] and the absolute position detection system by DIO is
selected.
MBR, DB, or ALM is assigned to the CN1-22 pin, CN1-23 pin, or CN1-24 pin.
0h
_ _ x _
Selection of output device at warning occurrence
Select ALM (Malfunction) output status at warning occurrence.
0h
Setting
value
Device status
0
OFF
ON
OFF
ON
WNG
ALM
Warning occurrence
1
OFF
ON
OFF
ON
WNG
ALM
Warning occurrence
_ x _ _
For manufacturer setting
0h
x _ _ _
0h
PD43
*DI11L
Input device
selection 11L
Any input device can be assigned to the CN1-10 pin/CN1-37 pin.
Setting "00" will assign PP/PP2 (forward rotation pulse).
_ _ x x
Position control mode - Device selection
The setting is disabled.
00h
x x _ _
Speed control mode - Device selection
Refer to table 5.10 in [Pr. PD03] for settings.
00h
PD44
*DI11H
Input device
selection 11H
Any input device can be assigned to the CN1-10 pin/CN1-37 pin.
Setting "00" will assign PP/PP2 (forward rotation pulse).
_ _ x x
Torque control mode - Device selection
Refer to table 5.10 in [Pr. PD03] for settings.
00h
x x _ _
For manufacturer setting
3Ah
