16. POSITIONING MODE
(f) External pulse count (COUNT)
When the number of input pulses of the manual pulse generator becomes larger than the value set
for the "COUNT" command, the next step is executed. Setting "0" clears cumulative input pulses.
Command
Description
COUNT (500)
Wait for the next step until the number of input pulses of the manual pulse generator reaches 500
[pulse]. a)
SPN (500)
Servo motor speed
500 [r/min]
STA (200)
Acceleration time constant
200 [ms]
STB (300)
Deceleration time constant
300 [ms]
MOV (1000)
Absolute value travel command
1000 [×10
STM
μm]
TRIP (500)
Trip point specification
500 [×10
STM
μm]
b)
COUNT (0)
Clear cumulative input pulses.
c)
STOP
Program stop
c) Clear cumulative input pulses.
b) 500 [×10
STM
μ
m]

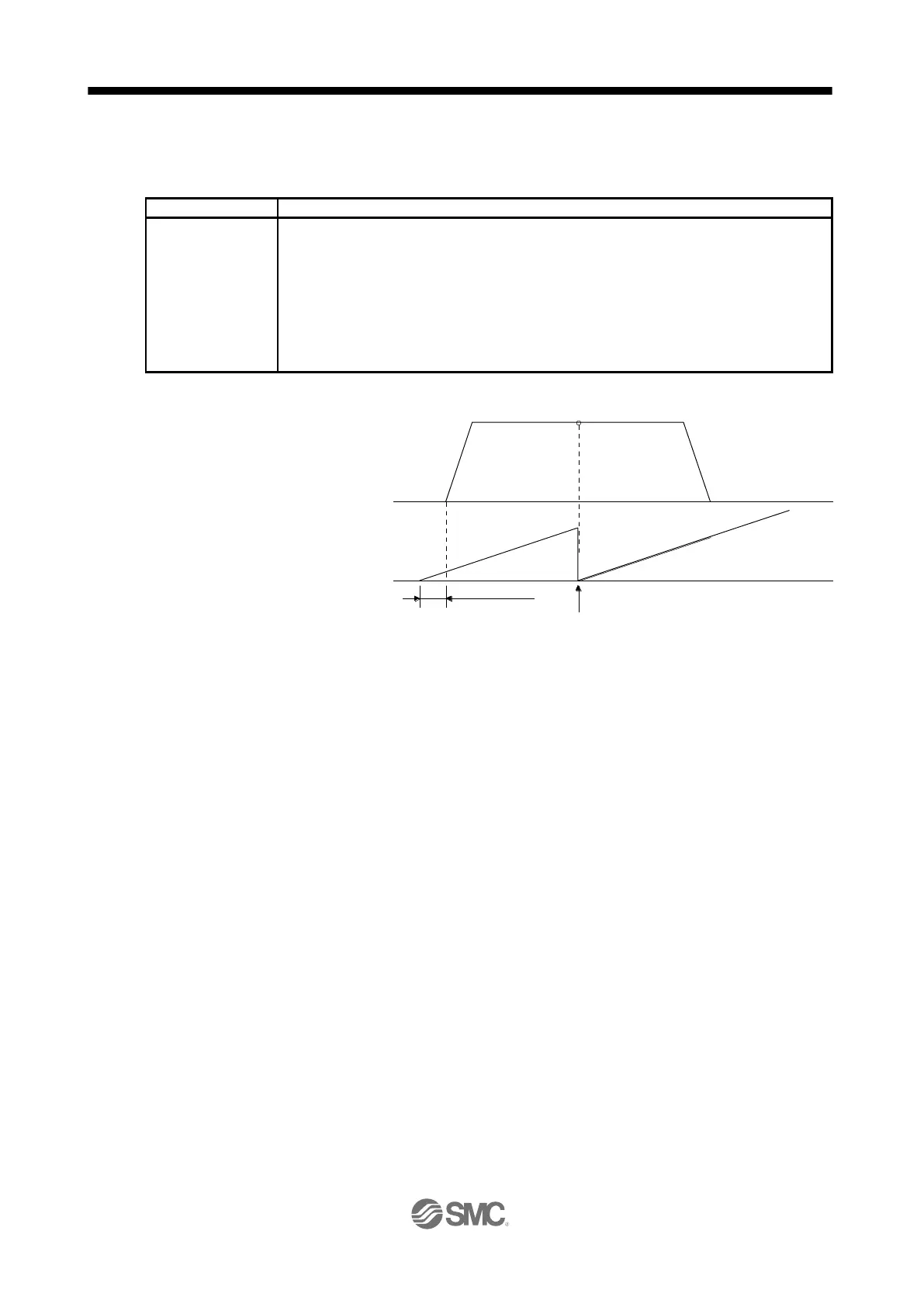

Manual pulse generator
Cumulative input pulses
a) 500 [pulse]
Servo motor speed
Forward rotation
0 r/min
Reverse rotation
