APPENDIX

App. - 29

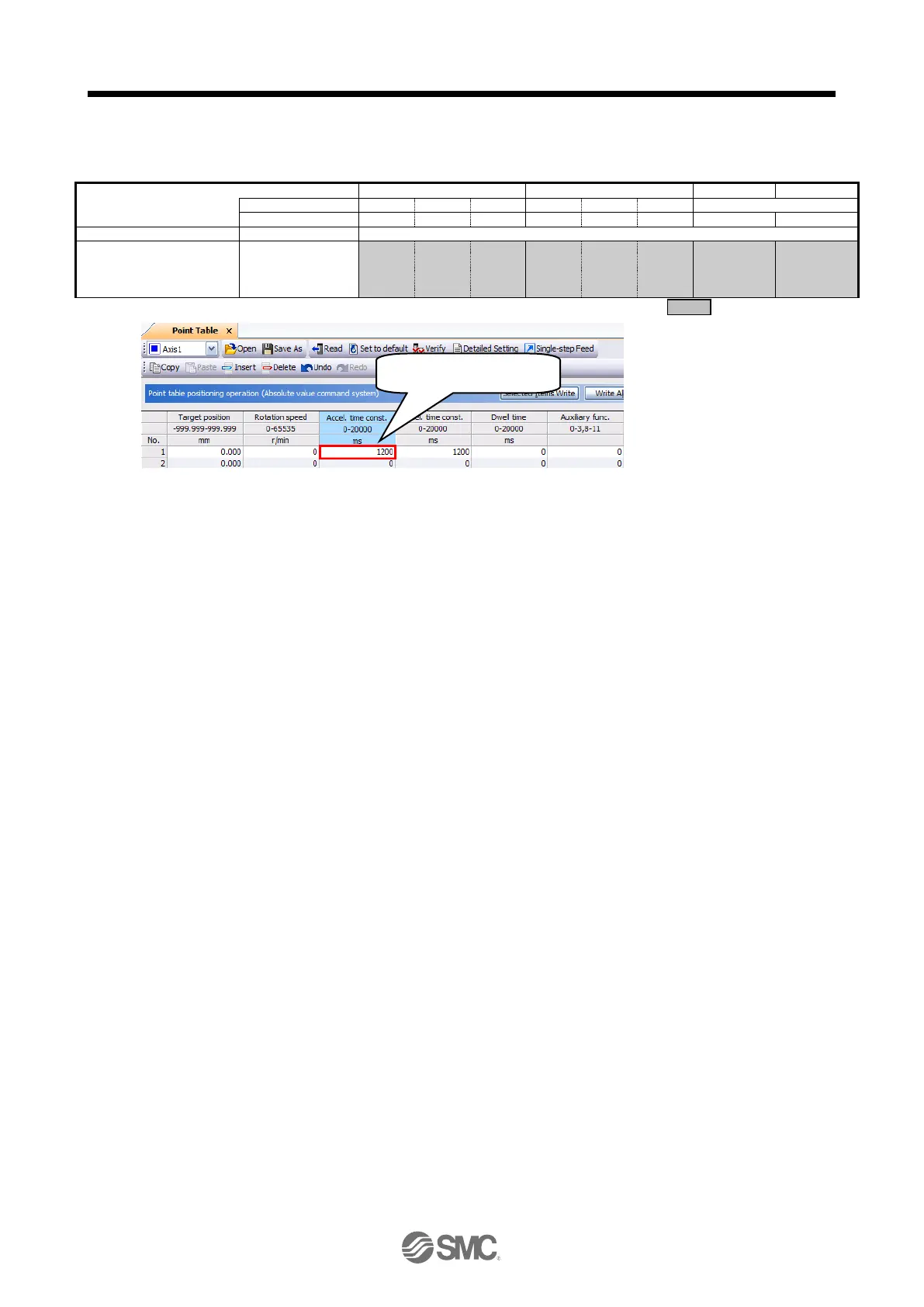

Recommended Value of acceleration time constant of Point table No.1

[LEJ]

Series

LEJS40

LEJS63

LEJB40

LEJB63

Lead symbol

Lead

Point table No.1

Initial value

Recommended value

Home position return

acceleration time constant

(msec) *4

1200

800

400

1500

1000

500

1350

2100

Differs to initial value

*4. Use the acceleration time constant of Point table No.1 as the acceleration time constant (msec) of

Home position return. Set the recommended value in the above figure..

1200 for LEJS40 H Lead
