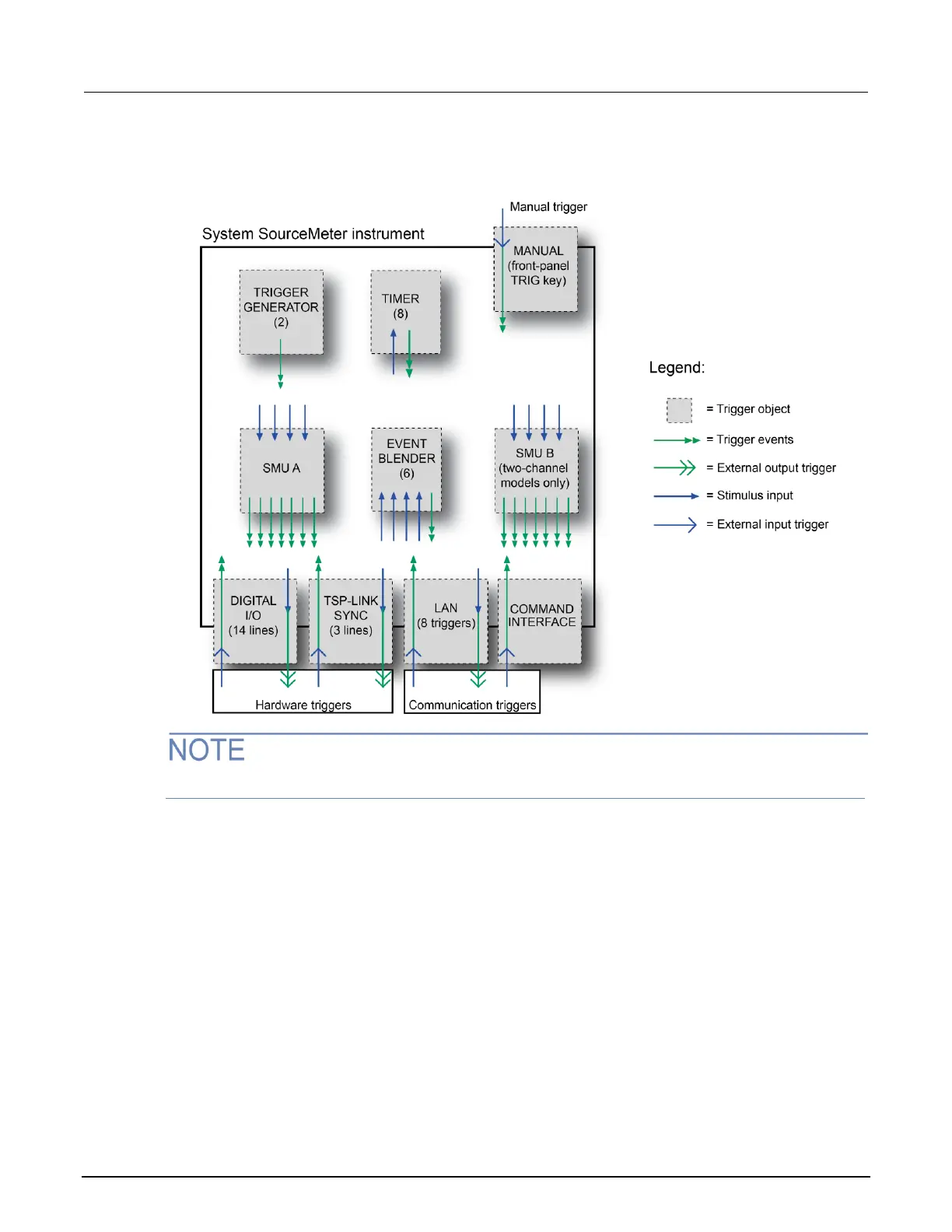

The following figure graphically represents all the trigger objects of the 2600B instrument.
Figure 33: Triggering overview
The Models 2604B, 2614B, and 2634B do not have digital I/O lines or TSP-Link.
